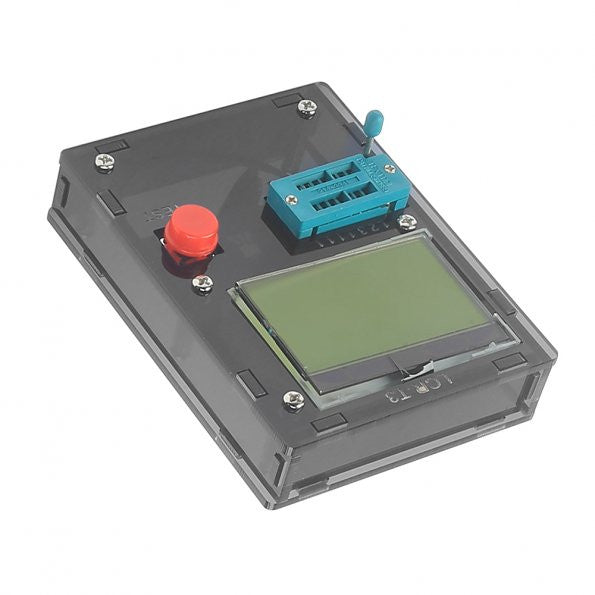

SainSmart 12864 Pocketable Transistor Tester Capacitance ESR Diode Triode Triac MOS Meter LCR-T3 Blackbrand: SainSmart SKU: 101-92-141
- Can detect bipolar transistors and MOS transistors protection diodes.
- Can simultaneously measure two resistors and resistor symbol is displayed.
- Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage.
- can be obtained with a single measurement rectifier bridge connection.
- Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor.
- Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
- Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured .
- Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF.
- 2uF more capacitors can simultaneously measure the equivalent series resistance ESR values. The two can be displayed with a decimal value , resolution 0.01 ohms.
- LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes.
- Eeverse breakdown voltage is less than 4.5V Zener diode can be identified.
- Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin , it can measure the collector or emitter junction reverse capacitance .
WHAT'S IN THE PACKAGE
- 1 X 12864 Transistor Tester (not include the battery)
Note: Before measuring capacitance , the capacitor must be discharged , otherwise very likely damage the meter.
