[Discontinued] SainSmart 3.2" TFT LCD Module 320*240 Touch Screen Display for Raspberry Pi

SKU: 20-111-971 Variants ID: 45101207700
$21.99


Description:

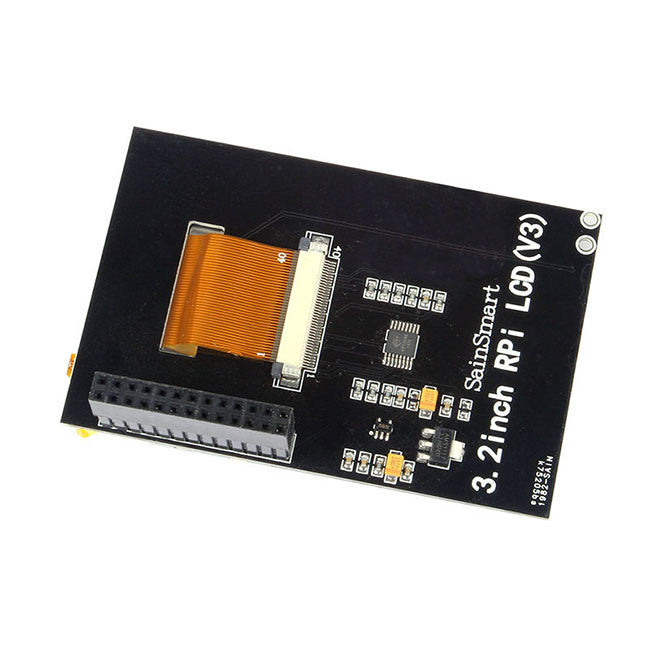

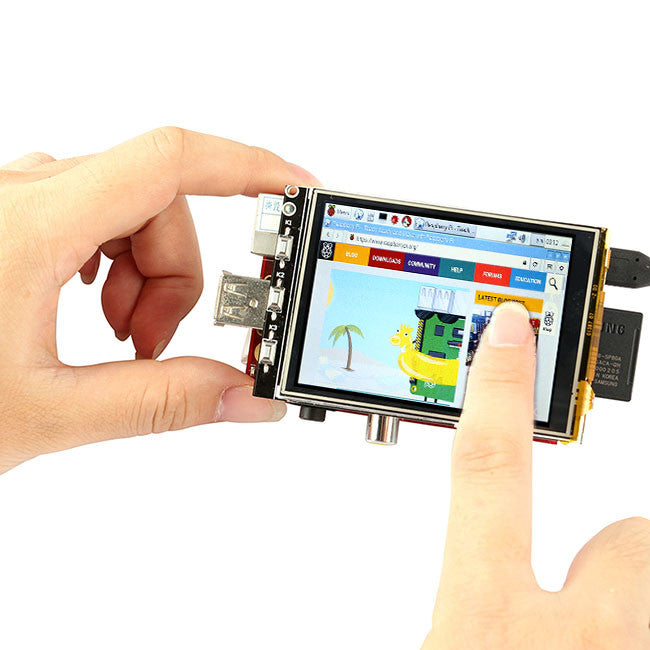

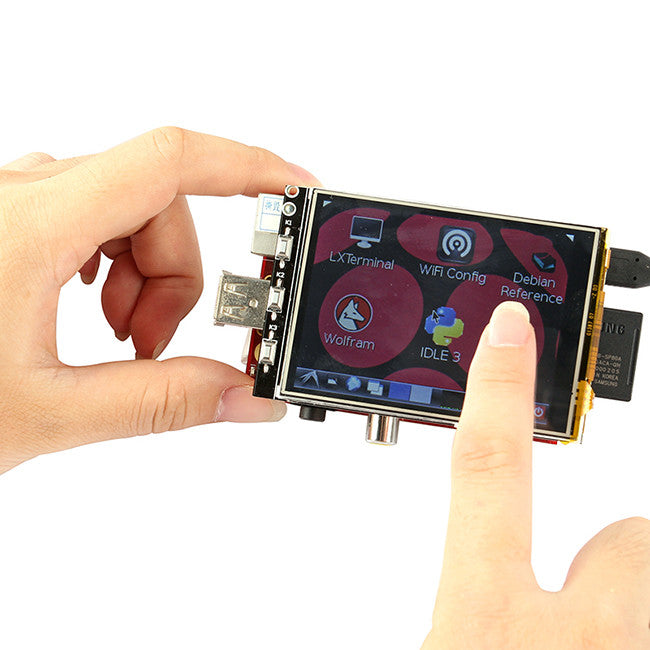

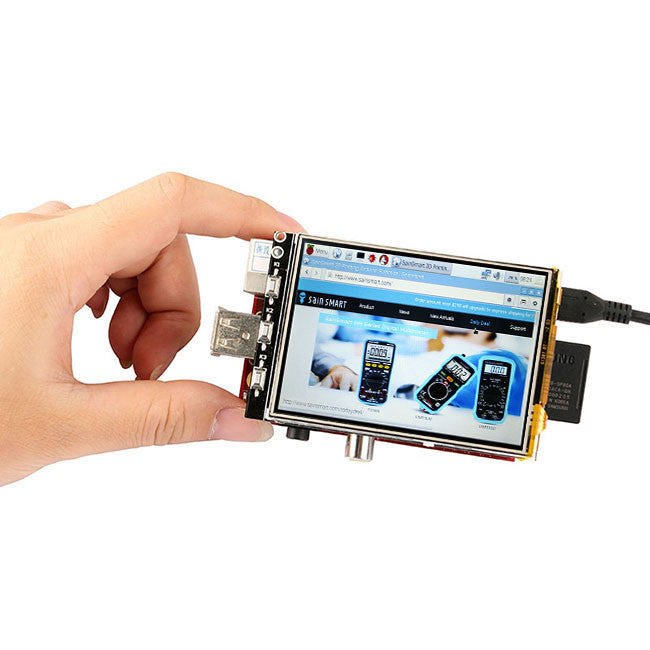

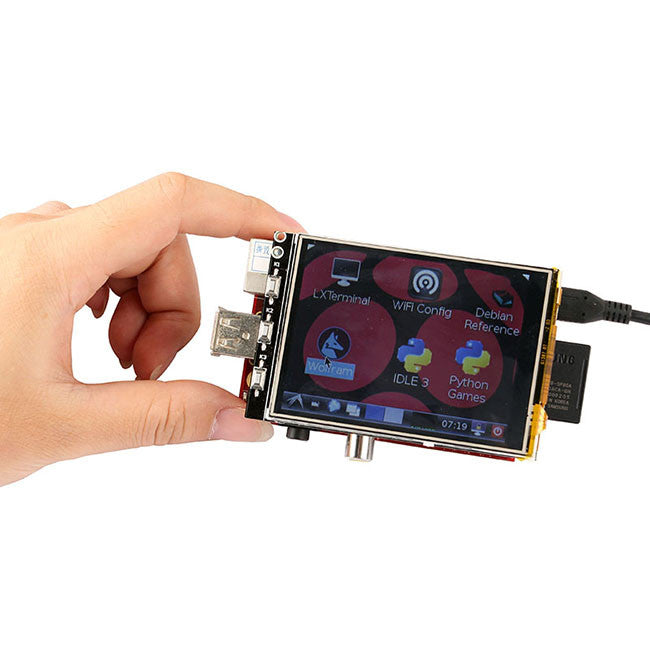

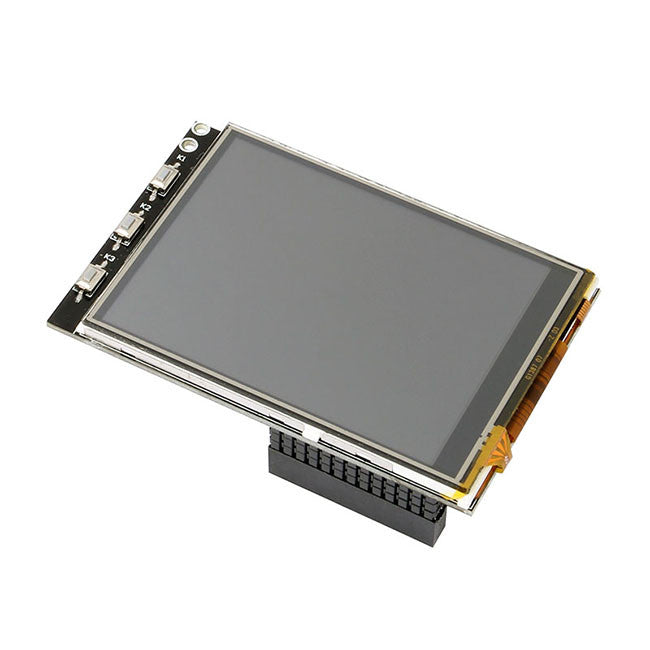

The 3.2 inch TFT LCD module is a special design for Raspberry Pi for portable application. It features a 3.2�display with 320x240 16bit color pixels and resistive touch screen. The LCD is well mated with Pi board and interface with Pi via the high speed SPI port, and support console, X windows, displaying images or video etc. It also provides 4 press buttons for user defined functions.



Features:

  • 3.2â€?inch TFT LCD screen
  • Resistive touch panel
  • 4 user defined press buttons
  • Well mate with Raspberry Pi Model B+ Board
  • FBTFT graphic library support
  • Both command console and X window support
  • Mounted directly, no need of any extended shield



Note:

  • The LCD display model Could be mounted on the Raspbery pi B or B + motherboard Directly, you do not need any extended shields.
  • We have our own professional technical team services for customers, if you have any questions, please feel free to contact us.
  • We have some demo project files for debugging, if you need it, You Could contact us?
  • Our Raspberry Pi team have therefore developed a lot of accessories for Pi, if you need it, please search from our store. All of our products you purchased from our store will be followed by our technical team and services.



Specifications:

LCD Size

3.2″ inches (display area : 66mm x 49mm)

LCD Resolution

320 x 240 RGB565

Video output

SPI

Video controller

ILI9341

Touch panel type

Resistive

Touch panel output

SPI + 1 interrupt

Touch controller

Texas Instruments TSC2046

Additional features

3 GPIO buttons

Powering

3.3 / 5V via GPIO header

Size

86mm x 51mm x 25mm (including pin header extrusion)



Pinout:

Display module GPIO

Raspberry Pi GPIO

LCD_MOSI / TP_MOSI

SPI_MOSI

LCD_MISO / TP_MISO

SPI_MISO

LCD_SCK / TP_SCK

SPI_SCLK

LCD_RS

GPIO 22 (pin 15)

LCD_CS

SPI_CE0 (pin 24)

RST

GPIO 27 (pin 13)

TP_IRQ

GPIO 17 (pin 11)

TP_CS

SPI_CE1 (pin 26)

KEY1

GPIO 18 (pin 12)

KEY2

GPIO 23 (pin 16)

KEY3

GPIO 24 (pin 18)

Documents:

Package List:

  • 1x 3.2" Inch LCD Touch Screen Display Monitor Soft Keyboard For Raspberry Pi B B+
