Overview:

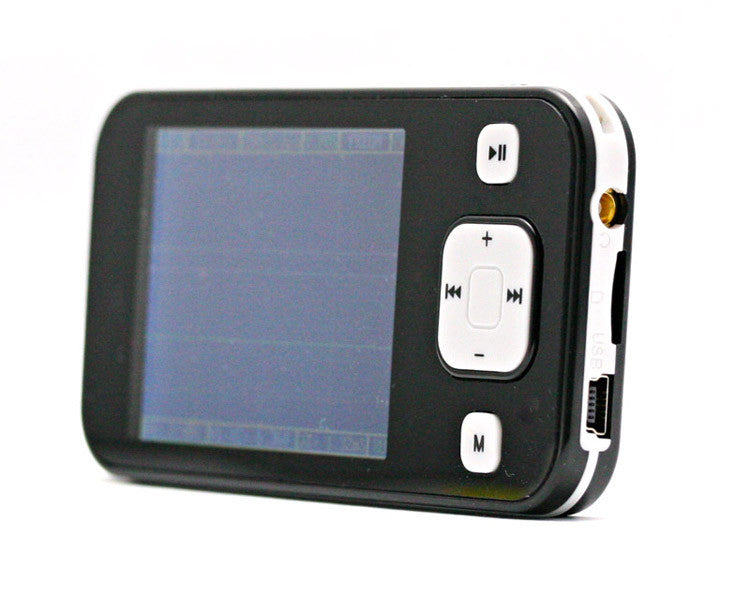

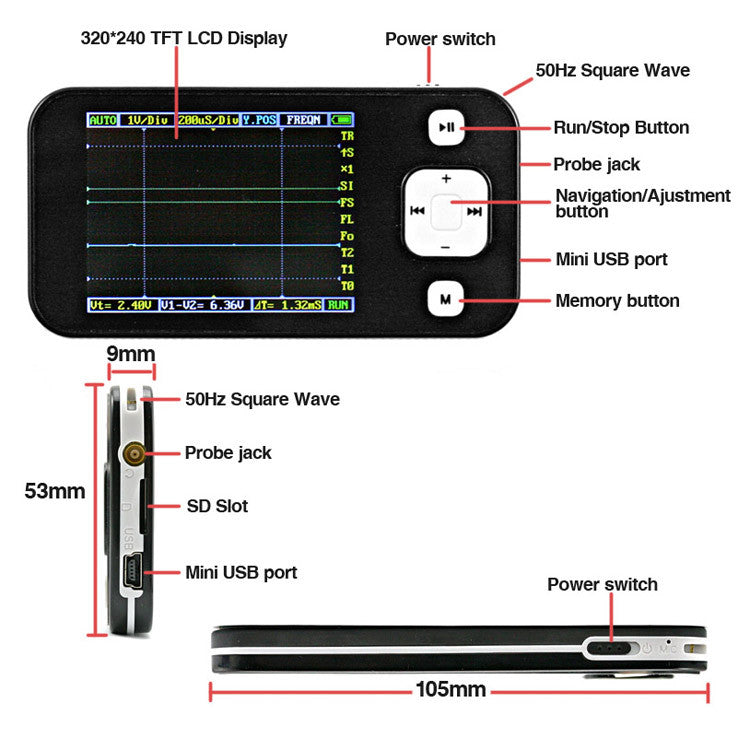

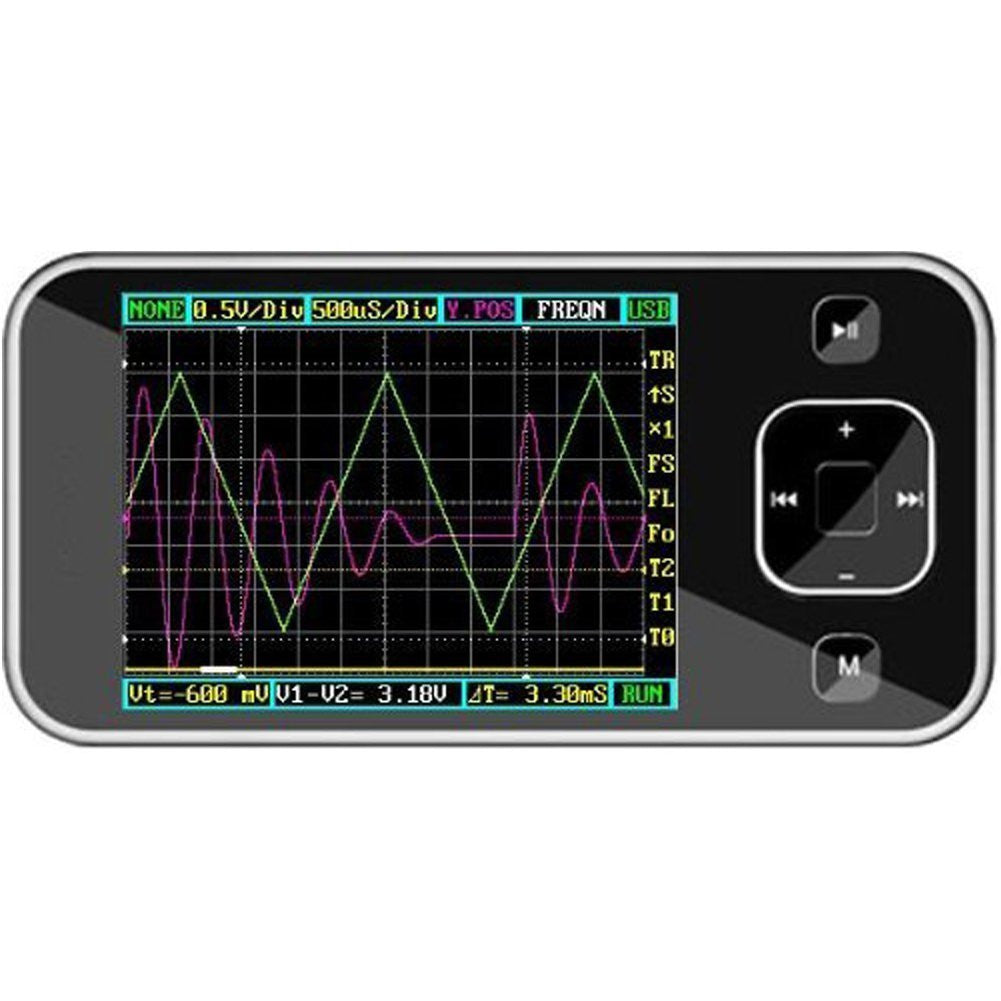

SainSmart DS0201 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is based on ARMCortexâ„?M3 compatible 32 bit platform, equipped with 320*240 color display, SD card capability, USB connection, and chargeable batteries. Weighs only 60g! Portable Digital Oscilloscope DIY Kit provides waveform viewing, pocket size and over 2 hours battery operation.
DSO Series:
| DSO Nano (DSO201) | DSO Note II (DSO202) | DSO Quad (DSO203) | |
| Sample rate | 1 MSps | 10 MSps | 72 MSps |
| Channels | 1 | 2 | 2 analog, 2 digital |
| Waveout | No | 1 MSps | 1 MSps |
| ADC | STM32F103 internal | STM32F303 internal | AD9288-40 |
| FPGA | No | No | ICE65L04 |
| RAM | 20 kB | 48 kB | 48 kB |
| Controls | 7 buttons | 1 button, touch area | 4 buttons, 2 scrollers |

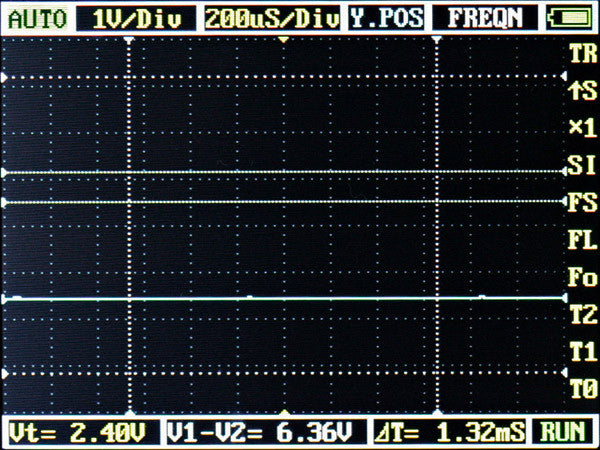

Features:
- DSO NANO Hardware 1.6 + Paul's Firmware 1.5
- Super portable and lightweight
- 2.8�color 320*240 display
- Basic 1Msps sample rate with 12bit resolution
- Various measurement markers
- Various trigger mode
- Build-in test signal
- USB chargeable battery
- Open source
- 700Mah 3.7V chargeable Lithium Battery, over 2.5 Hours battery lasting
| Display |
2.8�Color TFT LCD
|
| Display Resolution |
320×240
|
| Display Color |
65K
|
| Analog bandwidth |
0 - 1MHz
|
| Max sample rate |
1Msps 12Bits
|
| Sample memory depth |
4096 Point
|
| Horizontal sensitivity |
1uS/Div~10S/Div (1-2-5 Step)
|
| Horizontal position |
adjustable with indicator
|
| Vertical sensitivity |
10mV/Div~10V/Div (with ×1 probe)
0.5V/Div~100V/Div (with ×10 probe) |
| Vertical position |
Adjustable with indicator
|
| Input impedance |
>500KΩ
|
| Max input voltage |
80Vpp (by ×1 probe)
|
| Coupling |
DC
|
| Trig modes |
Auto, Norma, Single, None and Scan
|
| Functionalities |
Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
Precise vertical measurement with markers Precise horizontal measurement with markers Rising/falling edge trigger Trig level adjustable with indicator Trig sensitivity adjustable with indicator Hold/run feature |
| Test signal |
Built-in 10Hz~1MHz (1-2-5 Step)
|
| Waveform storage |
SD card
|
| PC connection via USB |
As SD card reader
|
| Upgrade |
By bootloader via USB
|
| Power supply |
3.7V Chargeable Lithium battery / USB
|
| Dimension (w/o probe) |
105mm X 53mm X 8mm
|
| PC connection |
Mini USB B-Type
|
Document:

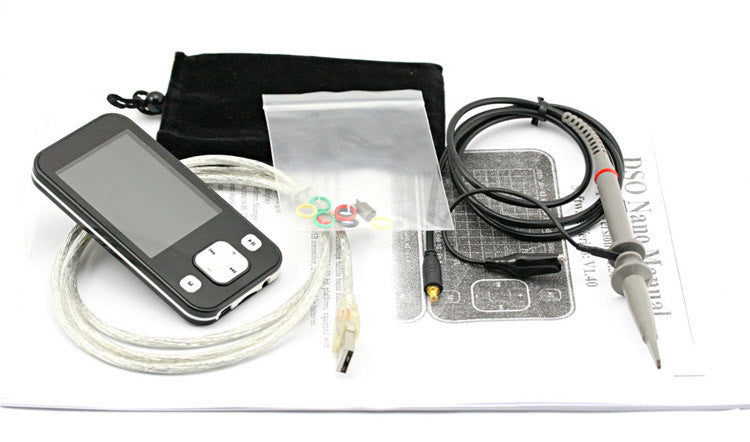

Package List:
1x SainSmart DS0201 Digital Oscilloscope Device (3.7V Li_Battery(ATL) mounted)

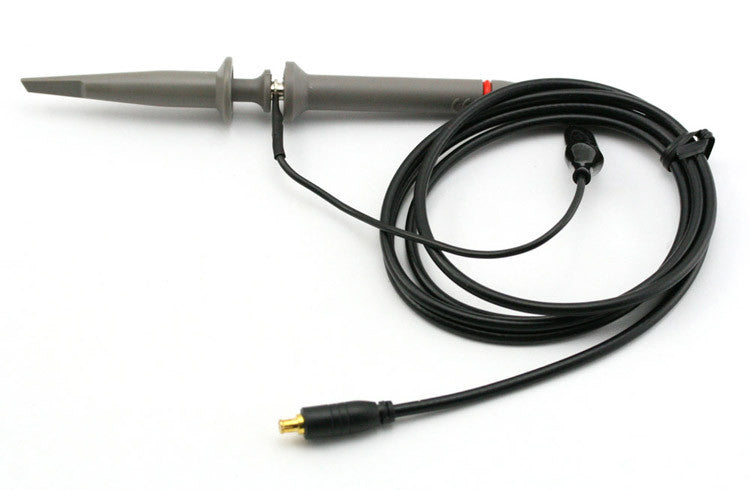

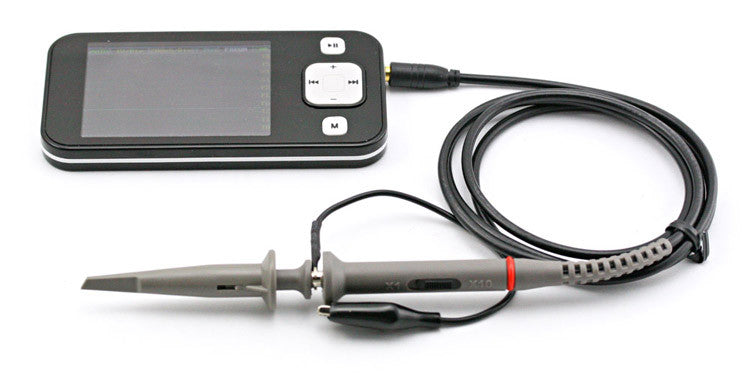

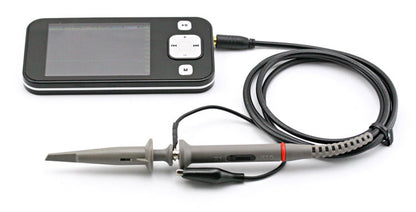

1x Probe (x1/x10)

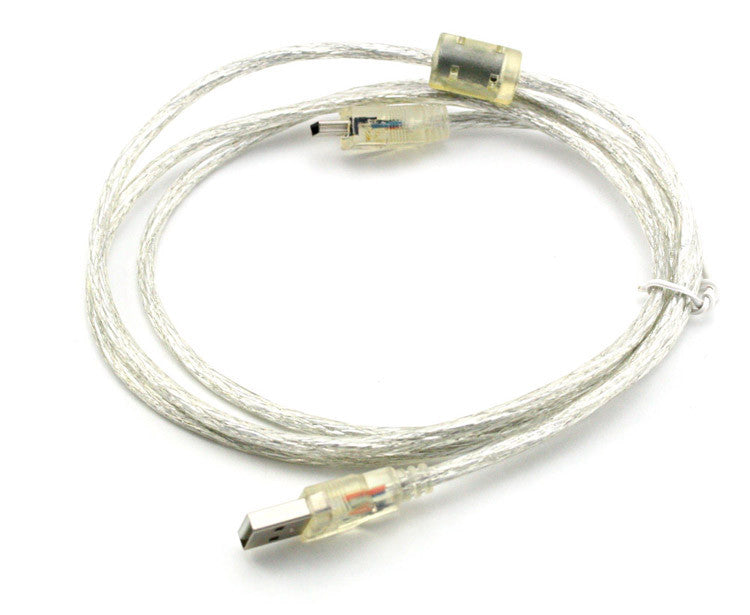

1x Mini USB Cable
1x Self-printed paper manual

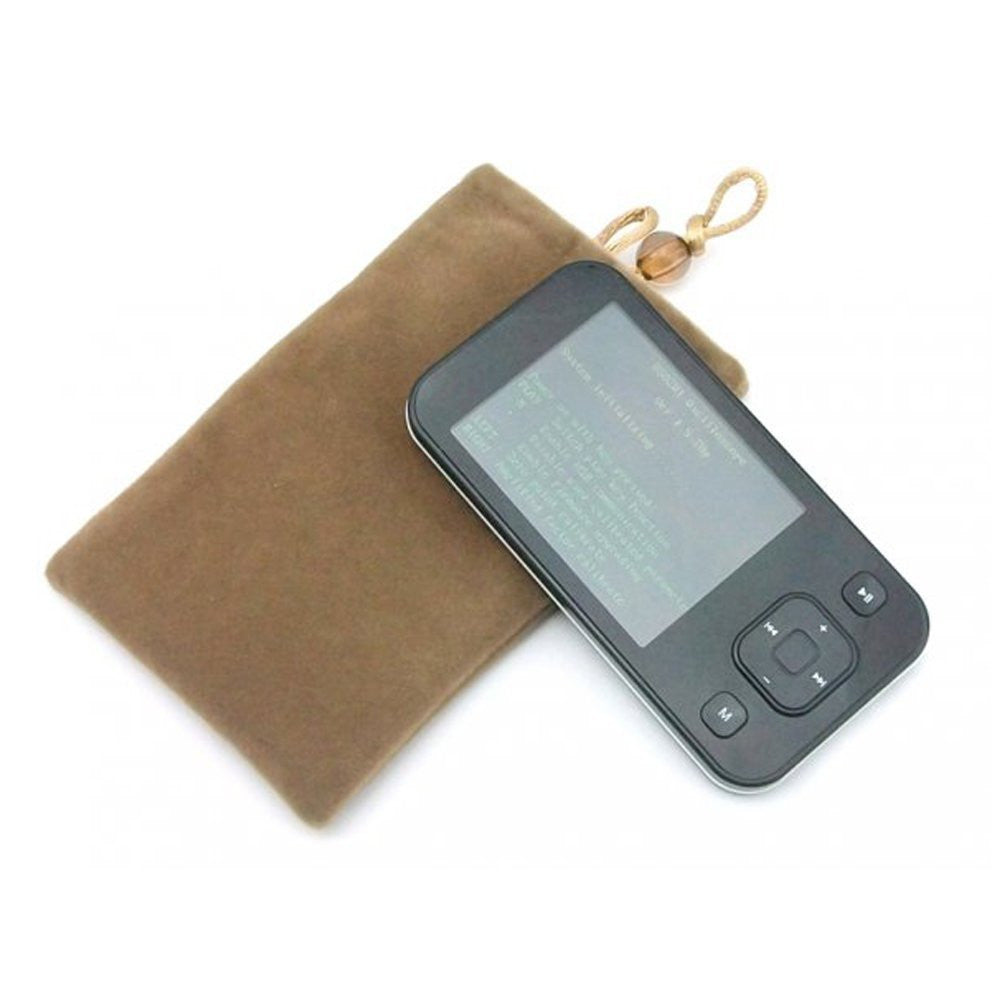

1x Flannel bag
