Overview

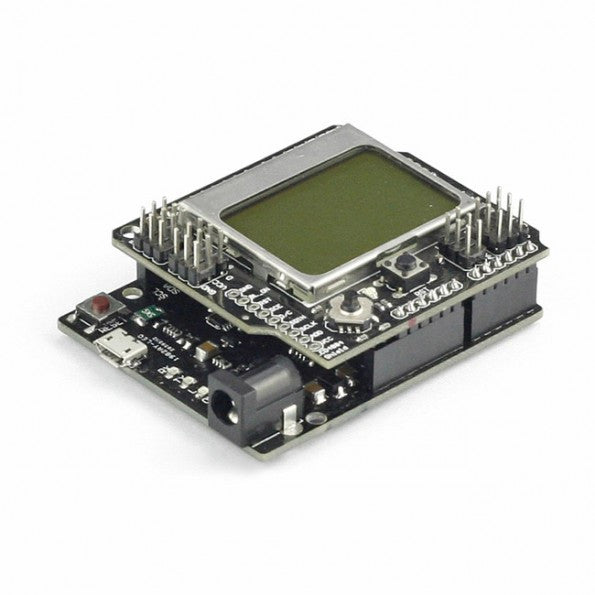

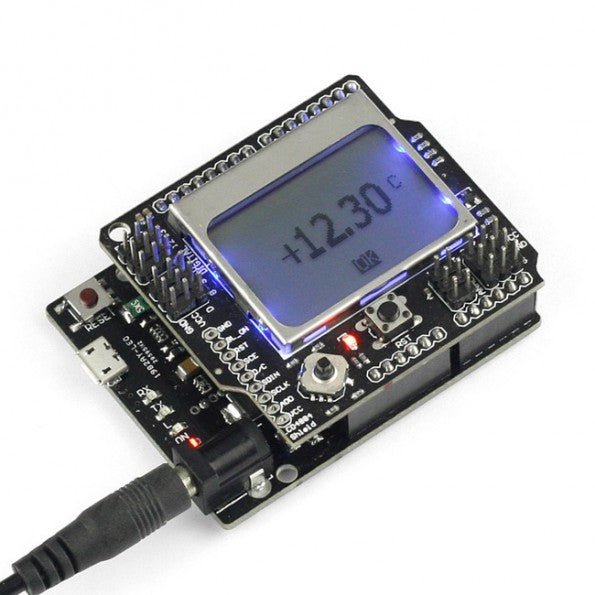

This is a new SainSmart Leonardo R3 kit, which is easy for Arduino fans and starters to plug and play, containing one SainSmart Leonardo R3, one SainSmart Graphic LCD 4884.
Features
SainSmart Leonardo R3 Improved Version Board
The SainSmart Leonardo is a microcontroller board based on the ATmega32u4 . It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
|
Microcontroller |
ATmega32u4 |
|
Operating Voltage |
5V |
|
Input Voltage (recommended) |
7-12V |
|
Input Voltage (limits) |
6-20V |
|
Digital I/O Pins |
20 |
|
PWM Channels |
7 |
|
Analog Input Channels |
12 |
|
DC Current per I/O Pin |
40 mA |
|
DC Current for 3.3V Pin |
50 mA |
|
Flash Memory |
32 KB (ATmega32u4) of which 4 KB used by bootloader |
|
SRAM |
2.5 KB (ATmega32u4) |
|
EEPROM |
1 KB (ATmega32u4) |
|
Clock Speed |
16 MHz |

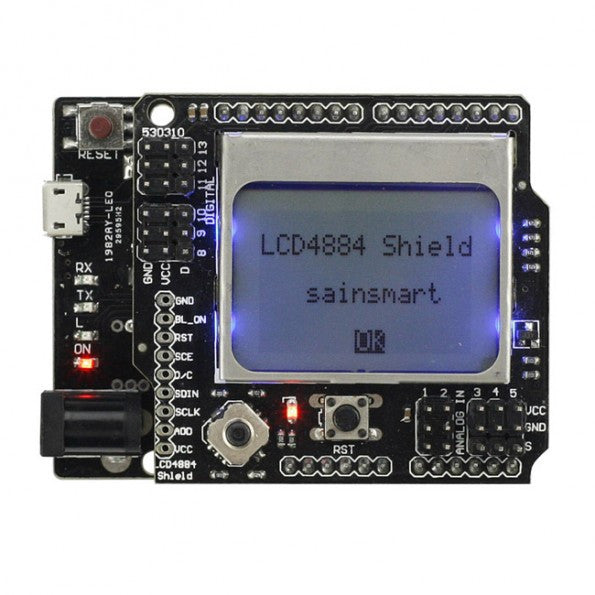

SainSmart Graphic LCD4884 Shield
This LCD4884 Shield provides 48x48 display. If your project need more information to display, this LCD shield can apparently meet your needs. It is able to display English, Chinese, even images. It also integrates a 5 DOF joystick. The shield has 6 Digital IO and 5 Analog IO.
Power Supply: 5V
SPI Interface (using Arduino Digital Pin 2,3,4,5,6)
One Reset button
One 5 degree joystick (using Arduino Analog Pin 0)
Backlit control (Arduino DIO Pin 7)
Package List:
1. 1x SainSmart Leonardo R3 board
2. 1X SainSmart Graphic LCD 4884 Module
3. 1X USB cable
