Mega2560 Prototype Kit+1602 LCD Keypad+Prototype Shield

brand: SainSmart 1 review SKU: 101-52-C09 Variants ID: 45099882132
$35.99

SainSmart Mega2560+1602 LCD Keypad+Prototype Shield Kit For Arduino ATMEL ATMEGA

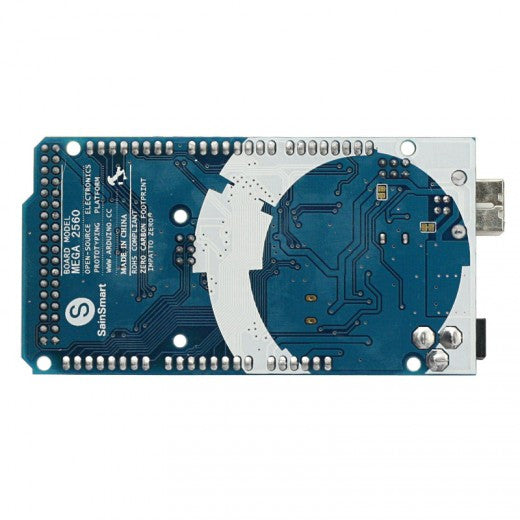

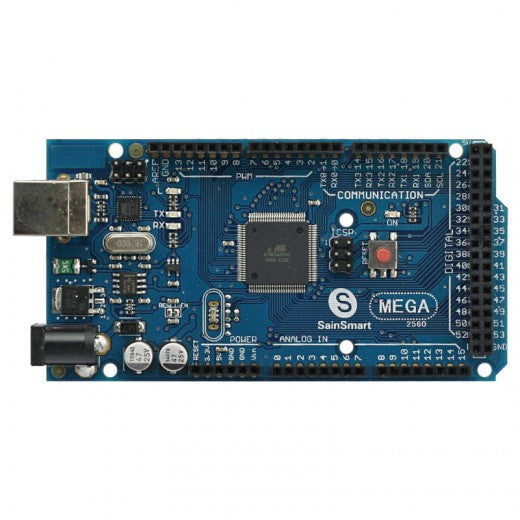

SainSmart Mega2560:
Microcontroller:     ATmega2560
Operating Voltage:   5V
Input Voltage (recommended):  7-12V
Input Voltage (limits) :    6-20V
Digital I/O Pins:     54 (of which 14 provide PWM output)
Analog Input Pins :   16
DC Current per I/O Pin :   40 mA
DC Current for 3.3V Pin:   50 mA
Flash Memory:     256 KB of which 8 KB used by bootloader
SRAM:    8 KB
EEPROM :    4 KB
Clock Speed :   16 MHz

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 14 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz

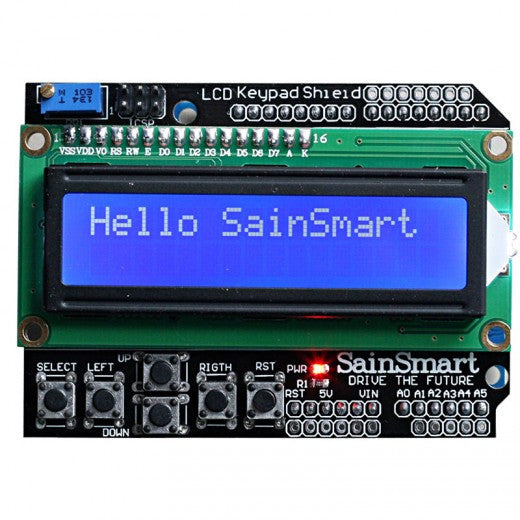

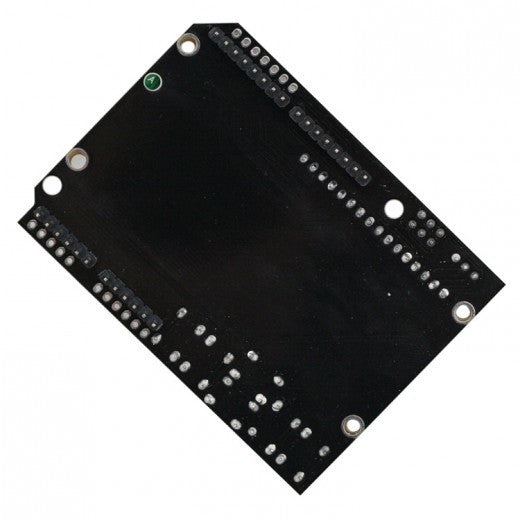

SainSmart 1602 LCD Keypad Shield:

  •     This is a 16x2 LCD Keypad module for Arduino Diecimila Duemilanove, UNO, MEGA1280, MEGA2560  board.
  •     Blue Backlight with white words, adjustable backlighting.
  •     4 Bit Arduino LCD Library
  •     100% brand new and high quality


SainSmart Prototype Shield:
It is a great kit to new Arduino users and geeks who have sparkling ideas. You can choose to do soldering in the soldering area. You can also make good use of the mini breadboard which can save your time of soldering, to try any circuit you want to the Arduino. You also can choose to use your own breadboard.

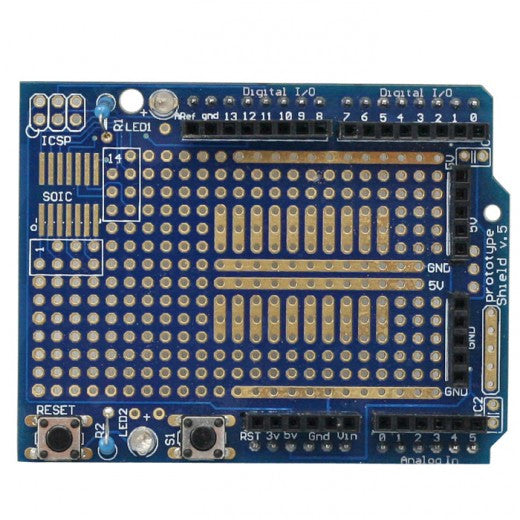

Arduino Protoytpe Shield:

  •    The small soldering area
  •    Access to a BlueSMiRF socket for wireless communication between Arduinos
  •    2 general LEDs
  •    1 general pushbutton switch
  •    1 Arduino reset switch brought to top level
  •    5V, GND, and Raw pins are exposed as well
  •    All Arduino pins are brought to the top level


 Mini Breadboard:

  •    170 tie points.
  •    Self-adhesive backing to stick on the Arduino Protoytpe Shield
  •    Strong
  •    Measures 1.7"x1.3"

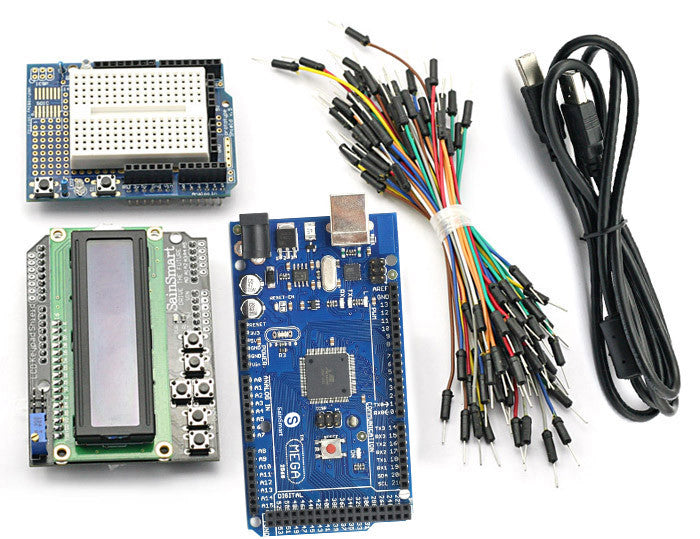

Package List:
1x SainSmart Mega2560
1x SainSmart 1602 LCD Keypad Shield
1x SainSmart Protoytpe Shield
1x Mini Breadboard
65x Jumper Cable
1x USB Cable
