SainSmart Pink Resin Board for CNC Engravingbrand: SainSmart SKU: 101-60-M410

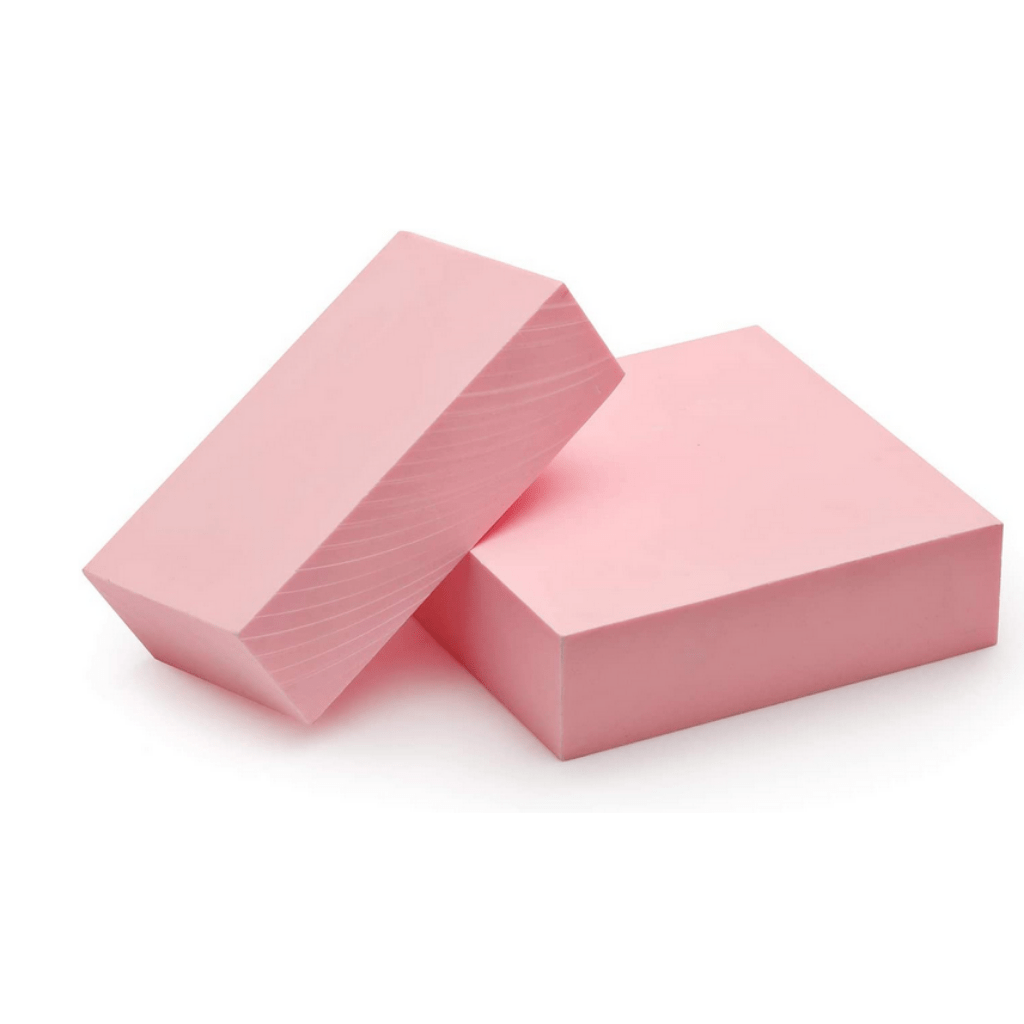

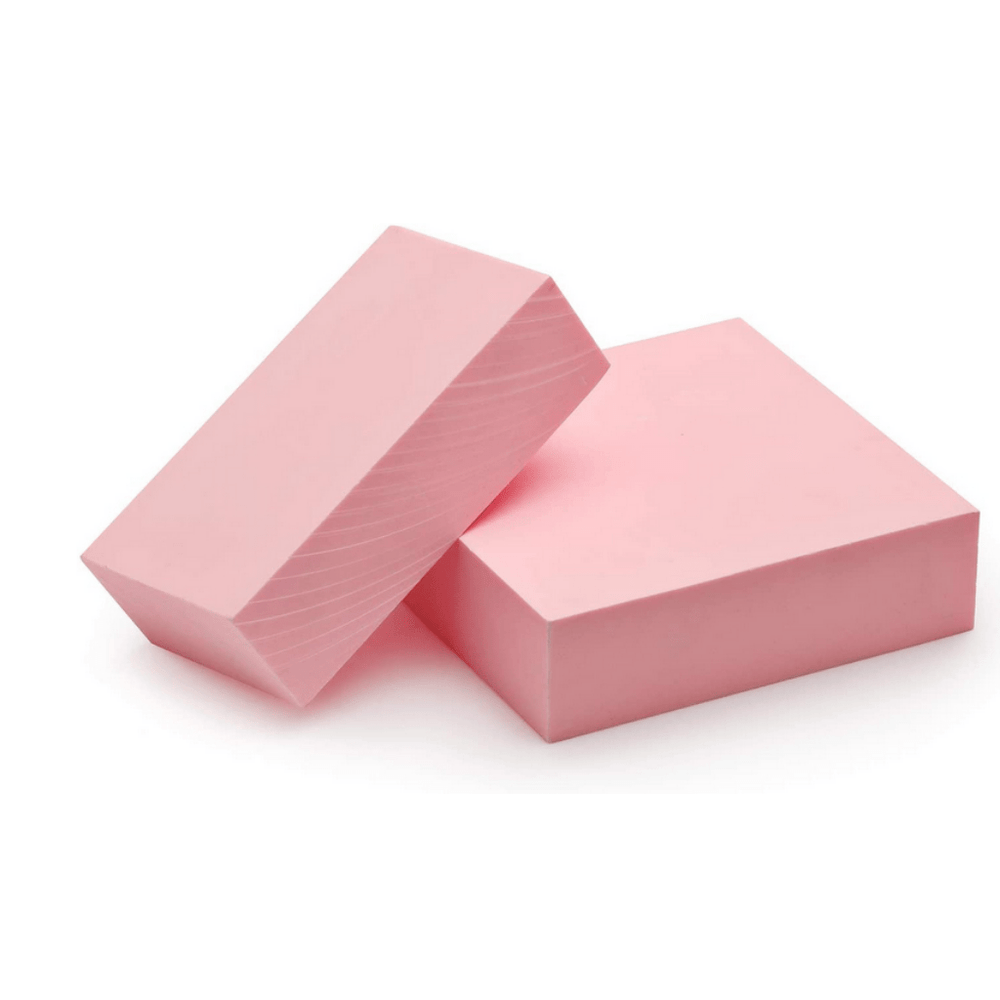

- SainSmart Resin Board is a medium-high density polyurethane modeling and styling board.
- It was developed to meet the growing demand for higher-quality, more dimensionally accurate, machined master patterns and prototypes.

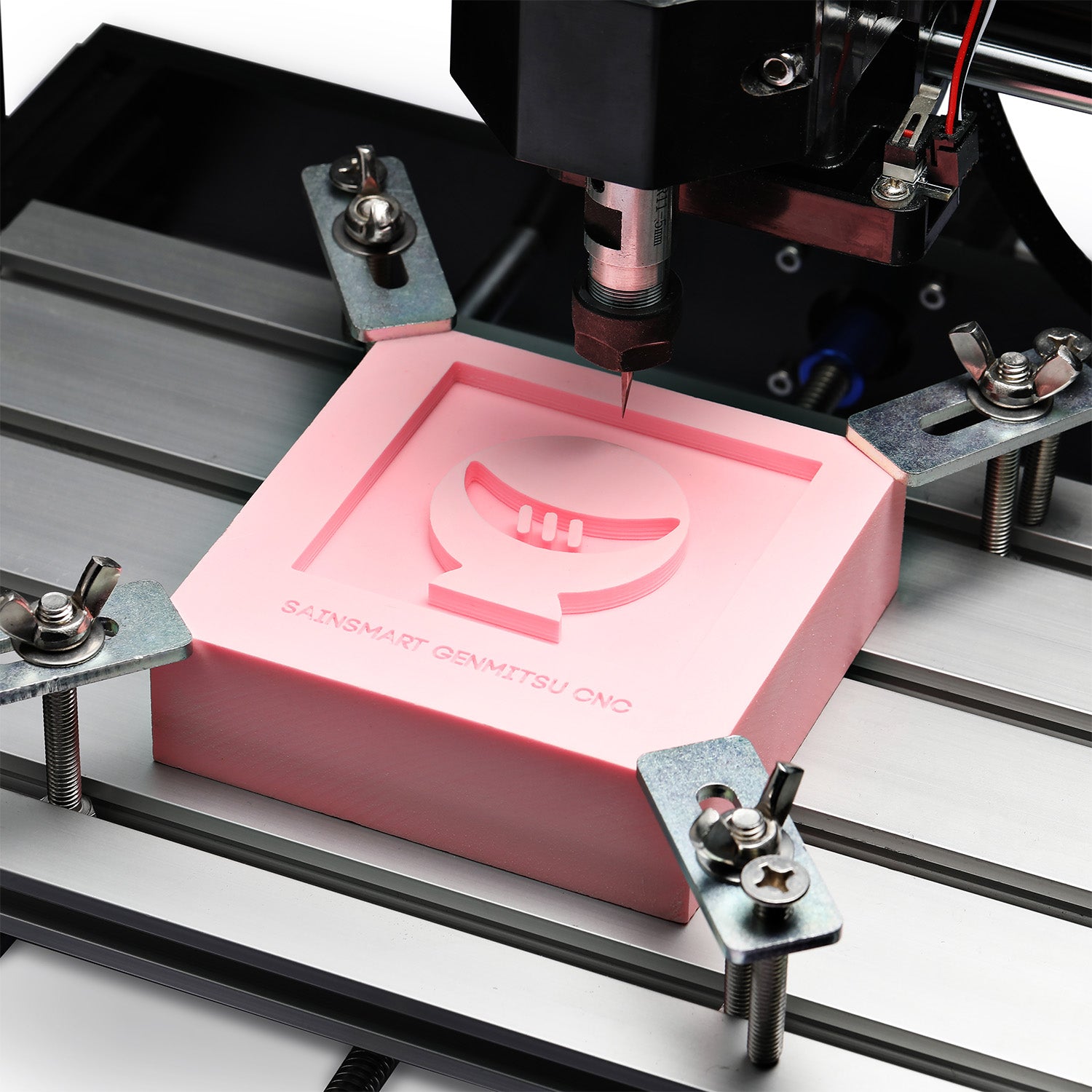

- Featured with a smooth surface finish, this board is an ideal material for prototype vacuum-forming tools, styling prototypes, master models, tooling aids, and automotive die models.

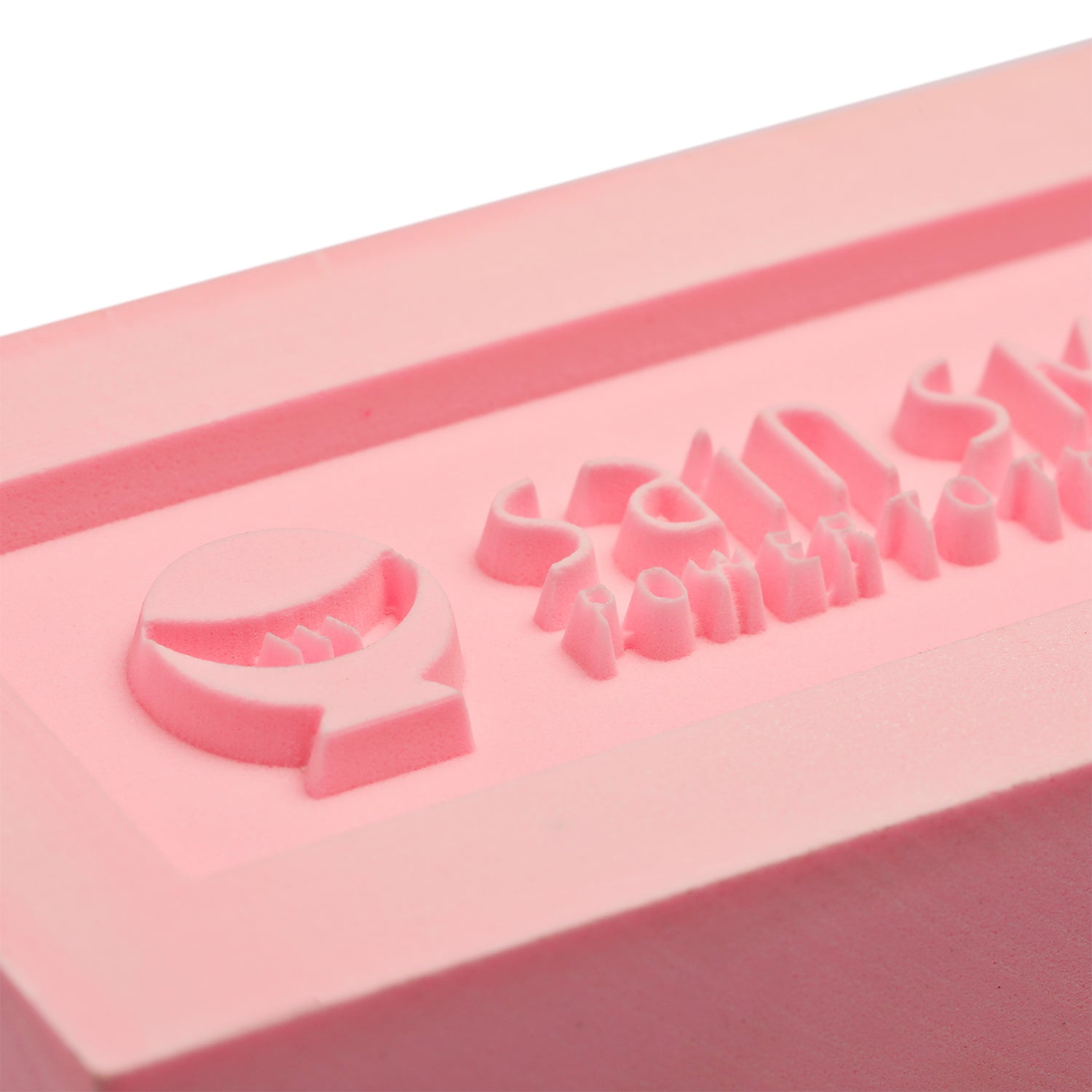

- This resin board will reduce residual particles while engraving, so it is easy for you to clean up.
- With excellent dimensional stability and maintain tolerances even when exposed to temperature and humidity extremes.

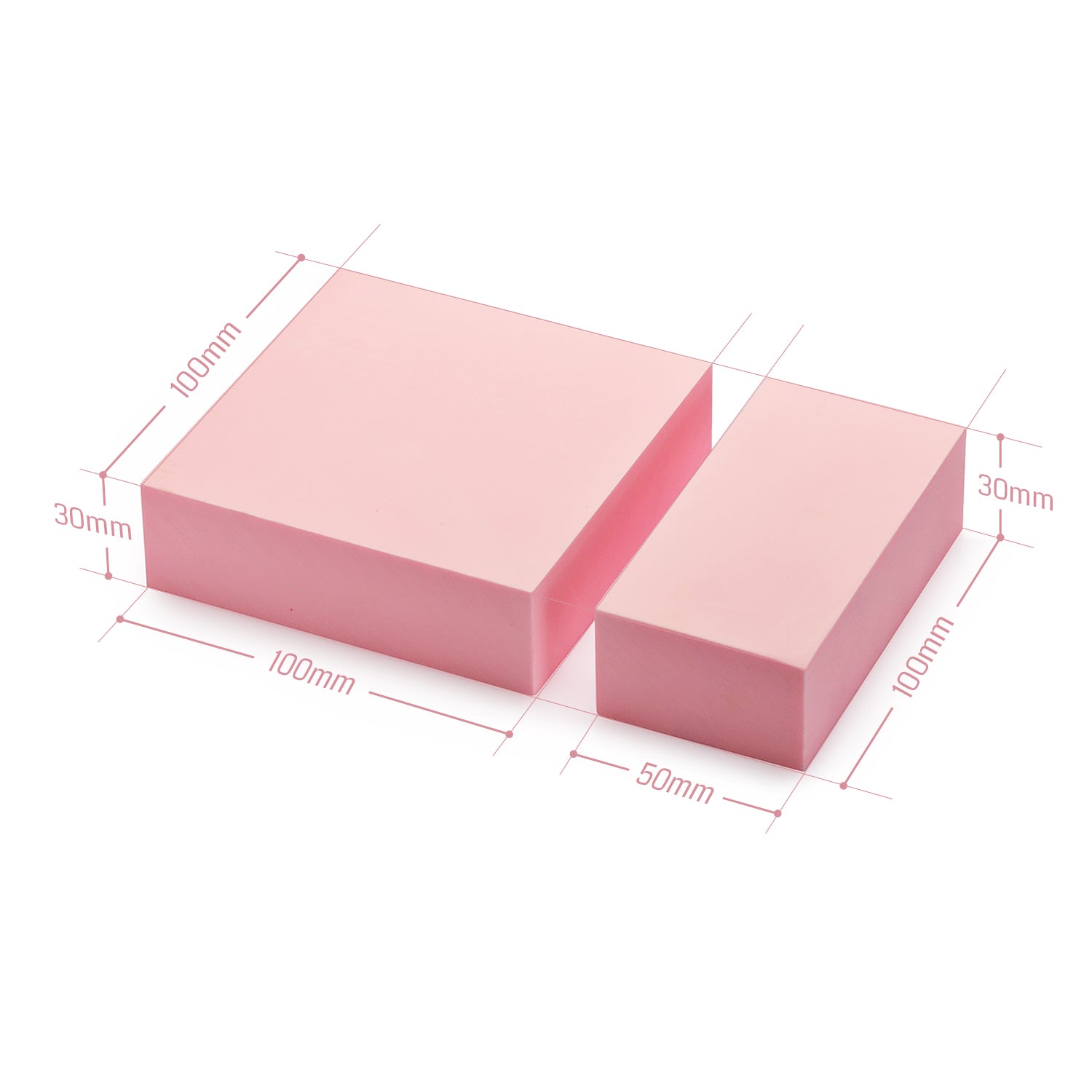

- Size: 100 x 100 x 30mm(3.9" x 3.9" x 1.2") & 50 x 100 x 30mm(2.0" x 3.9" x 1.2")
- Density: 0.65~0.7g/cm³
- Shore hardness:55~60
- Compressive strength: 25~30
- Compression factor: 1080
- Thermal expansion coefficient: 10~15
- Heat distortion temperature: 95℃
WHAT'S IN THE PACKAGE
- 2PCS Resin Board (100 x 100 x 30mm)
- 2PCS Resin Board (50 x 100 x 30mm)
