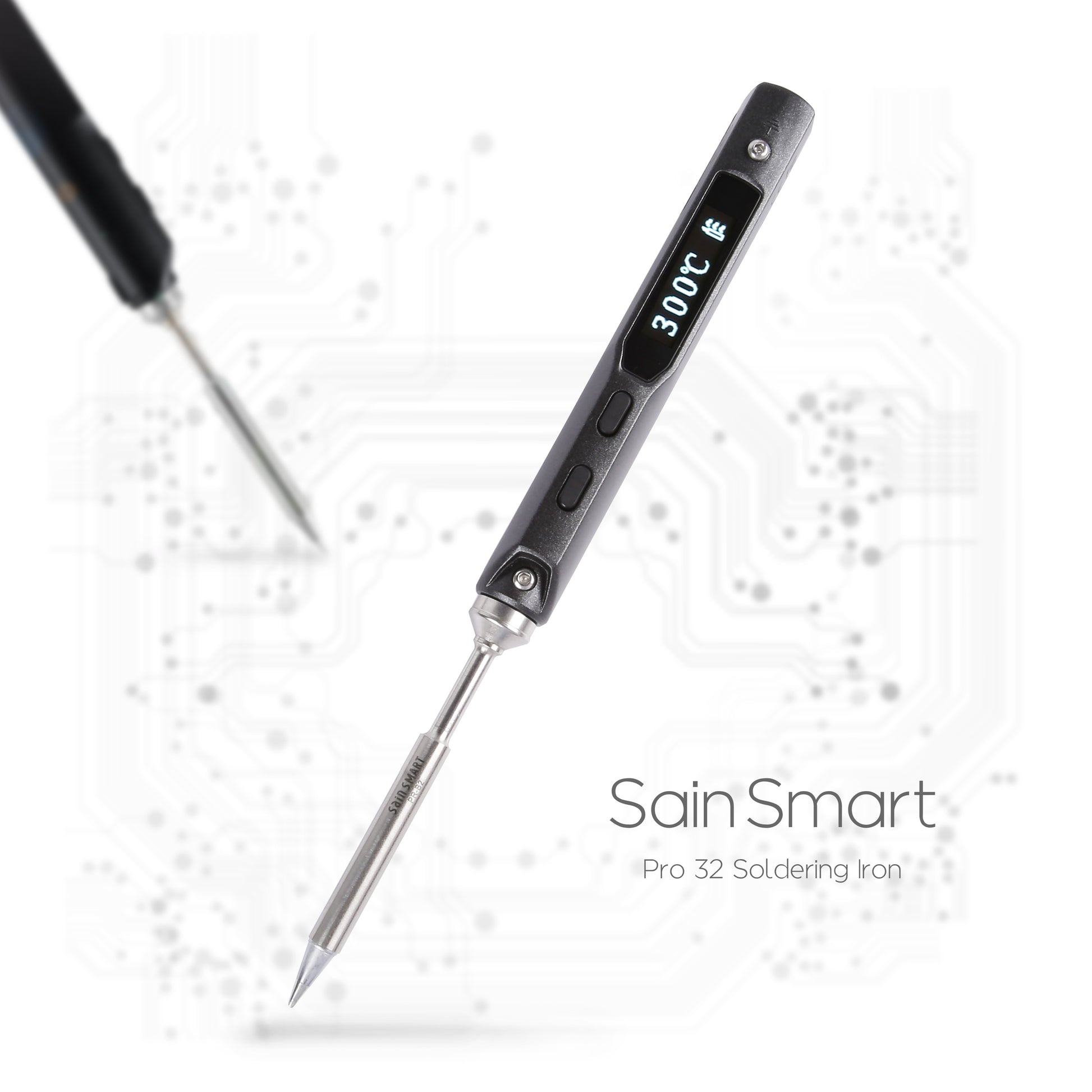

ToolPAC PRO32 BC2 Tip Smart Soldering Tool Set with Blue Shell

brand: SainSmart SKU: 101-92-C17 Variants ID: 211503054868

SainSmart Pro32 can handle both small and large components. It is a perfect tool for lab, engineering and DIY.

  • 【Portable】Its size is similar to a pen, space saver and easy to handle.
  • 【Fast heat-up】About 10 seconds from room temp to 300℃/500℉
  • 【Custom and opensource APP】. Programming software is provided for specific soldering projects. Quick and easy processing.
  • 【Auto sleep】Cool down when lay aside and fast reheat from sleep to preset temp
  • Power supply is included but could also use a Li app battery for better portability
  • Soldering iron tips are easy to assemble or disassemble, and replaceable for 2 types: PR-B2, PR-BC2.
Oops, 0 In Stock


Quick Review


  • Based on 304 stainless steel nested polycarbonate housing, integration of safety circuit design power supply interface, anti-static structure, embedded STM32 processor chip, dual temperature sensor and acceleration extreme cooperate, SainSmart Pro 32 intelligent temperature control between 100-400 degrees, instantaneous heating, automatic dormancy, overtemperature alarm, and other functions.
  • External independent power supply : DC5525 power interface, suitable for notebook DC12-24V power supply, car power, mobile power supply, and power bank.
  • Micro USB interface: Through edit the parameter file, custom your own temperature curve and buttons function.
  • Additional features: Open source for writting your own App.


  • Operating Voltage: 12V to 24V
  • Power: 17W to 65W
  • Screen: OLED
  • USB Port: Micro USB
  • Power Port: DC5525
  • Temperature stability: ±2%.
  • Soldering tip resistance to ground: < 2Ω.
  • Temperature range: 212°F to 752°F (100°C to 400°C)
  • Control part: length: 96mm, diameter: 16.5mm.
  • Heating part: length: 72+33mm, diameter: 5.5mm.
  • Compliant with EU certification: CE FCC.


Original Replacement Solder Tip for Pro 32 Digital LCD Soldering Iron:

Specifications Total length Weight
PR-B2 105mm 10.5g
PR-BC2 106mm 10.5g


Extra Accessories:

Replacement Shell

Ceramic Iron Holder


  • 1 x Pro 32 Digital LCD Soldering Iron

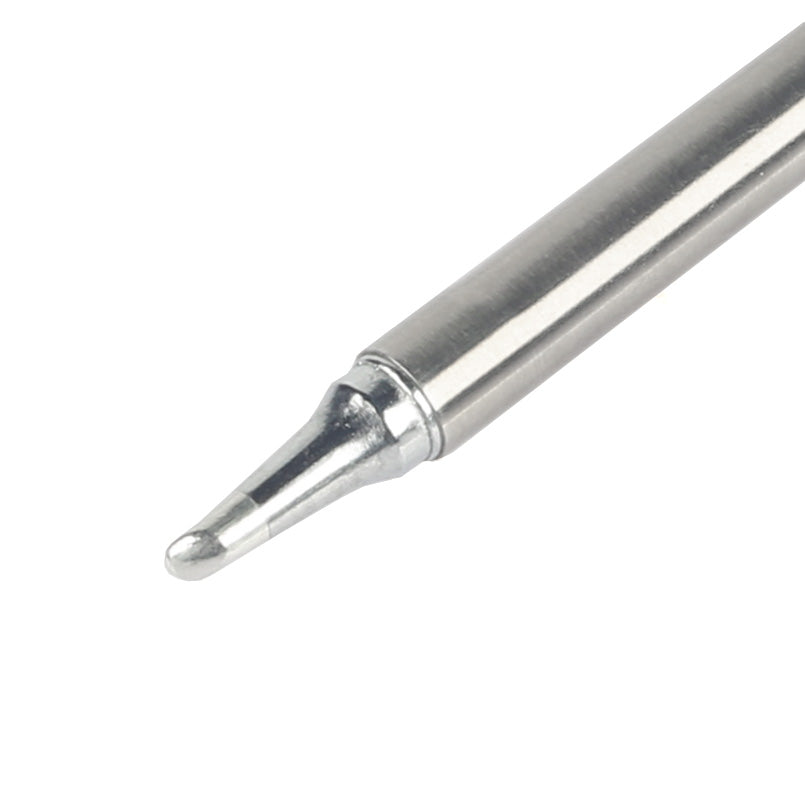

  • 1 x PR-BC2 Solder Tip
  • 1 x Allen Key (For replace the tips and heating element)

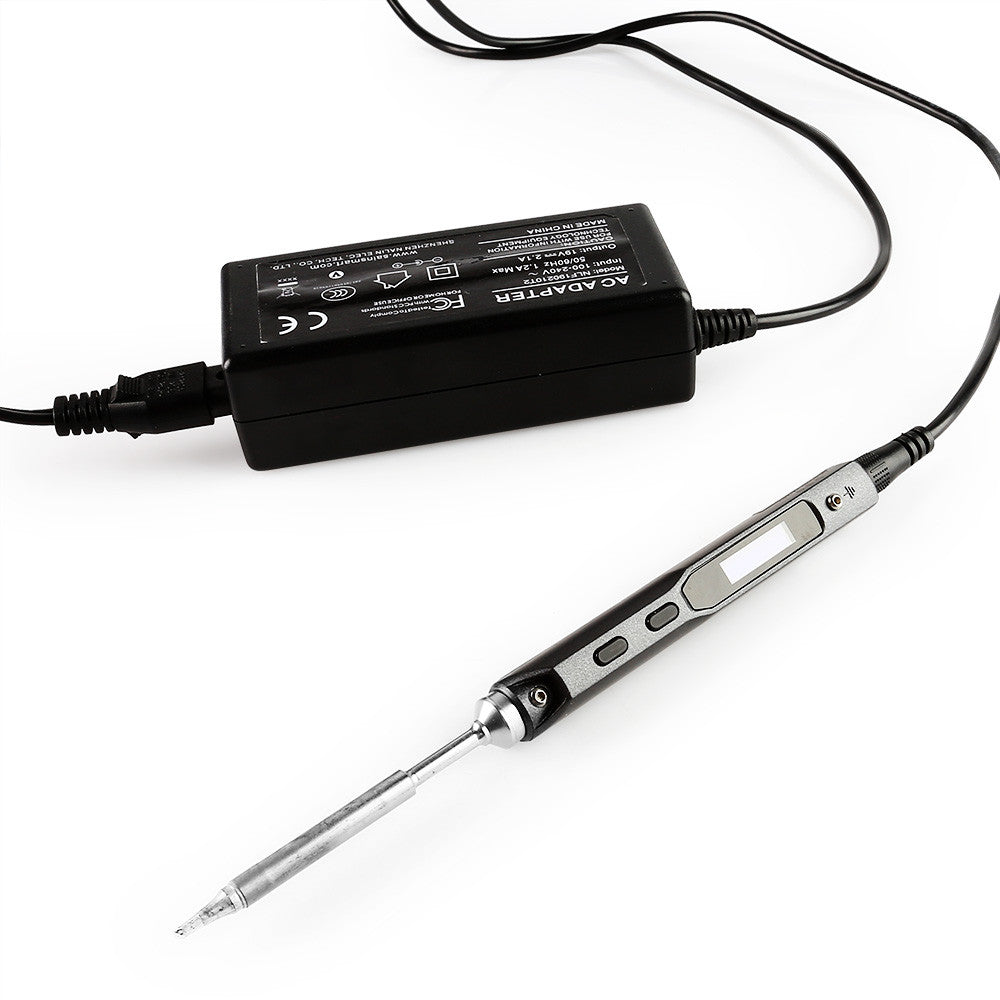

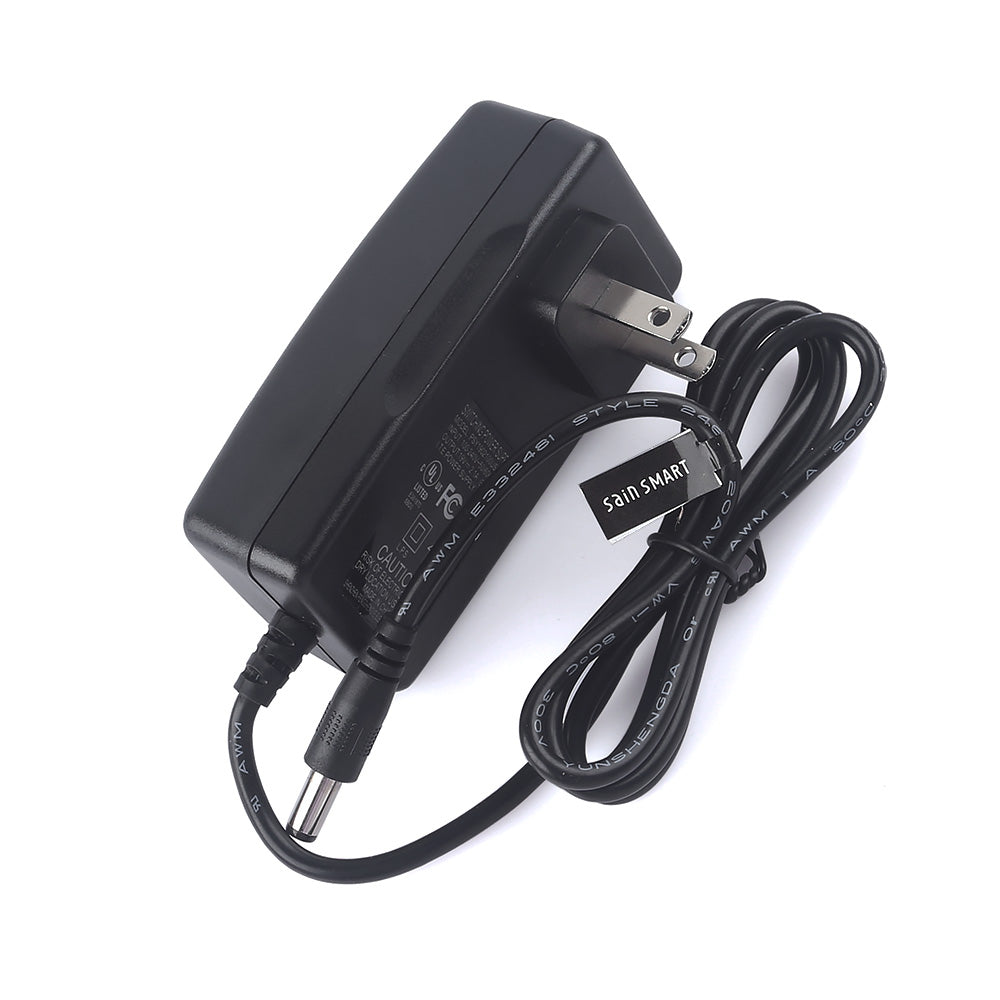

  • 1 x 1 x 19V/2.1A 100-240V Power Supply (AC/DC Power adaptor)

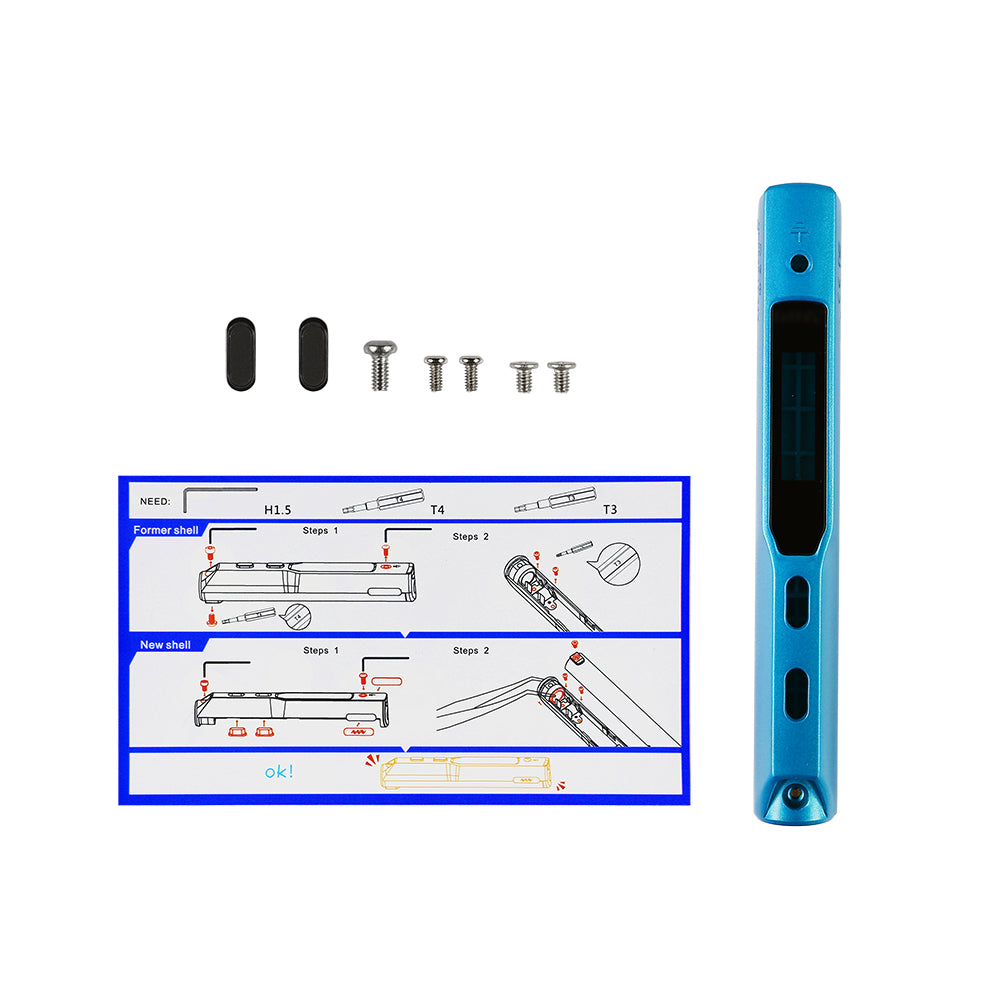

  • 1 x Blue replacement shell
