Electronic Protections:
- PV short circuit protection
- PV overvoltage alarm protection
- PV current limiting protection
- PV reverse polarity protection
- Battery overcharge protection
- Battery over discharge protection
- Battery reverse polarity protection
- Load overload protection
- Load short circuit protection
- Overheating protection
SPECIFICATION
- Nominal system voltage: 12VDC / 24VDC Auto work
- Rated charge current: 20A
- Rated discharge current: 20A
- Maximum battery voltage: 32V
- Max. solar input voltage: 150VDC
- Max. PV input power: 260W(12V) 520W(24V)
- Self-consumption*: �0mA(12V) �7mA(24V)
- Charge circuit voltage drop: �.26V
- Discharge circuit voltage drop: �.15V
- Temperature compensate coefficient: -3mV/ºC/2V(default)
- Communication: RS485(RJ45 interface)
WHAT'S IN THE PACKAGE

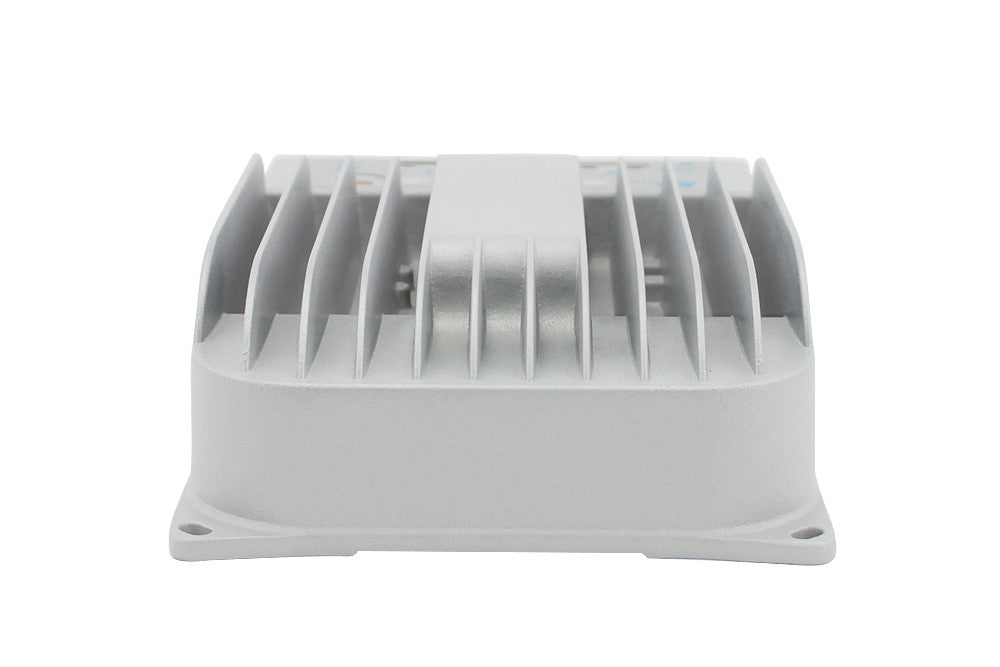

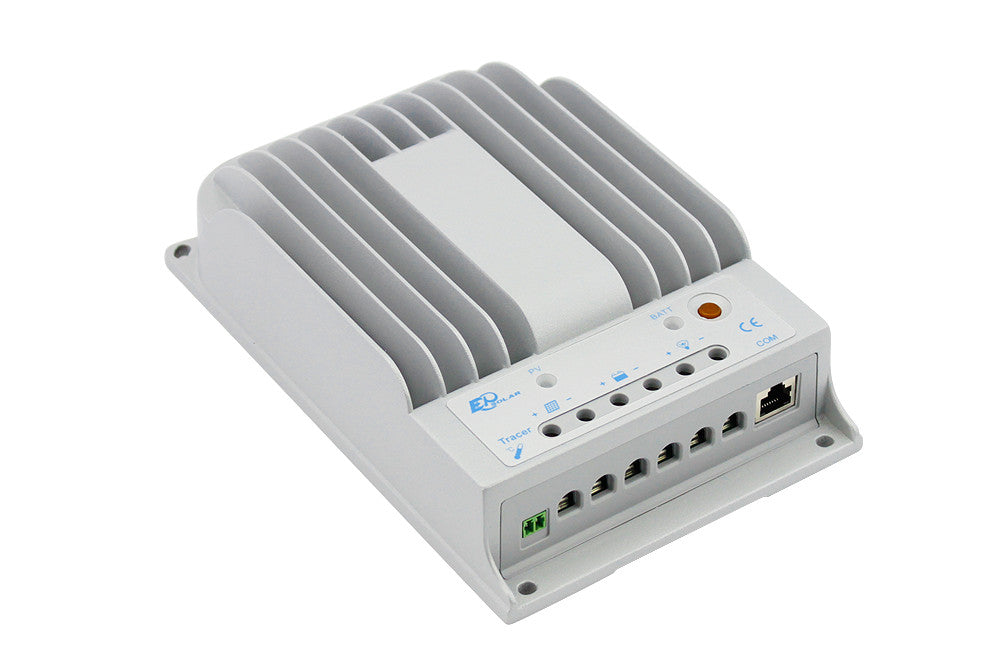

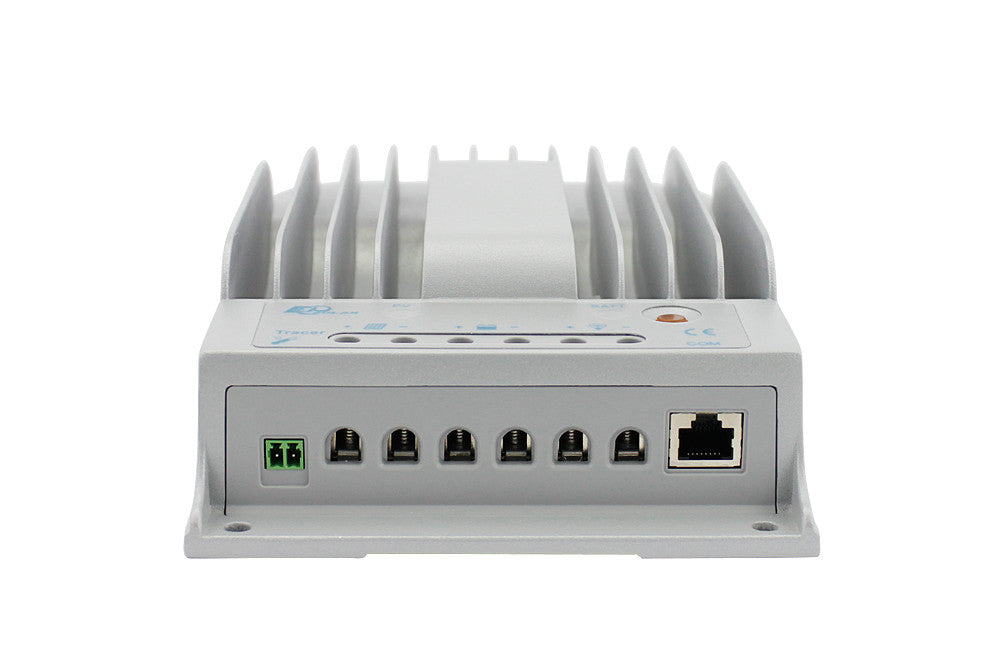

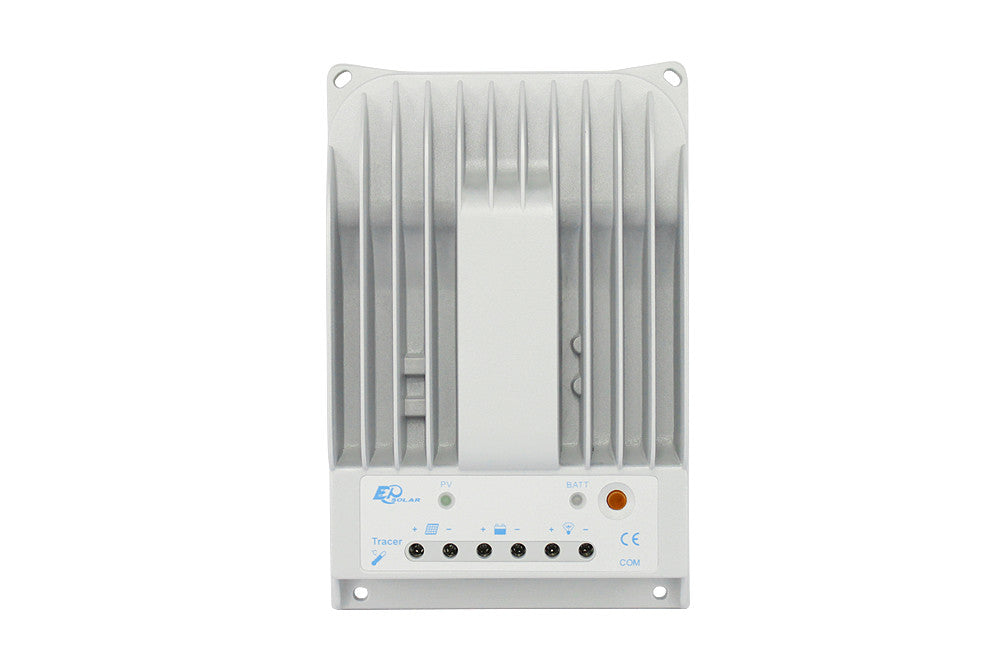

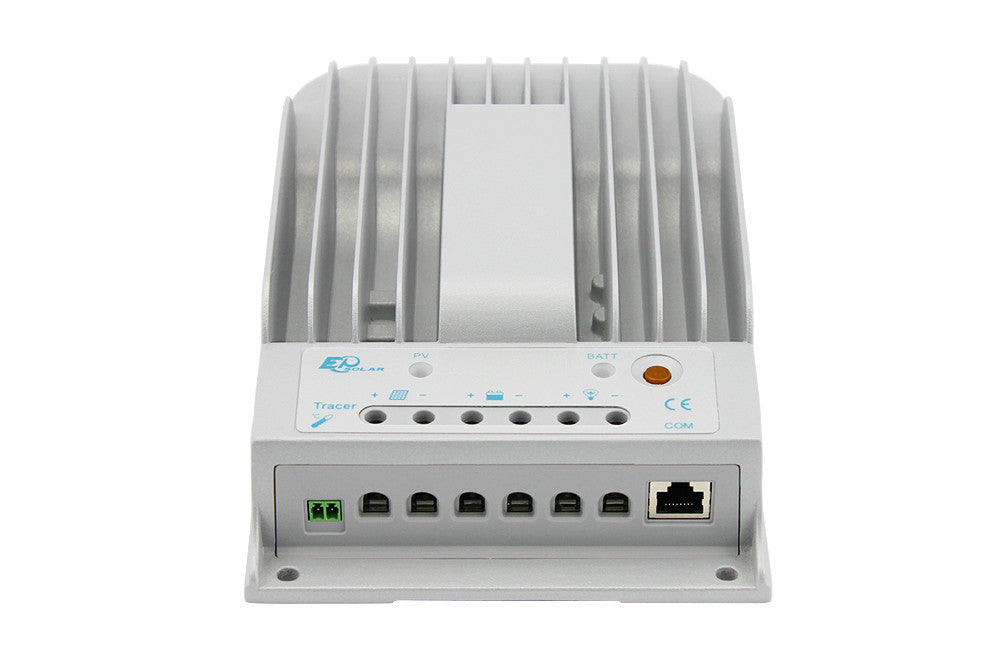

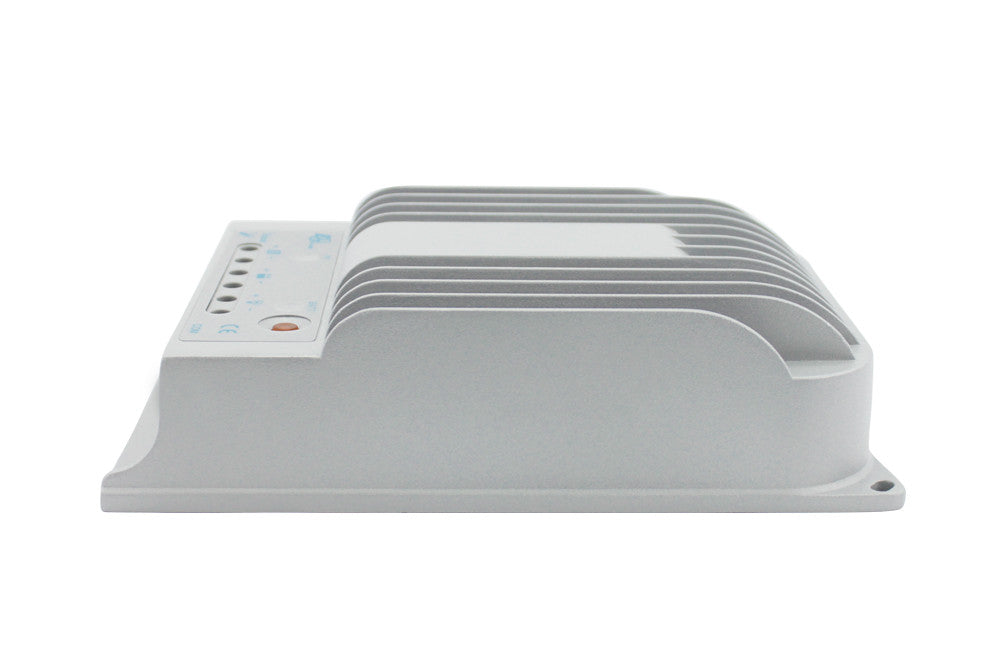

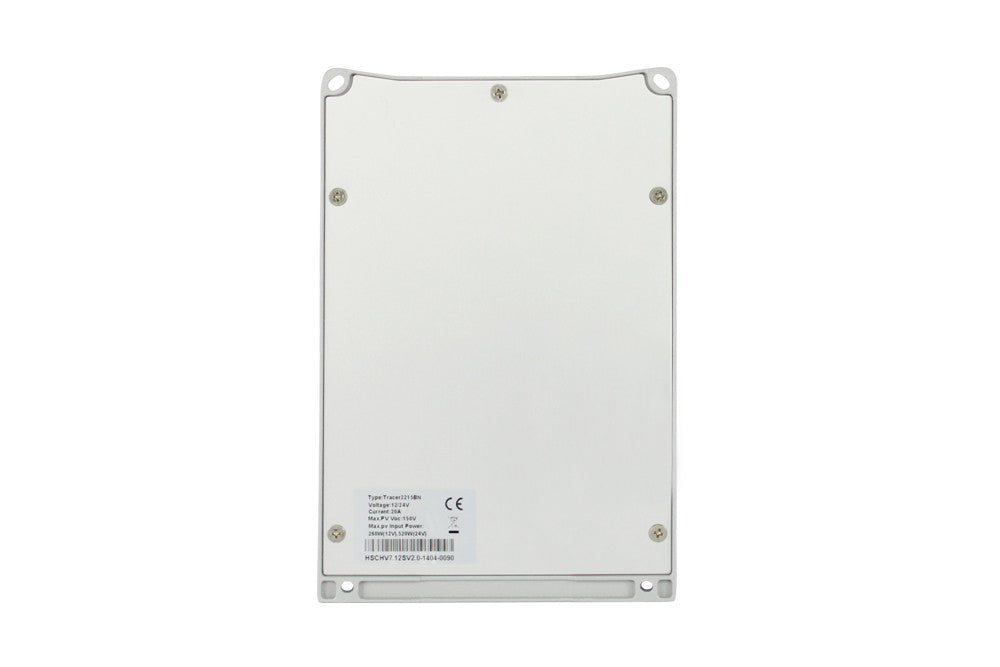

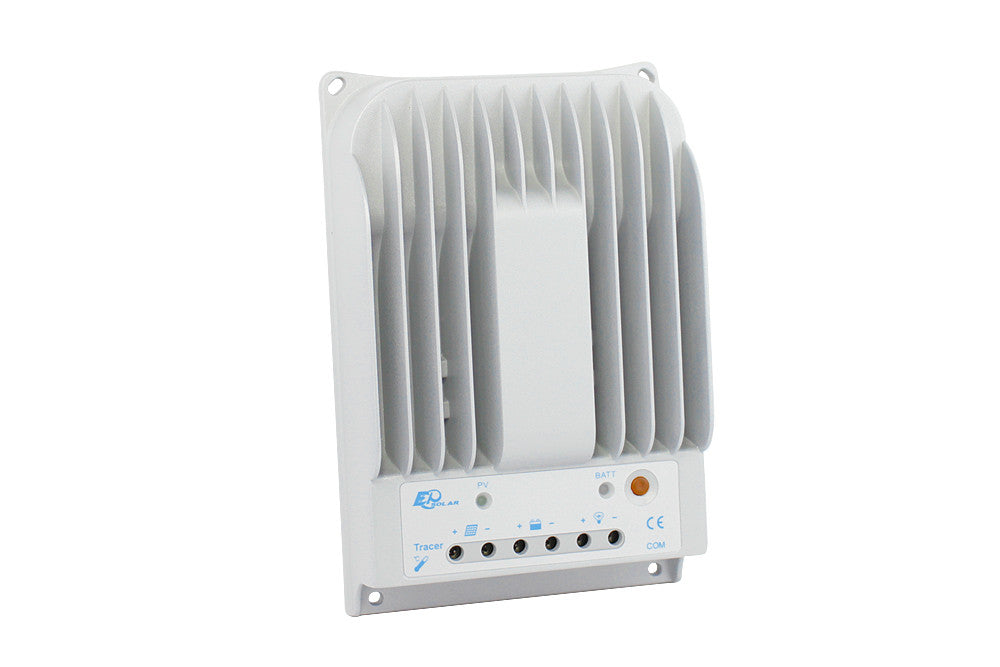

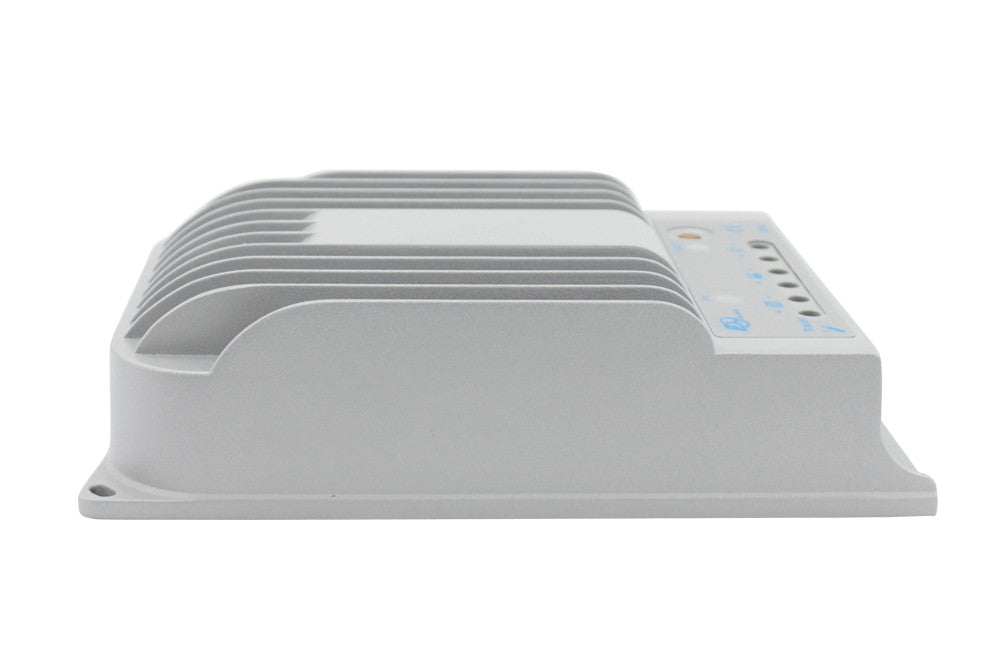

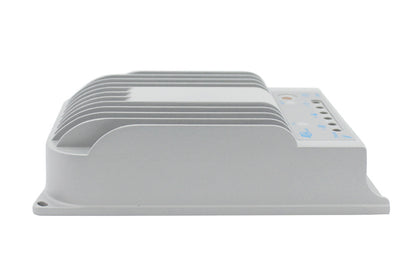

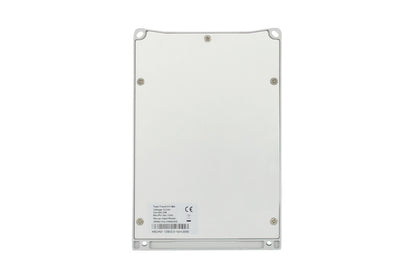

- 1 x Solar Charge Controller
Note: If you need to monitoring the solar system or setting the controller, you may have to buy a MT-50
remote meter separately,MT-50 is not included.
