USB to TTL Debug Console Serial Cable for Raspberry Pi, PL2303HX

brand: SainSmart SKU: 101-40-165
$7.99
DESCRIPTION

Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi or BeagleBone Black. Connect the pins as shown to power the Pi or BBB and establish the RX/TX link. Then install the Windows XP/Vista/7 or MacOS X PL2303HX.A drivers on your computer and connect with a terminal program at 115200 baud. Windows 8 is not supported.

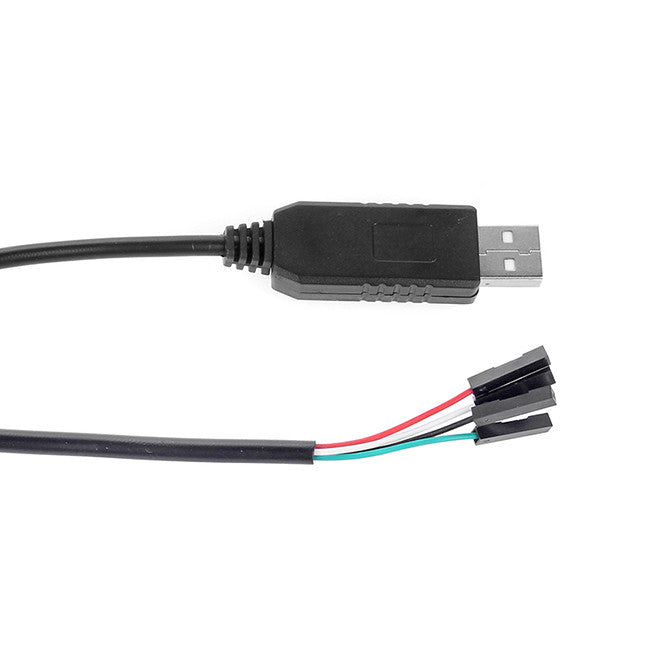

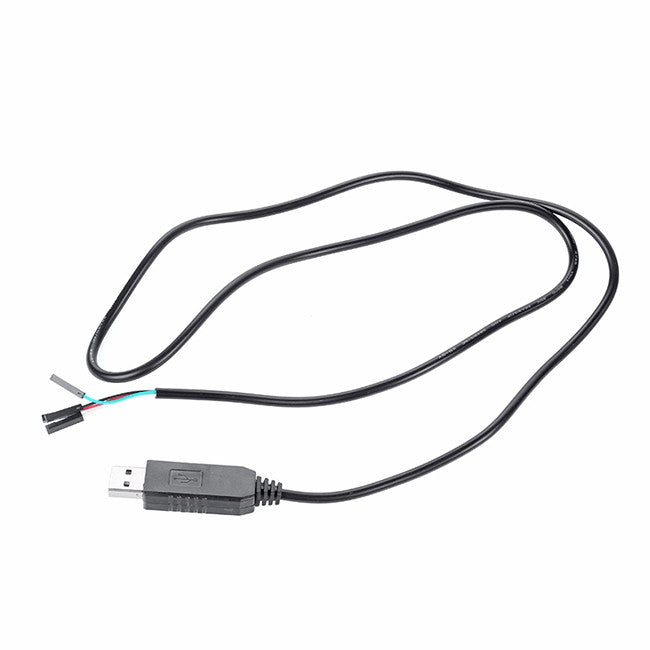

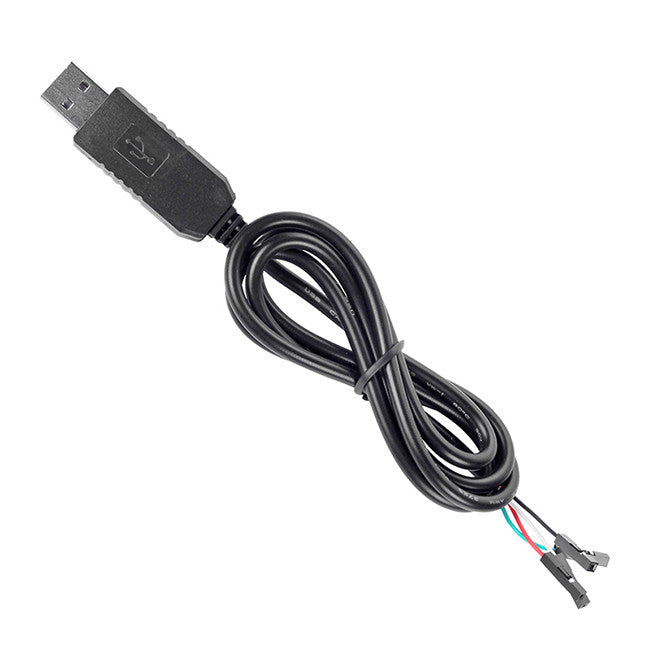

It is easiest way ever to connect to your microcontroller/Raspberry Pi/WiFi router serial console port. Inside the big USB plug is a USB<->Serial conversion chip and at the end of the 36" cable are four wire - red power, black ground, white RX into USB port, and green TX out of the USB port. The power pin provides the 5V @ 500mA direct from the USB port and the RX/TX pins are 3.3V level for interfacing with the most common 3.3V logic level chipsets.

This cable is easier to use than an FTDI cable in many cases because the wires are separated.





Note that : This cable is not good for Arduino re-programming such as a Boarduino, MENTA, Monochron, etc. because it does not have the DTR/RTS wire necessary for initiating the bootloader reboot sequence. For that we suggest an FTDI cable or FTDI friend.



PDF Files



WHAT'S IN THE PACKAGE
  • 1x USB to TTL Serial Cable PL2303HX

Note: The package does not include the raspberry pi board.
