XL400 51 MCU Development Board For ATmel IC XL400 kit Demo System 1602 LCD

brand: SainSmart SKU: 20-025-102
Oops, 0 In Stock

The XL400 is an easy to use Atmel 8051 development system. The XL400 has many features that make your development easy. You can between USB Power supply. The Easy8051B also supports Graphic LCD.

The smart choice for 8051 microcontrollers

XL400 allows the 8051 MCU to be interfaced with external circuits to a broad range of the peripheral devices, allowing the user to concentrate just on the software.

Features of XL400 system:

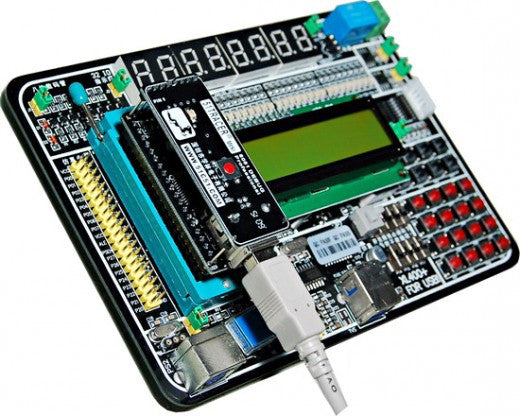

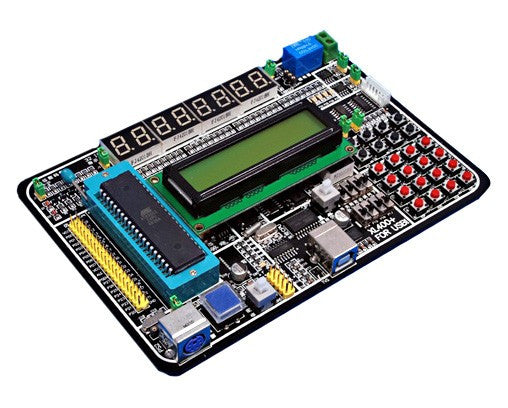

Outlook of XL400 (dark PCB for double faces, the SMT art makes it the most elegant MCU experiment system you have ever seen, luxurious and noble, you will love it at first sight.)

super powerful settings of circuits resources:
(1) 8 digit LED: They could experiment and simulate various calculators and digital indication, including simulating single chip machines as LED-clock etc.
(2)32 LED: could indicate state of all 32 p ports, experiment and simulate various LED experiments.
(3)4*4 matrix keyboard.
(4) 8 keyboards.
(5) Music output speaker. could finish sound type experiment like music playing and alarming.
(6) Relay experiment.
(7) I 2C serial port EEPROM 24C 02: is used for IIC communication experiment.
(8) Serial port EEPROM 93C 46: is the general wire connector of SPI.
(9) 1602LCD. It is more beautiful and professional than lighting tubes and digital tubes.
(10) 128x64 LCD connector: It is 128x64 standard LED mold commonly seen in digital market which we could use it to indicate Chinese and images. Standard Does not include 128*64.
(11) Infrared receiving end connector: It could be used to do infrared decoding experiment or make infrared remote controller.
(12) All the pins of chips are connected with expansion needles which are used to expand more functions. There are no limits to the functions of expanding experiments which are totally determined by users.
(13) The decoding experiment of the 104 button standard keyboard which supports PS/2 connector.
(14) The board contains step motor drive connector: It could be easy to connect the step motor to finish various experiments of the motor, such as the running and reverse running of the motor, etc. Standard Does not include motor.
(15) Serial port clock chip DS1302: SPI serial port clock chip.
(16) Temperature transistor DS18B20 connector: Standard Does not include 18b20.
(17)usb port communication circuit.

A beginner? Do not worry. With an easy-to-learn BASIC syntax, advanced compiler features, built-in routines, and the many practical examples allow a quick start in programming 8051.

Full access to every Flash memory location, RAM location, and SFR for READ/WRITE/ERASE operations. Inline Assembler allows for on-the-fly change of test code. Any changes made using the inline assembler are implemented immediately on the hardware and in real-time. SoftICE works invisibly with the user-friendly Keil Monitor51 driver to ensure the user the most comfortable code development environment.

System requirement and specification:
WINDOWS98/ME/2000/XP/2003/vista operation system.
Minimum 50MB space in hard disk.
At least one USB port.
PCB size: 175* 115 mm.
package size: 140*220* 50 mm.
package weight: 1.1KG.

Package includes :
1).XL400 MCU Development Board Demo System * 1
2).USB cable * 1
3).AT89S52 Chip * 1
4).Remote control * 1
5).Mini 51 Debugger * 1
6).ISP cable * 1
7).CD-ROM * 1 (Programmer Driver , English version PDF User manual , Board Schematic , Sample code (C / ASM) .) Compatible for OS including Windows 98, Windows 2000/NT, Windows XP , Windows 2003 and Vista.)
