Brand: Genmitsu SKU: 101-63-FLRR

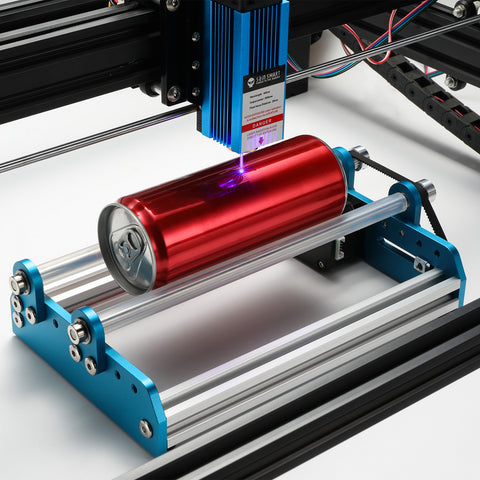

Laser Rotary Roller for Engraving Cylindrical Objects

SKU: 101-63-FLRR 28 reviews Variants ID: 32804704452687
$99.99 $89.99
Save $40.00
Free Shipping

Option
Upgraded Rotary Roller V2
Ship to
USA

Easy Setup

The Upgraded Genmitsu Rotary Roller requires no assembly, and you can easily adjust the roller distance with no tools required.

Improved Engraving Accuracy

High-Quality Machined Rollers make the new rotary more consistent with better engraving accuracy and fewer missed motor steps. The polyurethane coating of the rollers provides an improved grip and eliminates slipping of the item you are engraving.

Supported Material Diameter

5mm - 160mm; Length: 10mm – 195mm. Adjustable Roller Distance: 19mm - 76mm (16 different distances, each one 9.5 mm further than the last).

Wider Material Compatibility

The Genmitsu Rotary Roller V2 now supports a wider range of cylindrical objects, including wine glasses, tumblers, pens, mugs, and more.

Machine Compatibility

The Upgraded Genmitsu Rotary Roller works with most laser engravers and laser cutters on the market. Supports Genmitsu 3018-Pro, 3018-PROVer, 3020-PRO MAX CNC Machines, Jinsoku LC-60A, LE-1620, and LE-5040 Laser Engraver. For Non-Genmistu Machines, please refer to the compatibility checklist in the product description or consult our support team.




  • Plug and PLAY Rotary Add-on for Your Laser Engraver: The Genmitsu FLRR Upgraded Rotary Roller comes pre-assembled for easy setup. In addition, no tools are required for adjusting roller distance, providing you with a smooth out-of-box experience.
  • Improved Roller Design: High-Quality Machined rollers are more consistent and provide higher engraving accuracy with fewer missed motor steps. The polyurethane coat provides more grip and eliminates slipping of the item you engrave.
  • More Compact Size: The overall height of the new Genmitsu Rotary Attachment is 42mm only. With a 20mm height reduction compared to its predecessor, the upgraded version can support more laser engravers and cutters.


Improved Machine & Material Compatibility:

  • Supports Material Diameter: 5mm - 160mm; Length: 10mm – 195mm. Adjustable Roller Distance: 19mm - 76mm (16 different distances, each one 9.5 mm further than the last)
  • Support Small Diameter Material: The Upgraded Genmitsu Rotary Roller now has 16 different adjustable roller distances, you can now engrave small diameter material like pens on it.
  • Support Varied Diameter Material: With the Y-shaped bracket included, you can engrave on materials like wine glasses where the diameter varies from top to bottom.
  • Support Larger Radius Cylinders: The stepper motor of this rotary roller is moved outside, so it will not interfere when engraving larger radius cylinders.
  • Read more about the user manual (Flat Laser Rotary Roller)


Upgrade Version Roller Specification
Engraving Size Cylinder diameter 5mm - 160mm, length 10mm – 195 mm (The Rollers can be set at 16 different distances, each one 9.5 mm further than the last. The adjustable range is 19mm - 76mm.)
Motor NEMA 42 Stepper Motor
Roller Diameter φ16.0mm
Pulse Parameter Setting 101=200 * MicroStep/(Roller Diameter*π) for the Y axis, or 100=200 * MicroStep/(Roller Diameter*π) if it is plugged into the X axis.
Maximum Load Weight 10 KG


High Quality
Genmitsu Laser Rotary Roller Engraving Module is made of premium aluminum instead of acrylic.It is extra durable and long-lasting.
Adjustable
With 5 roller positions, this Laser Rotary Roller is compatible with cylindrical items of different diameters.
Wide Application
Suitable for most kinds of Desktop Laser Engravers. Perfect for engraving cylindrical Objects such as cans or any curved surface.
Specification:

Material: Aluminum
Motor: NEMA17 34mm Stepper Motor
Pulse parameter setting: 84PULSE/mm
Maximum load: 5 kg
Phase current: 1.3A
External dimensions: 270 mm * 145 mm * 65 mm


FAQ

The laser rotary roller can work with the 3018-PRO and 3018-PROVer series, 4040-PRO, 4040 Reno CNC router. Before using this, please disassemble the aluminum plate.

It is not compatible with the LC-40 Laser Machine, PROVerXL series CNCs.


Package List:

1 x Genmitsu Laser Rotary Roller Engraving Module

1 x User  Manual
