Name: [Hide] DSO213 4-Channels Handheld Mini Digital Oscilloscope
Brand: SainSmart
SKU: 101-10-601-Sec
Price: 139.50 USD
Availability: OutOfStock
Rating: 5 (2 reviews)

Save $80.49

[Hide] DSO213 4-Channels Handheld Mini Digital Oscilloscope

Brand: SainSmart SKU: 101-10-601-Sec

[Hide] DSO213 4-Channels Handheld Mini Digital Oscilloscope

SKU: 101-10-601-Sec 2

$139.50 $219.99

Save $80.49

Free Shipping

*Final Sale, no exchange or return. 6-Month Warranty.

Upgrade Version

DSO213 is the latest oscilloscope in the family of SainSmart DSO oscilloscope. Compared with DSO203, DSO213 upgrades its analog bandwidth to 15MHz (DSO203 is 8MHz) and max sample rate to 100MSa/s (DSO203 is 72MSa/s)

Color Display

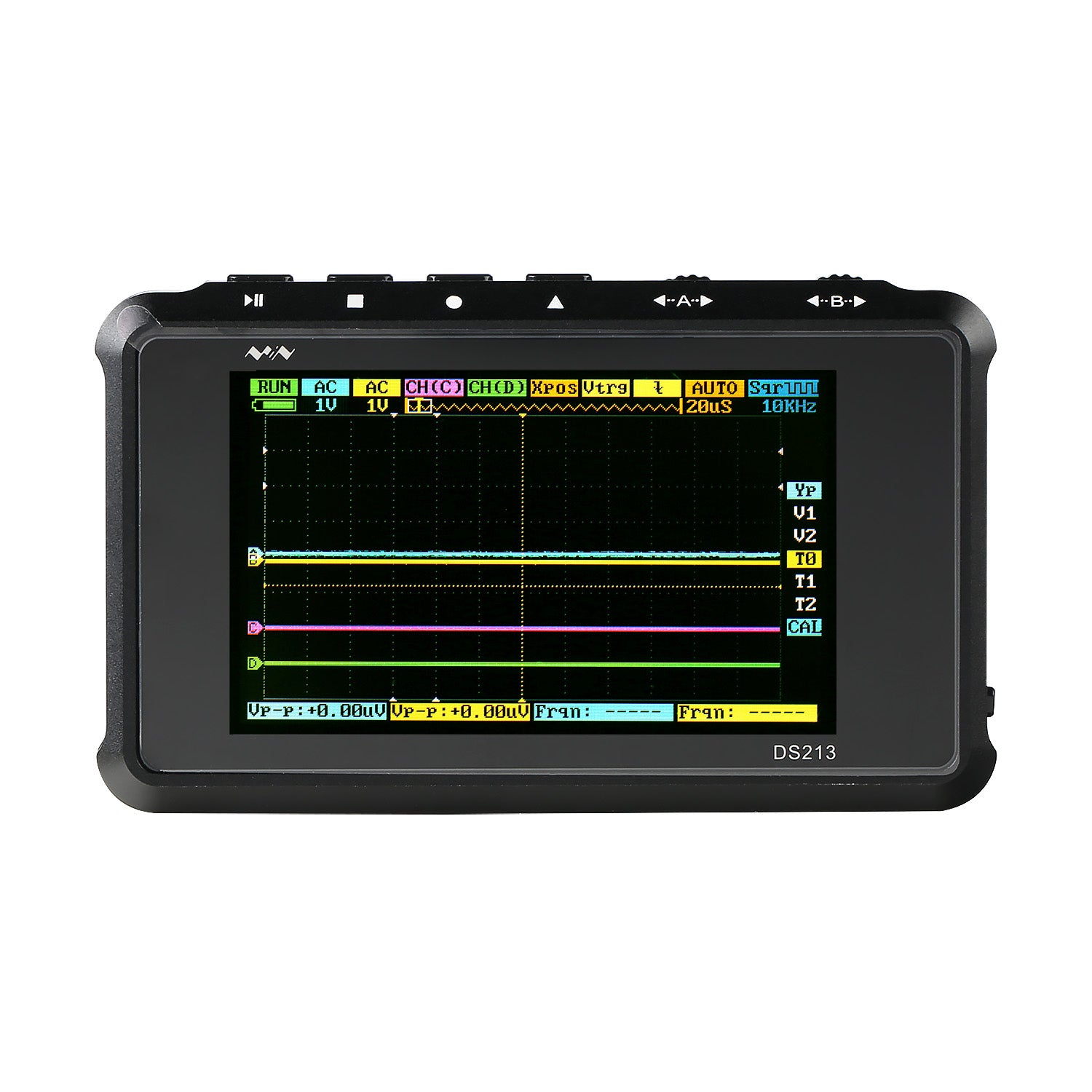

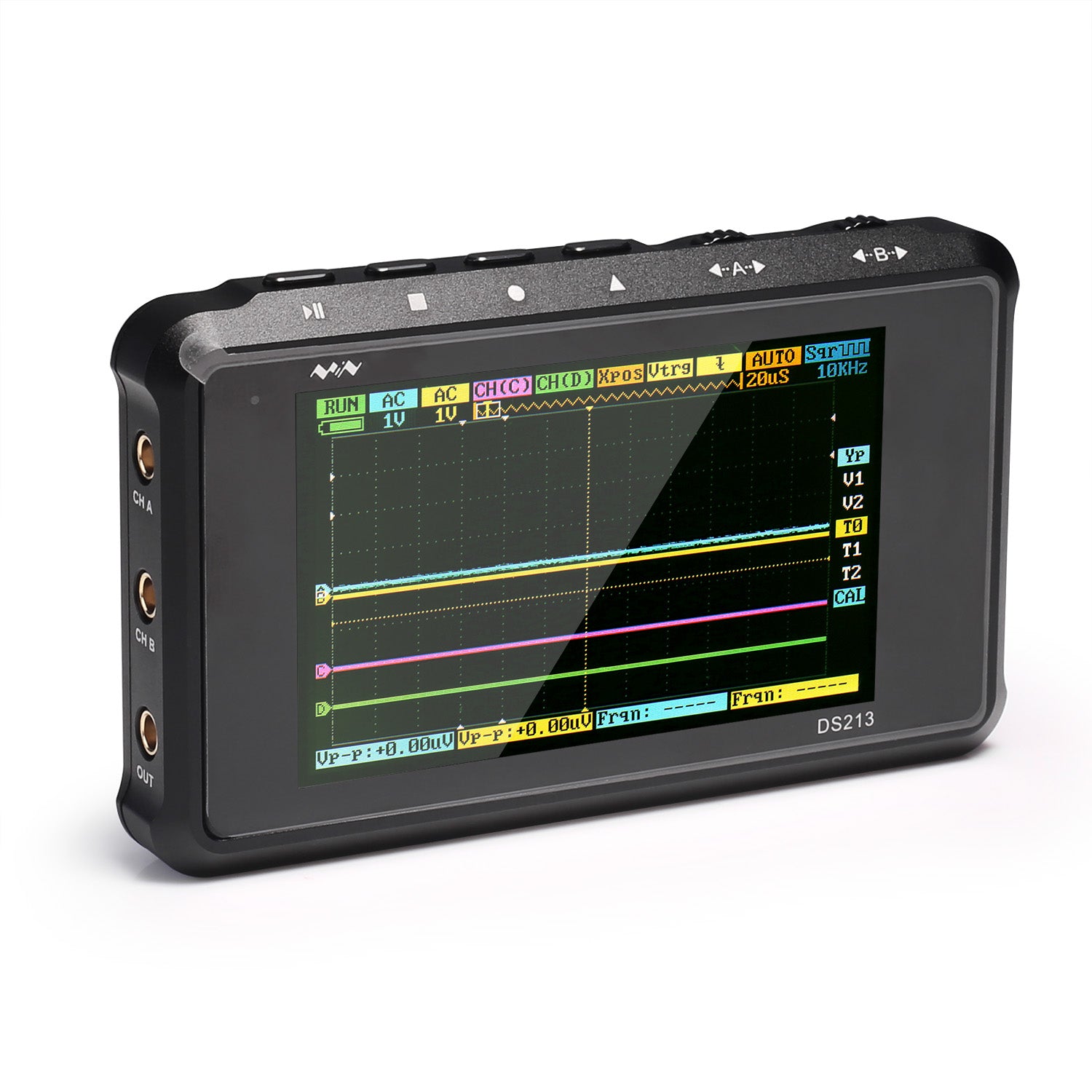

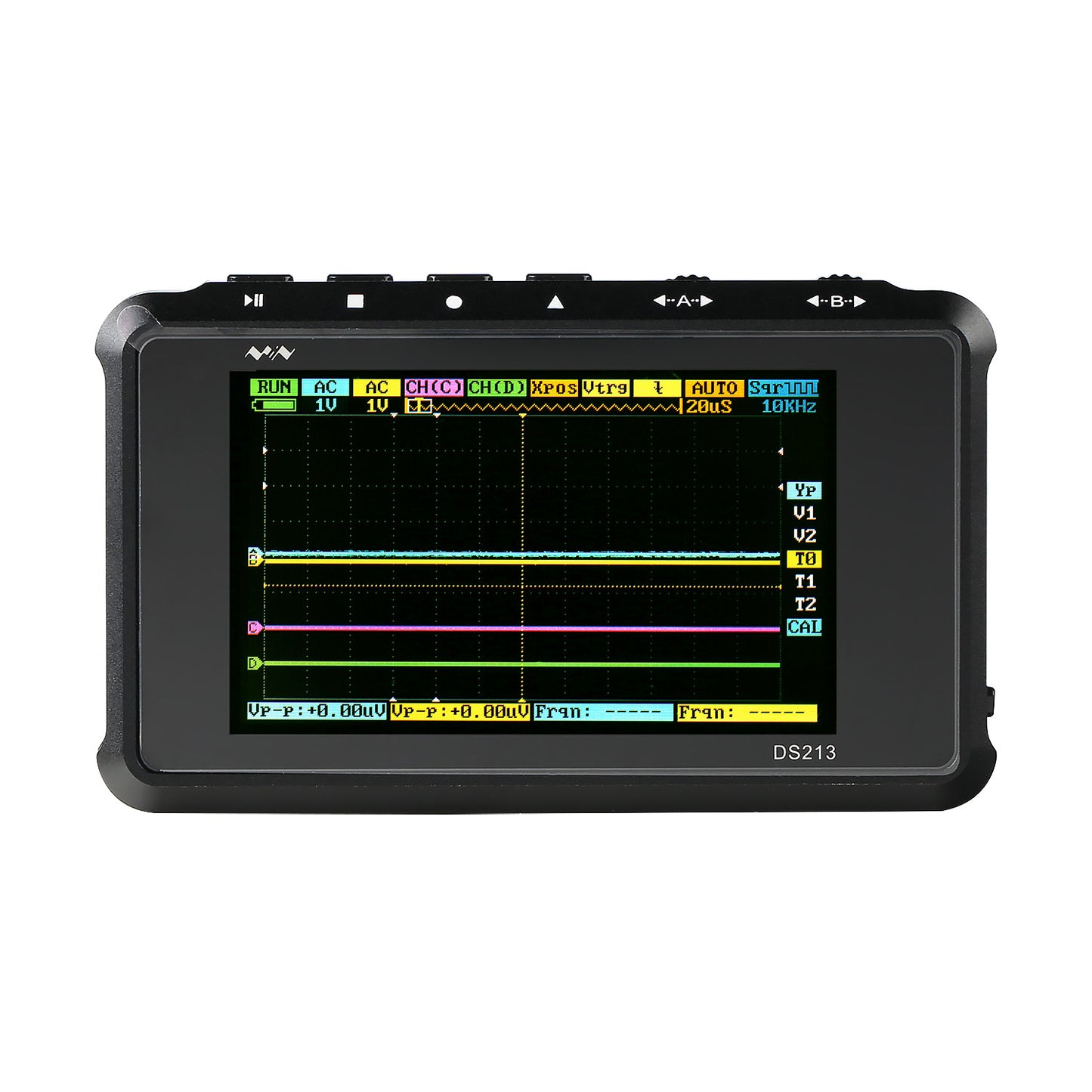

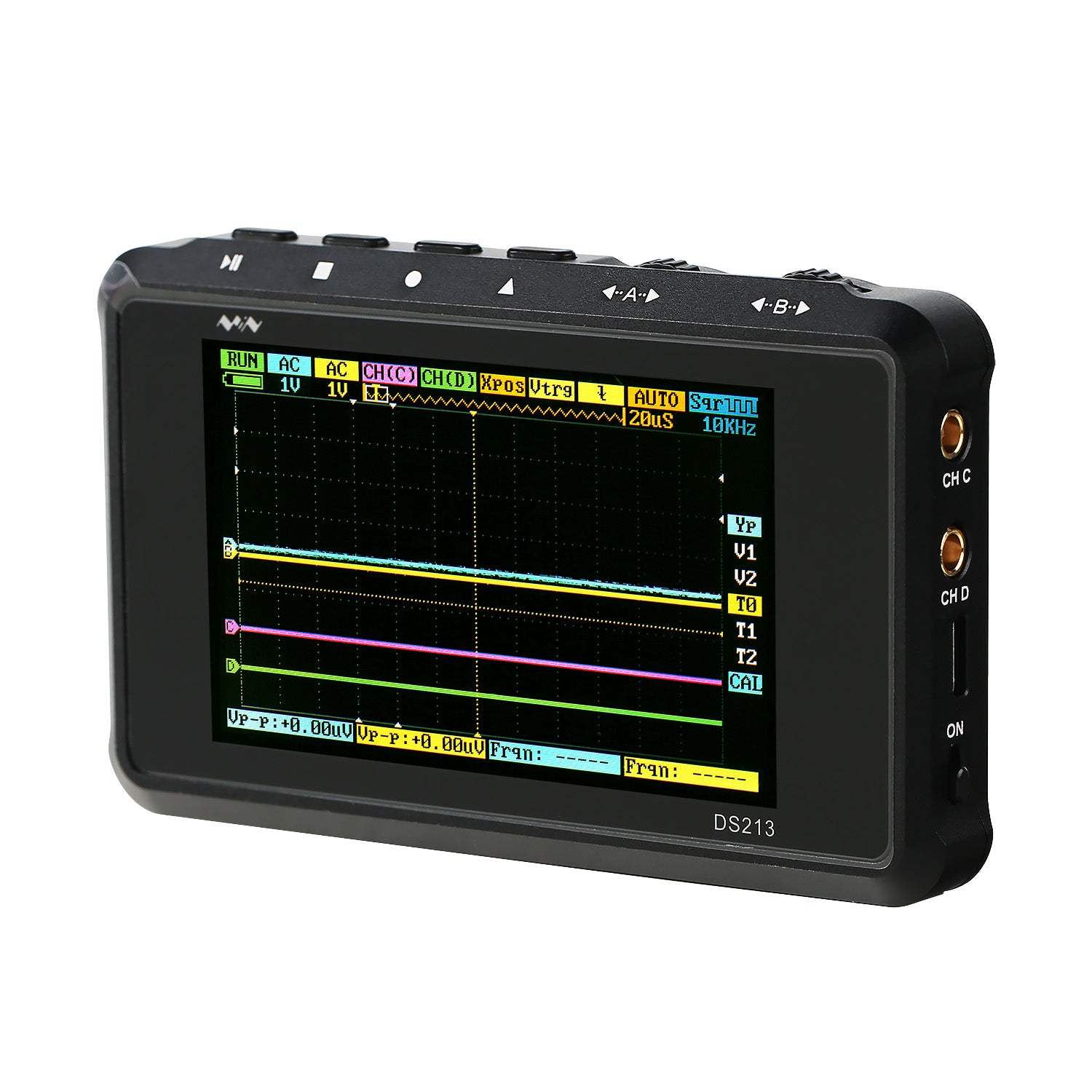

Equipped with a 3 inch 400x240 color display, it presents any measured AC current, including sine, square, sawtooth, and triangle waveforms.

Simple to Use

Operation is simple and easy, just like play a smartphone.

Portable

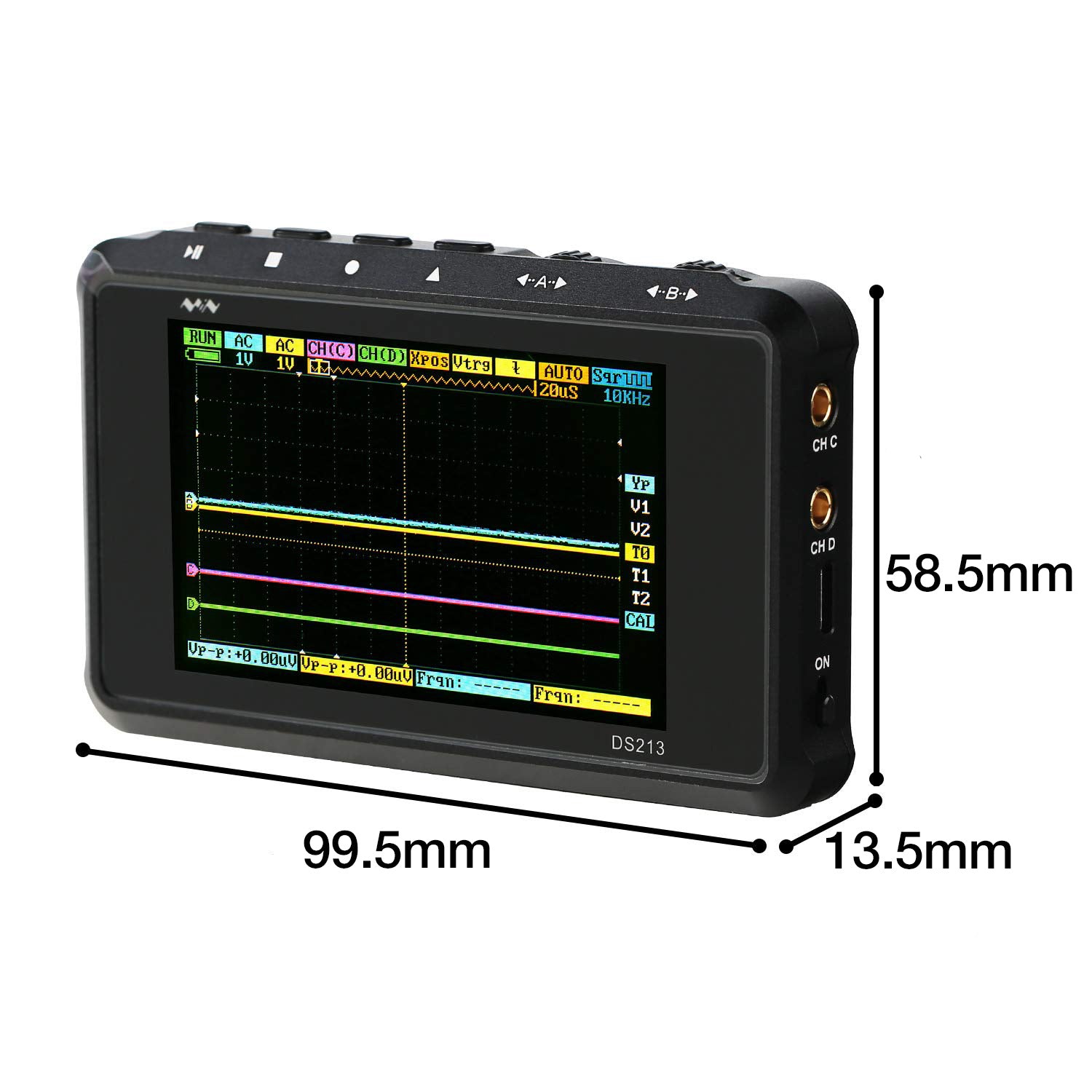

Its small form factor conveniently fits inside any pocket so it’s always ready when you need it.

Easy Saving

The built-in 8 MB flash storage makes saving and transferring waveform images easier than ever.

Quantity

*Final Sale, no exchange or return. 6-Month Warranty.

Upgrade Version

DSO213 is the latest oscilloscope in the family of SainSmart DSO oscilloscope. Compared with DSO203, DSO213 upgrades its analog bandwidth to 15MHz (DSO203 is 8MHz) and max sample rate to 100MSa/s (DSO203 is 72MSa/s)

Color Display

Equipped with a 3 inch 400x240 color display, it presents any measured AC current, including sine, square, sawtooth, and triangle waveforms.

Simple to Use

Operation is simple and easy, just like play a smartphone.

Portable

Its small form factor conveniently fits inside any pocket so it’s always ready when you need it.

Easy Saving

The built-in 8 MB flash storage makes saving and transferring waveform images easier than ever.

DESCRIPTION

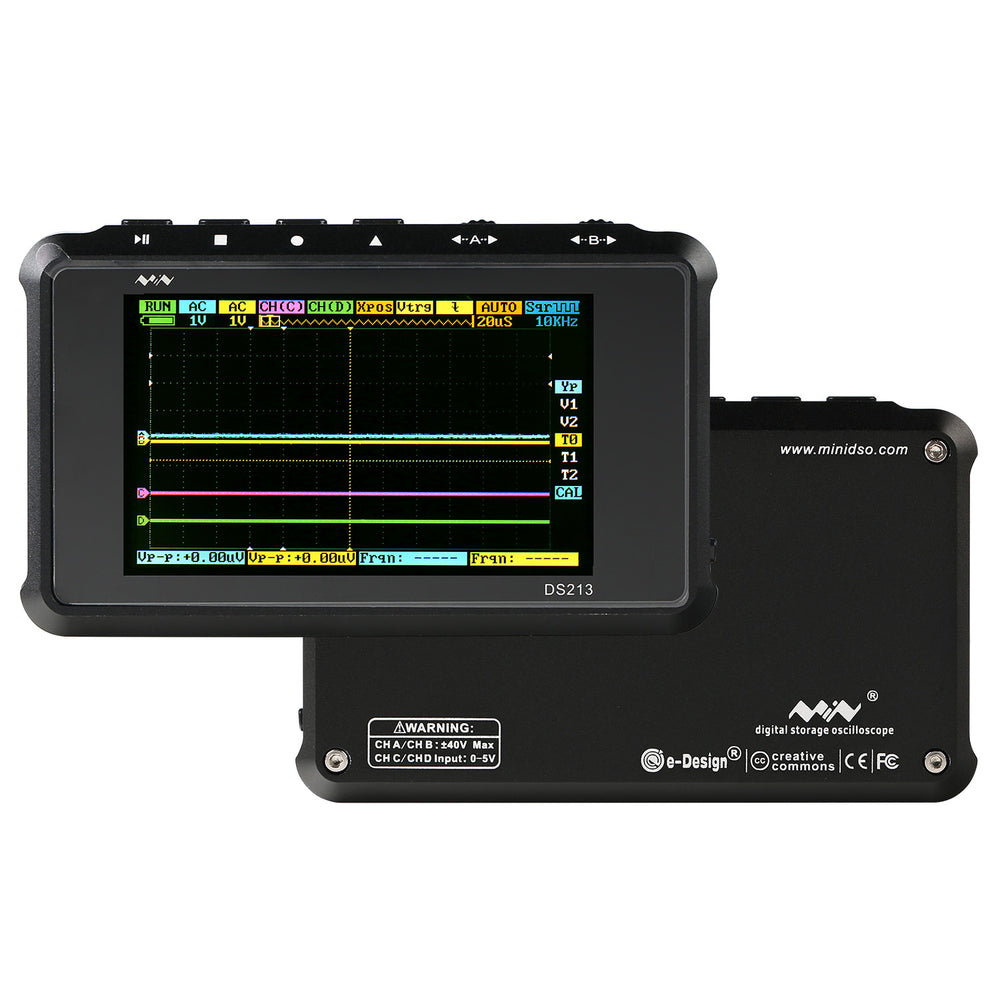

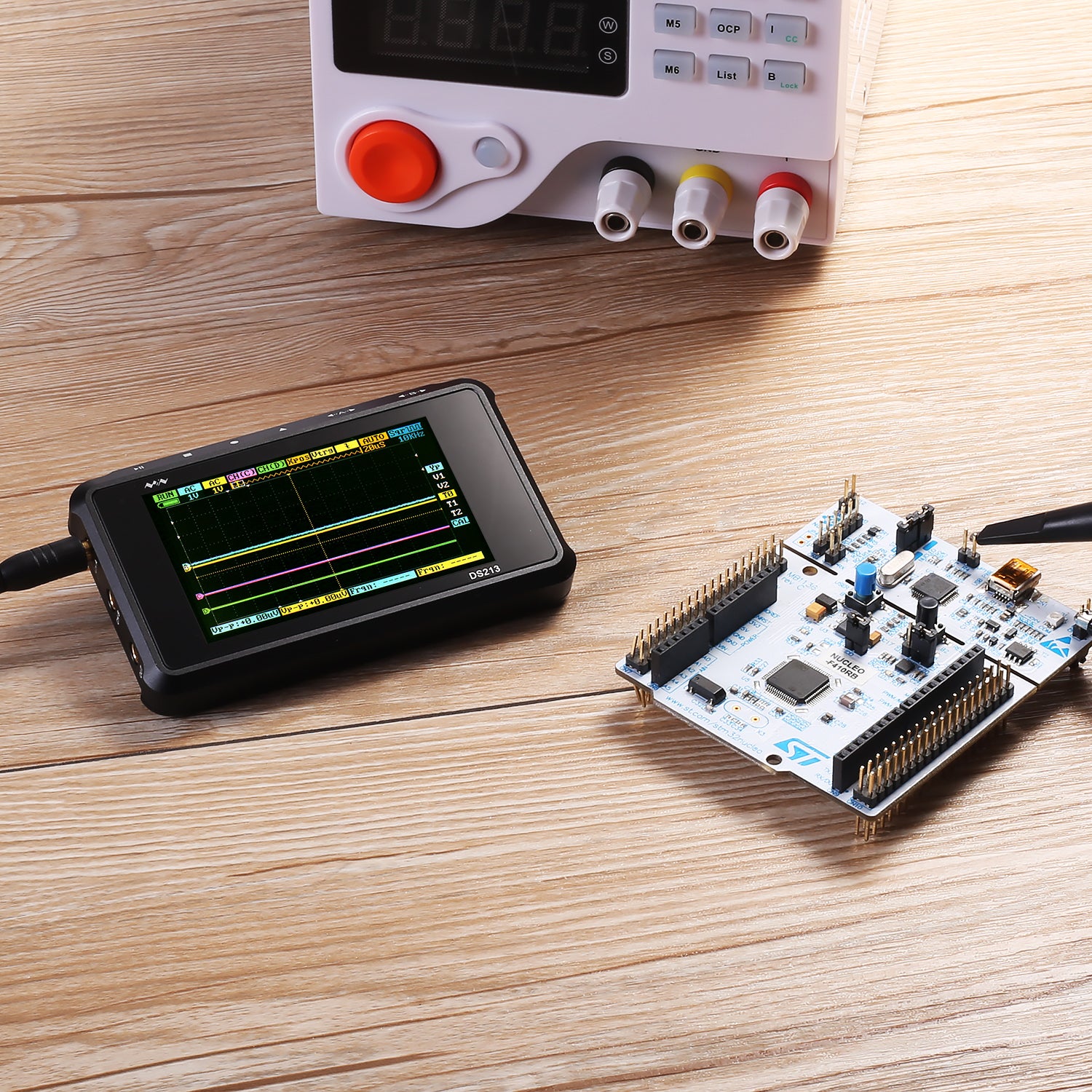

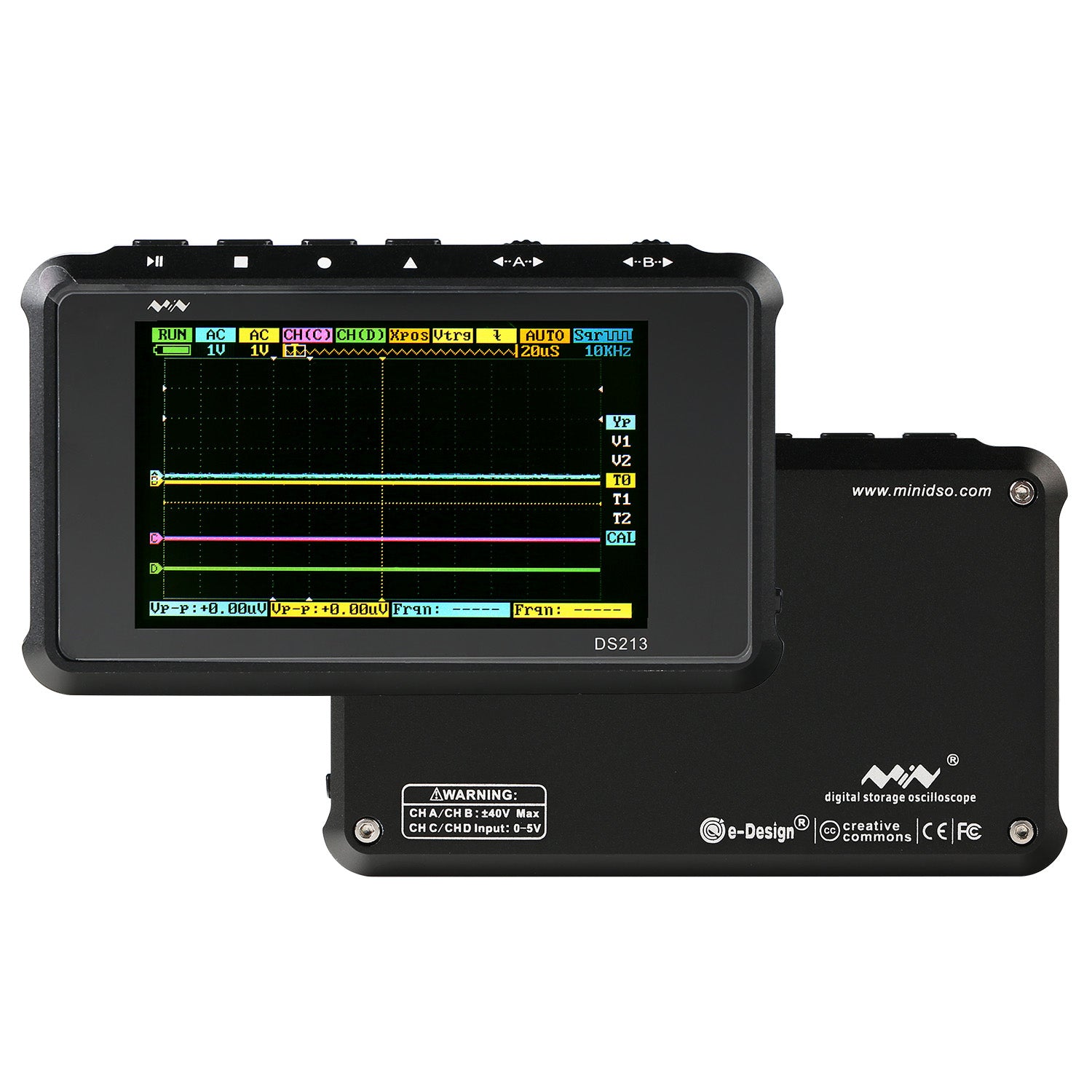

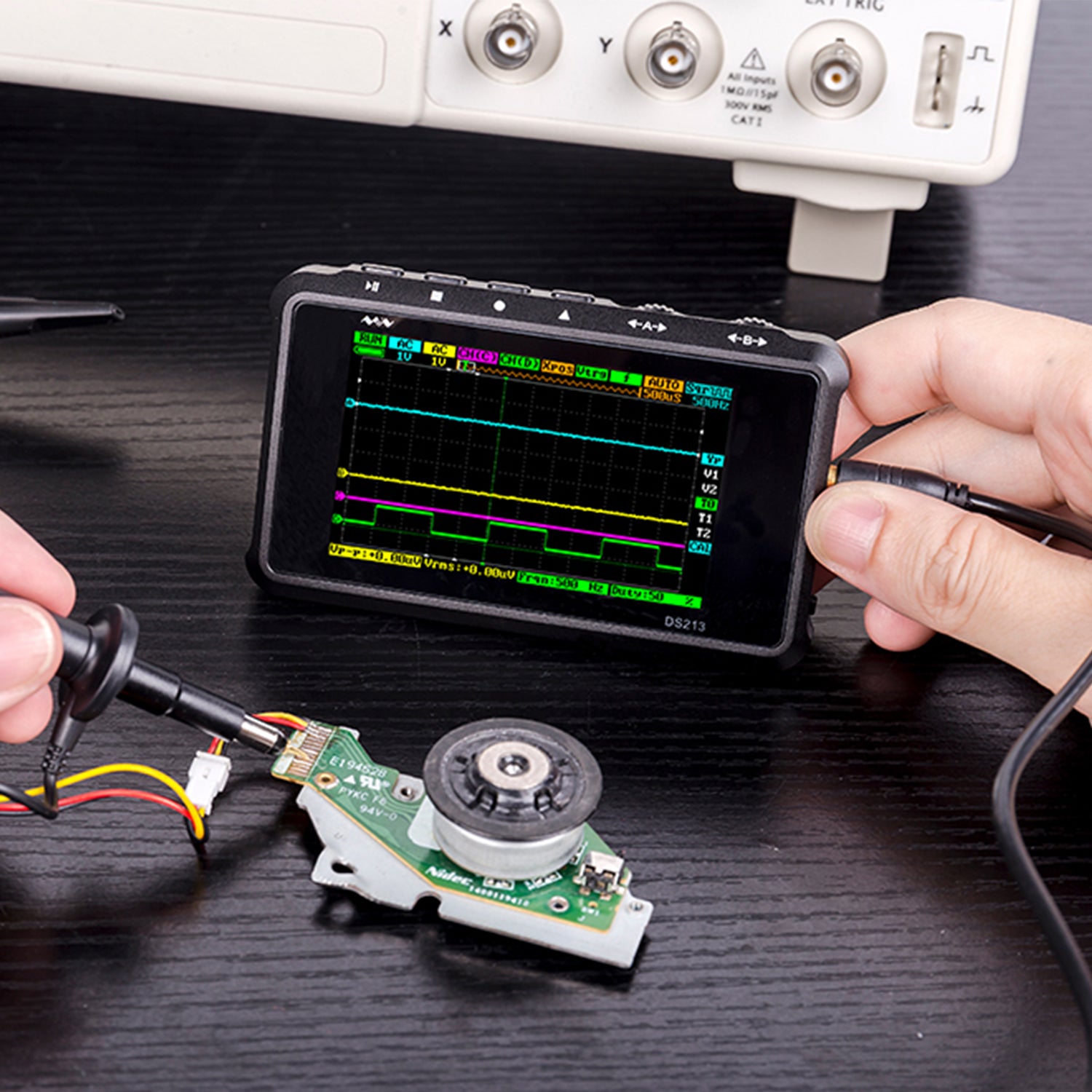

DSO213 is a pocket size 4-channel digital storage oscilloscope for common electronic engineering tasks. It also provides 4 application areas, convenient for users to load and upgrade at most 4 different application firmware. Equipped with the newest ADC, the analog bandwidth is up to 15MHz and max sample rate is up to 100 MSa/s.

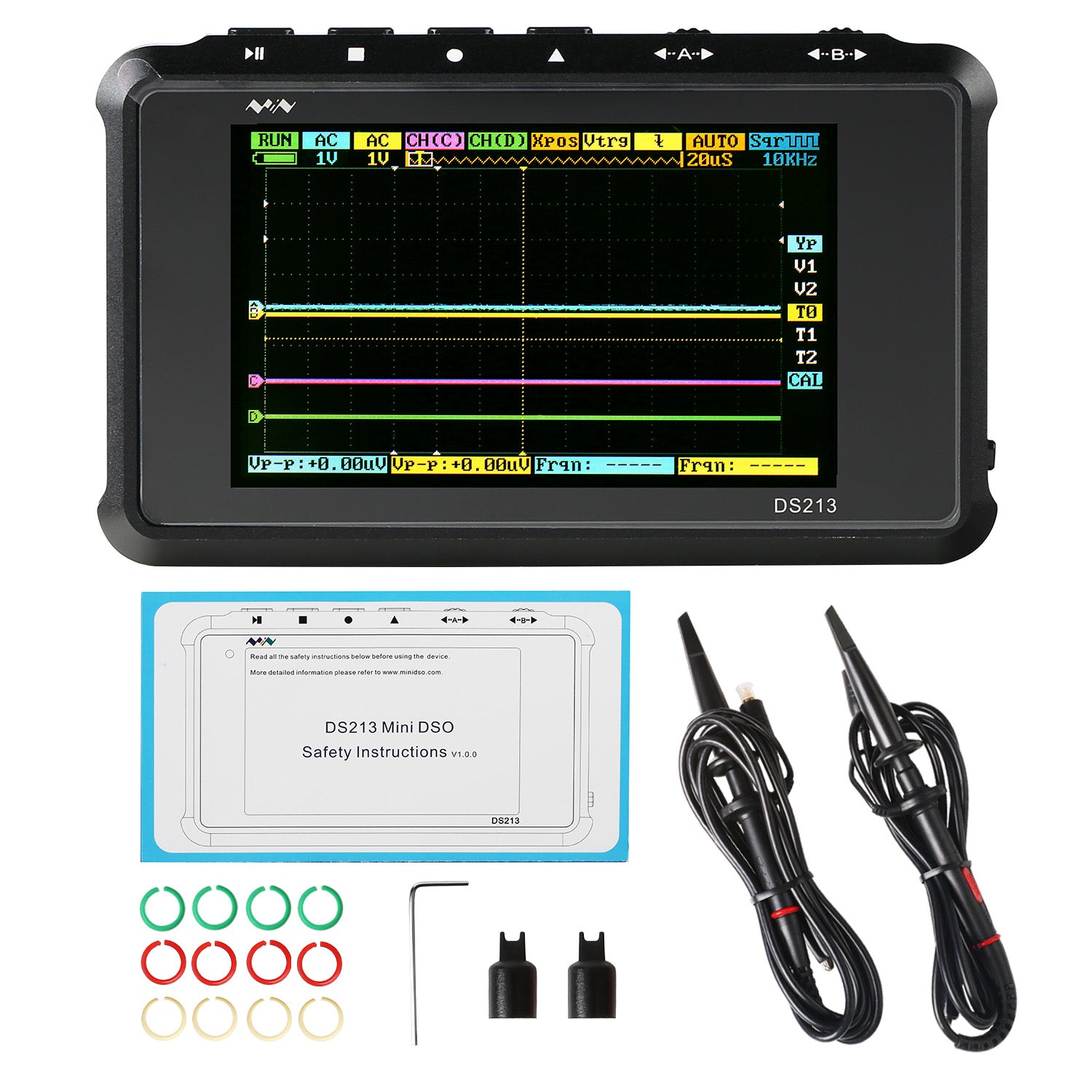

WHAT'S IN THE PACKAGE

SainSmart DSO213 Oscilloscope
X10 Probe Analyzer ×1
X1 Probe Analyzer ×1
Safety Instructions ×1
Hex Key ×1

Comparison between DSO213 & DSO203

Model	DSO213	DSO203
MCU	STM32F103VE	STM32F103VE

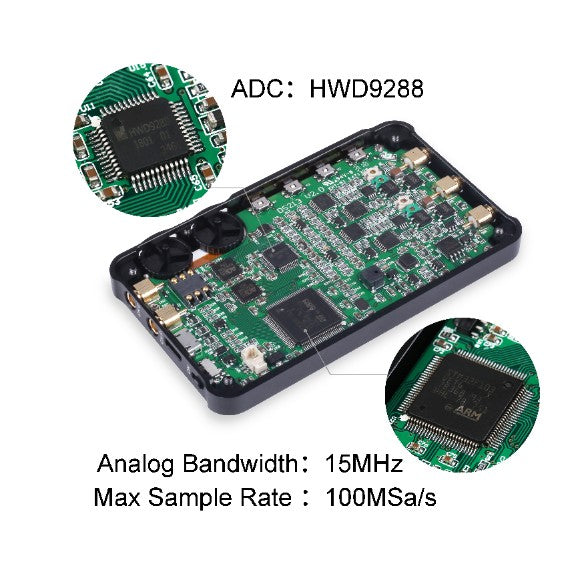

ADC	HWD9288	AD9288

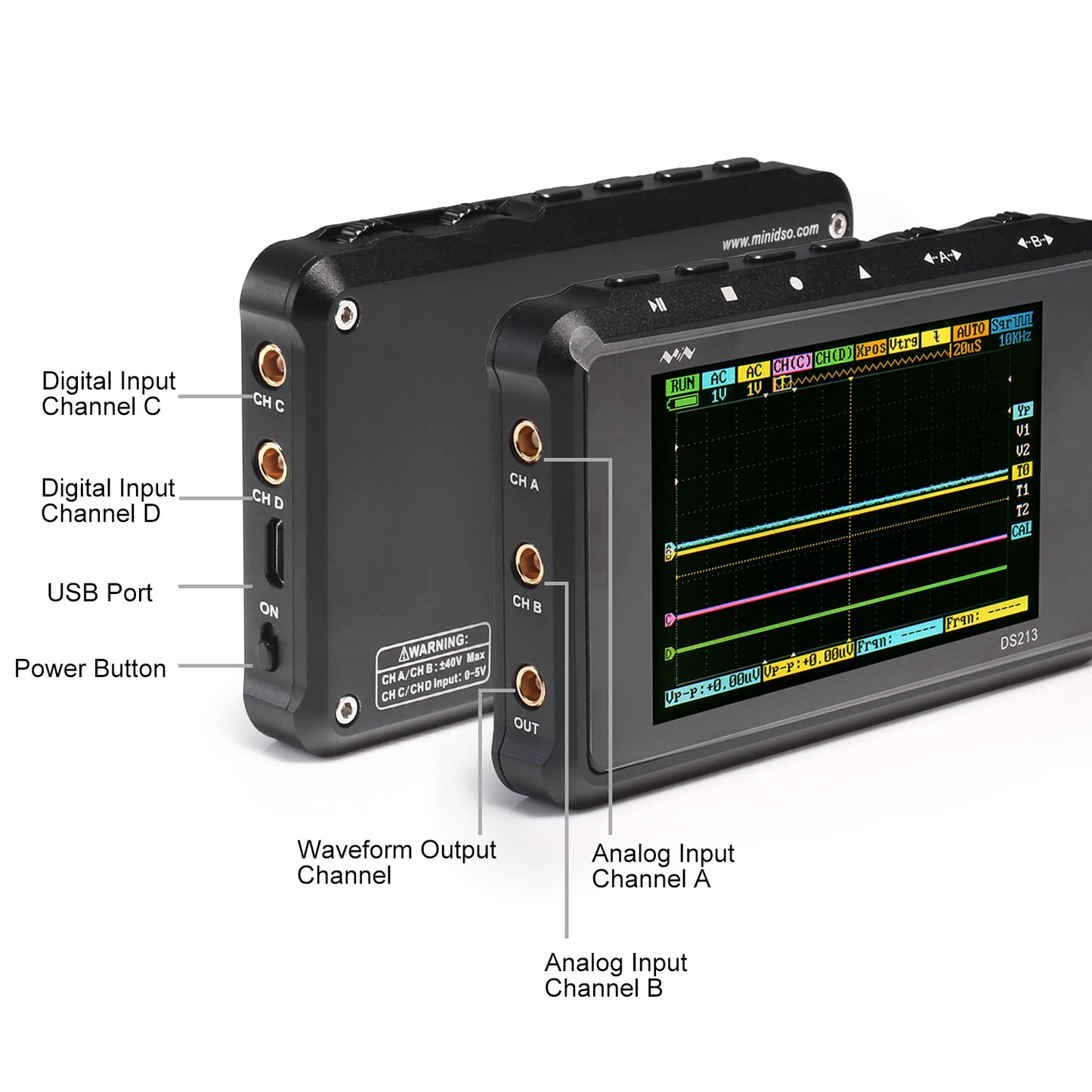

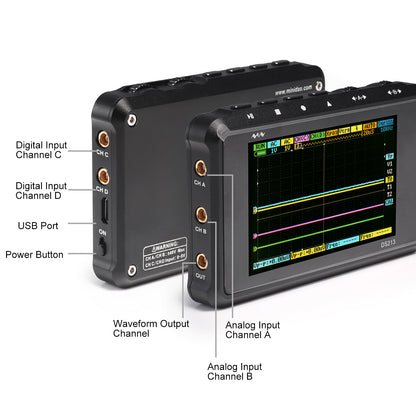

Channels	2 analog, 2 digital	2 analog, 2 digital
Analog Bandwidth	15MHz	8MHz
Max Sample Rate	100MSa/s	72MSa/s
Maximum Memory Depth	4K	4K
Horizontal Sensitivity	100nS/Div~1S/Div(1-2-5sequence step)	0.1uS/Div~1S/Div(1-2-5sequence step)
Vertical Sensitivity	10mv/Div~10V/Div(1-2-5sequence step)	50mv/Div~10V/Div(1-2-5sequence step)
Input Resistance	1MΩ	1MΩ
Coupling	DC / AC	DC / AC
Auto Adjustment Mode	NO	NO
Calculation Waveforms	-A,-B,A+B,A-B RecA,RecB,RecC	-A,-B,A+B,A-B RecA,RecB,RecC
Storage	8MB USB flash disk memory	8MB USB flash disk memory
APP Installed	2	4

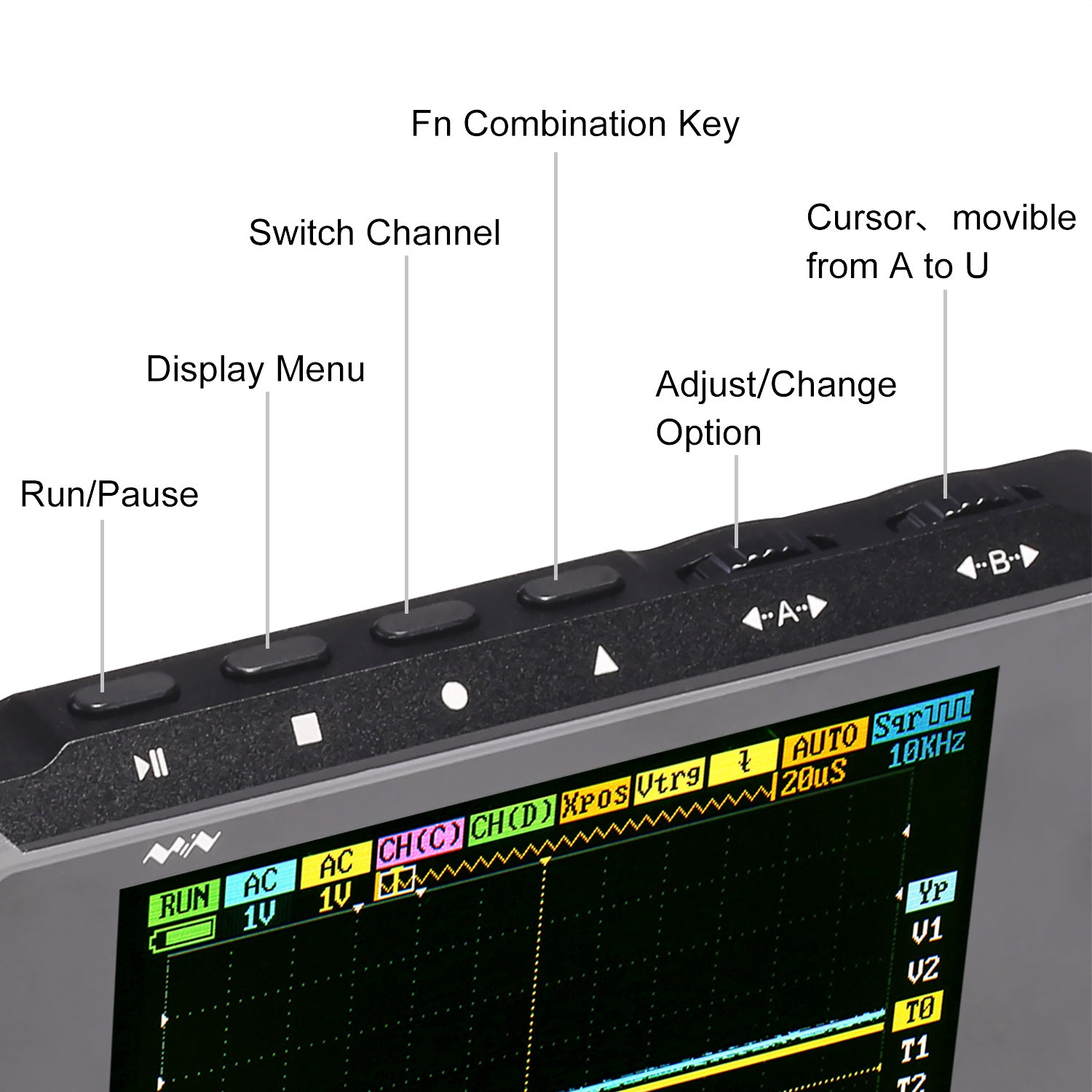

Operation	buttons, scrollers	buttons, scrollers
USB Interface	Micro USB	Mini USB
Battery	1000mAh	1000mAh
Screen Size	3.0inch	3.0inch
Screen Resolution	400 × 240	400 × 240
Open Source	Application layer Open-Source	Application layer Open-Source
