3020-PRO MAX V2 CNC Router for Metal Carving and Cutting
Introducing Genmitsu 3020-PRO MAX V2 CNC Router
The Genmitsu 3020-PRO MAX V2 CNC router boasts a stronger build with a dual steel X-axis rail and improved Z-axis for stability. It includes pre-assembled parts, upgraded drivers for better performance, and additional ports for lasers and other functions. This all-inclusive package offers a complete CNC solution.
Upgraded Structure

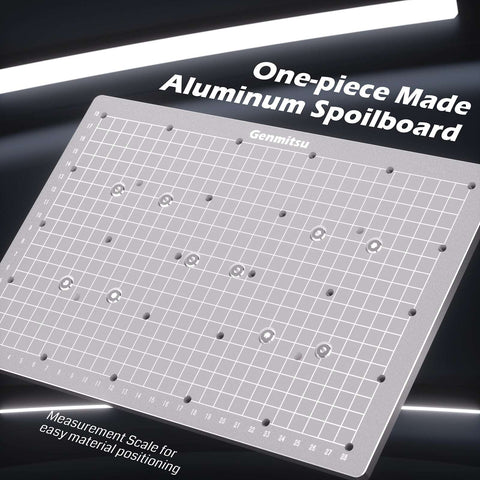

The 3020-PRO MAX V2 builds upon the solid foundation of its original frame with its robust 4040 Y-axis profile and one-piece machined and molded aluminum spoilboard with measurement scale. Now featuring an upgraded dual steel X-axis guide rail with an enclosed mold material and a new X-axis back plate, resulting in a significantly more stable design.
Improves Stability
The 3020-PRO MAX V2 CNC router features upgraded components, including a robust 4040 Y-axis profile and a one-piece machined and molded aluminum spoilboard with a measurement scale. The integrated molded Z-axis C-mount improves stability, and the optimized layout maximizes workspace utilization.
New Z Axis Assemblyy

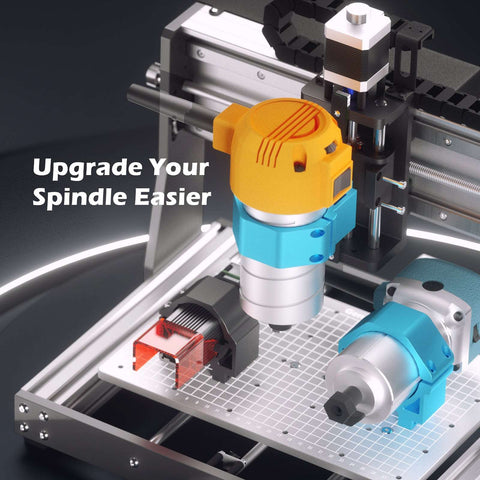

The integrated molded Z-axis C-mount significantly improves stability compared to the previous design.The new Z-axis structure makes upgrading the spindle easier than before.
Expanded Functionality
While remaining based on open-source Grbl V1.1, the 3020-PRO MAX V2 CNC router has been upgraded with high-powered Toshiba TB6S109 drivers featuring 32-bit chips, resulting in improved performance. The upgrades include the addition of extended function ports, such as a dedicated 3 Pin Laser Port, Air Assistance Pump Port, and MPG Port, providing users with enhanced versatility and options for various applications.
Versatility for Various Materials
The 3020 V2 boasts a design that allows it to work with a wider range of materials compared to hobbyist CNC machines. While primarily intended for wood, acrylic, and PCB, it can be used for soft metal carving with proper precautions.
Specifications
Model | 3020-PRO MAX | 3020-PRO MAX V2 |
Effective Working Range |
300 x 200 x 72mm (11.81” x 7.87” x 2.83”) |
300 x 205 x 78mm (11.81” x 8.07” x 3.07”) |
Running Accuracy | ≤ ±0.1mm | ≤ ±0.1mm |
Repositioning Accuracy | ≤ ±0.1mm | ≤ ±0.1mm |
Max Speed | 2000mm/min | 2000mm/min |
X axis Structure | Dual steel X axis guide rails | Dual steel X-axis guide rail with an enclosed mold material and added X-axis back plate |
Upgrade to bigger spindle mount | X | Easy upgrade to 65mm or 69mm |

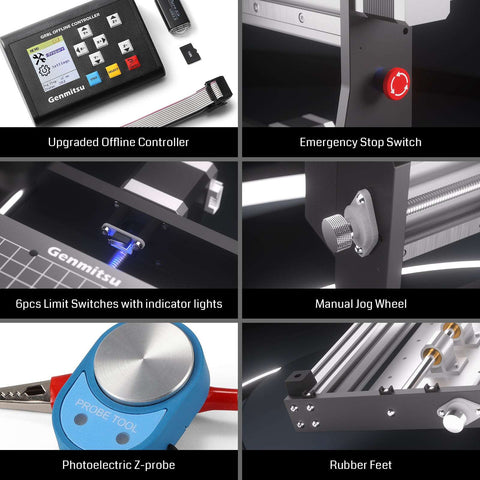

Limit Switches | X-, Y-, Z- (total 3 pieces) | X+, X-, Y+, Y-, Z+, Z- (total 6 pieces) |
Driver Chip | A4988, 8 bits | TB67S109, 32 bits |
MPG Port | X | √ |
Air Assistance Pump Port | X | √ |
Z-Probe | Normal Z-Probe | Photoelectric Z-probe with indicator |
Offline Controller included | √ | Upgraded Version |
Control Board Pre Assembled | X | √ |
Emergency-Stop Pre Assembled | X | √ |
Limit Switches Pre Assembled | X | √ |
Cable Management Pre Assembled | X | Pre assembled with drag chain |

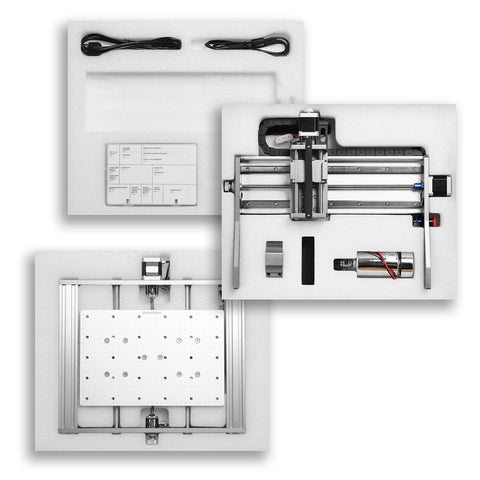

What's in the box
- 1x XY Axis Base Assembly & X-axis Assembly
- 1x Spindle & Spindle Motor Mount
- 1x Offline Controller & Cable
- 1x USB A-to-B Cable
- 1x Power Cord (US/EU/UK)
- 1x Limit Switch (X&Y-axis)
- 1x Z-Probe Kit
- 1x ER11 1/8” Collet
- 4x Clamp Kit
- 10x 20-degree V Bit
- Screws & Cable Tie Allen Wrench
- User Manual
Resource
Find more help articles at SainSmart Resource Center 3020-PRO MAX V2 resources
