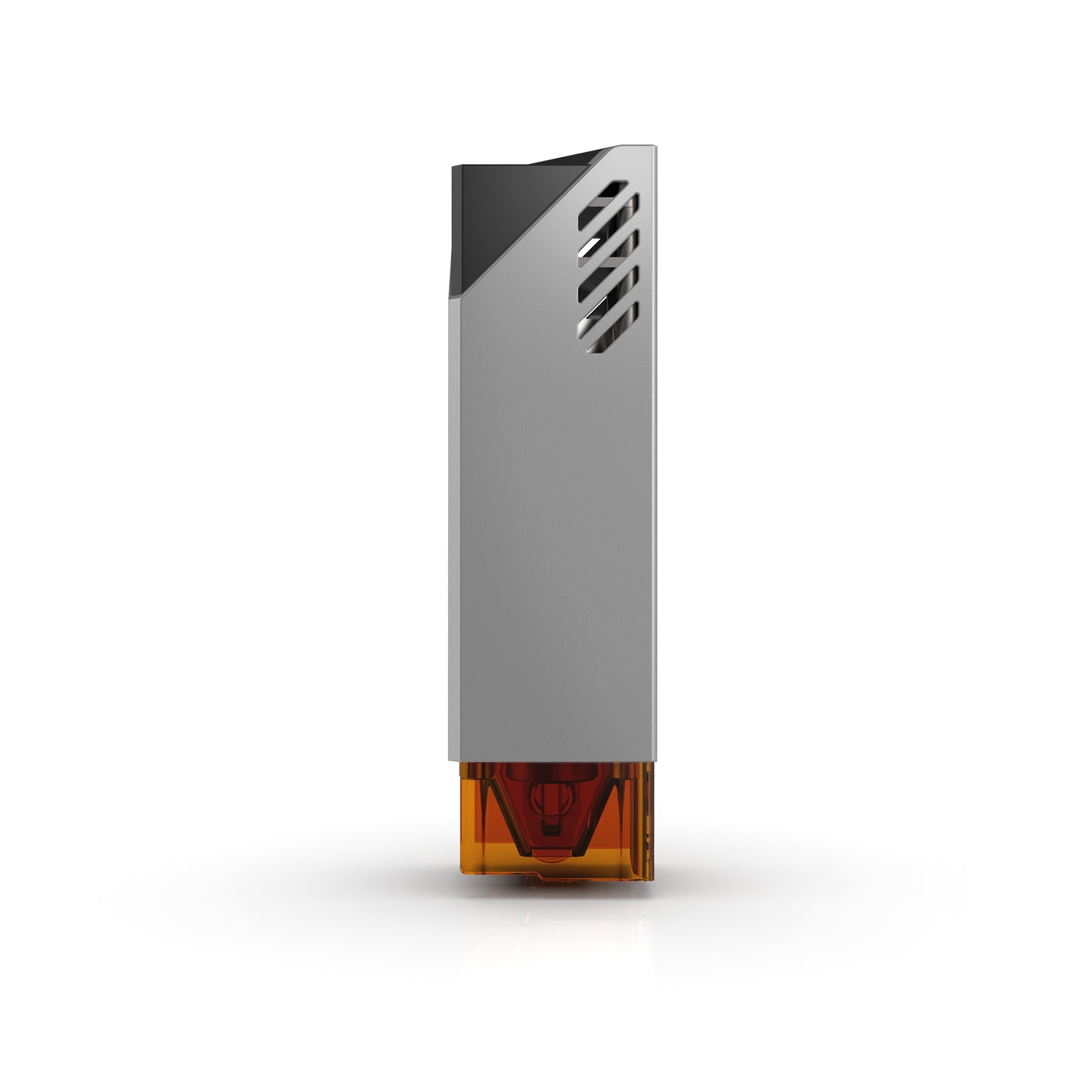

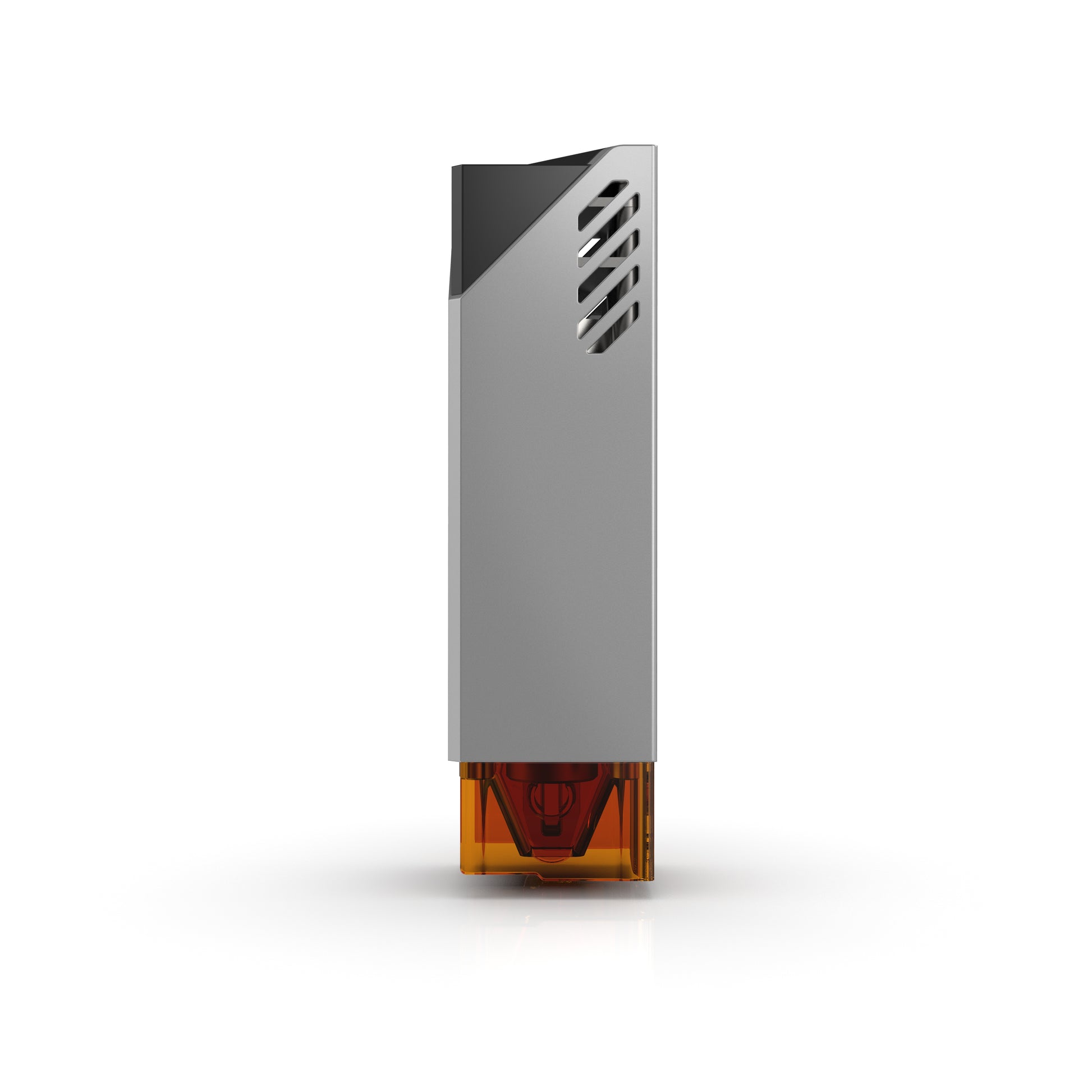

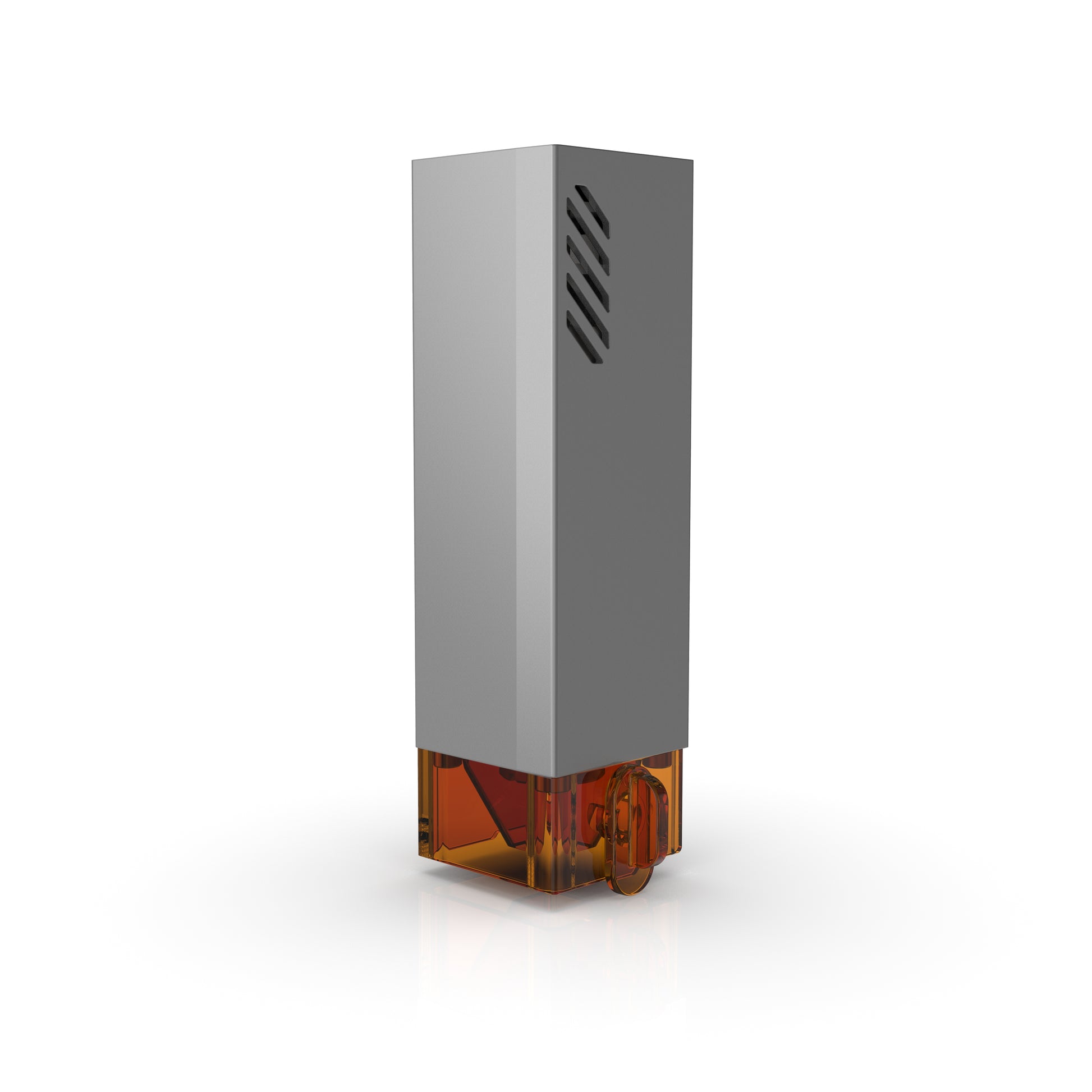

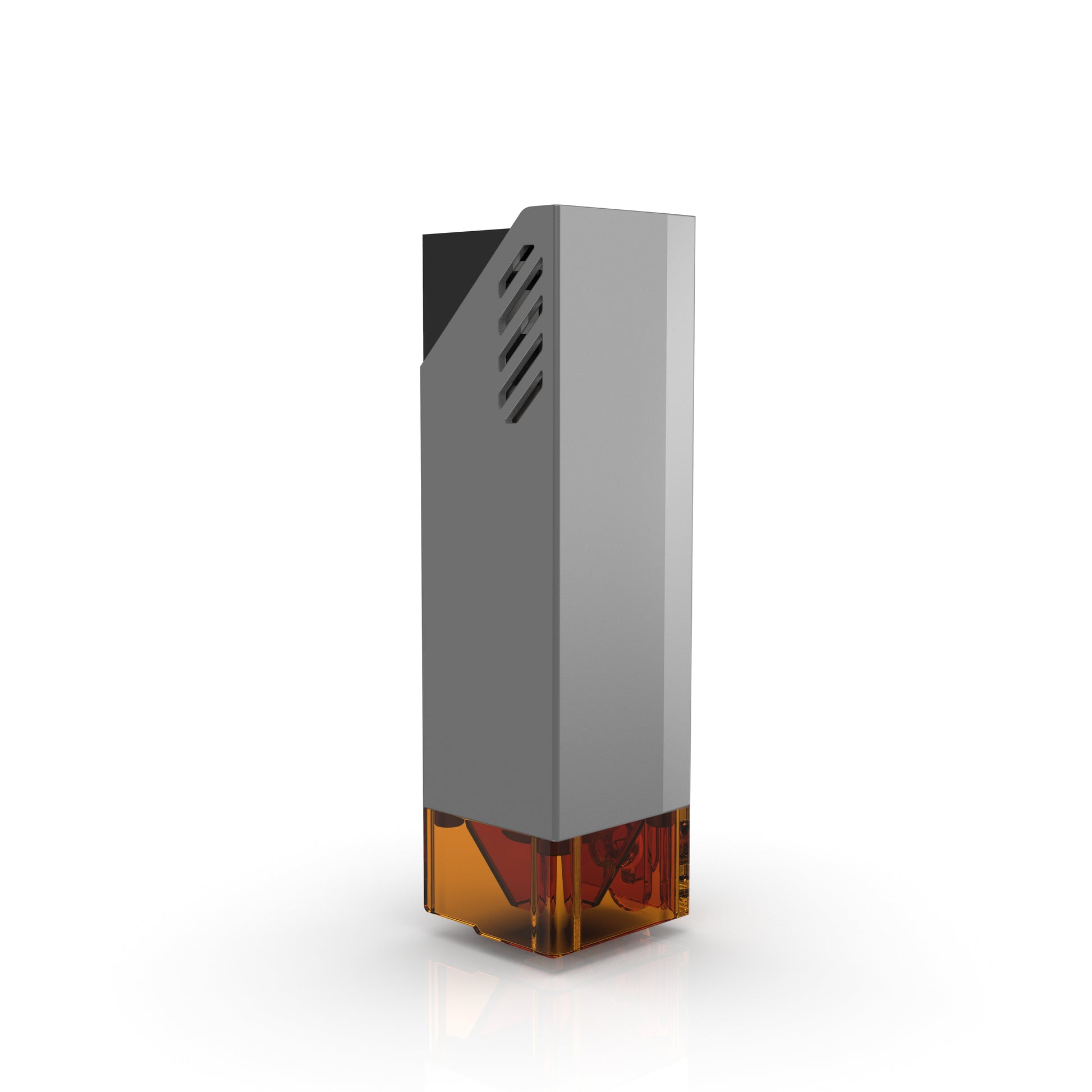

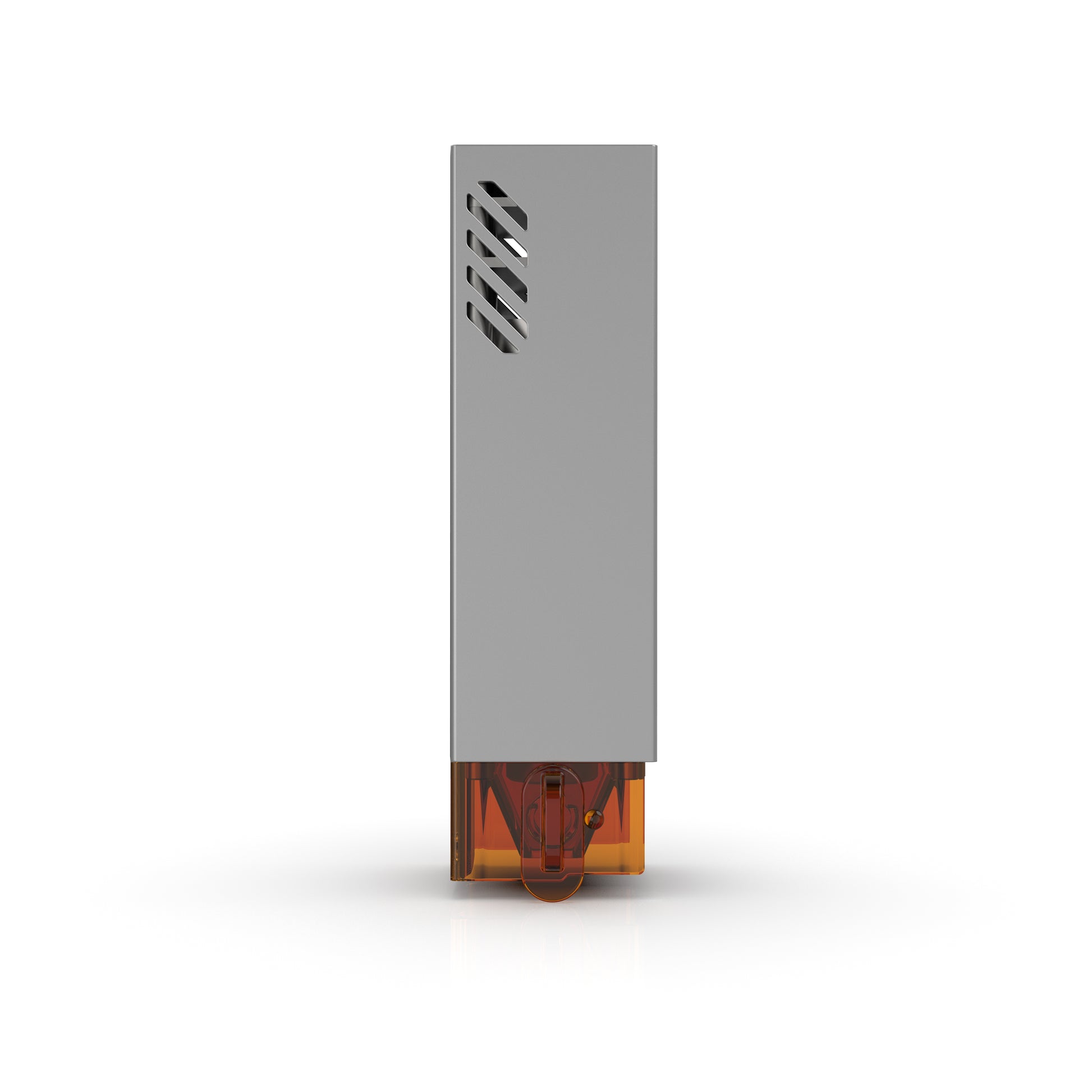

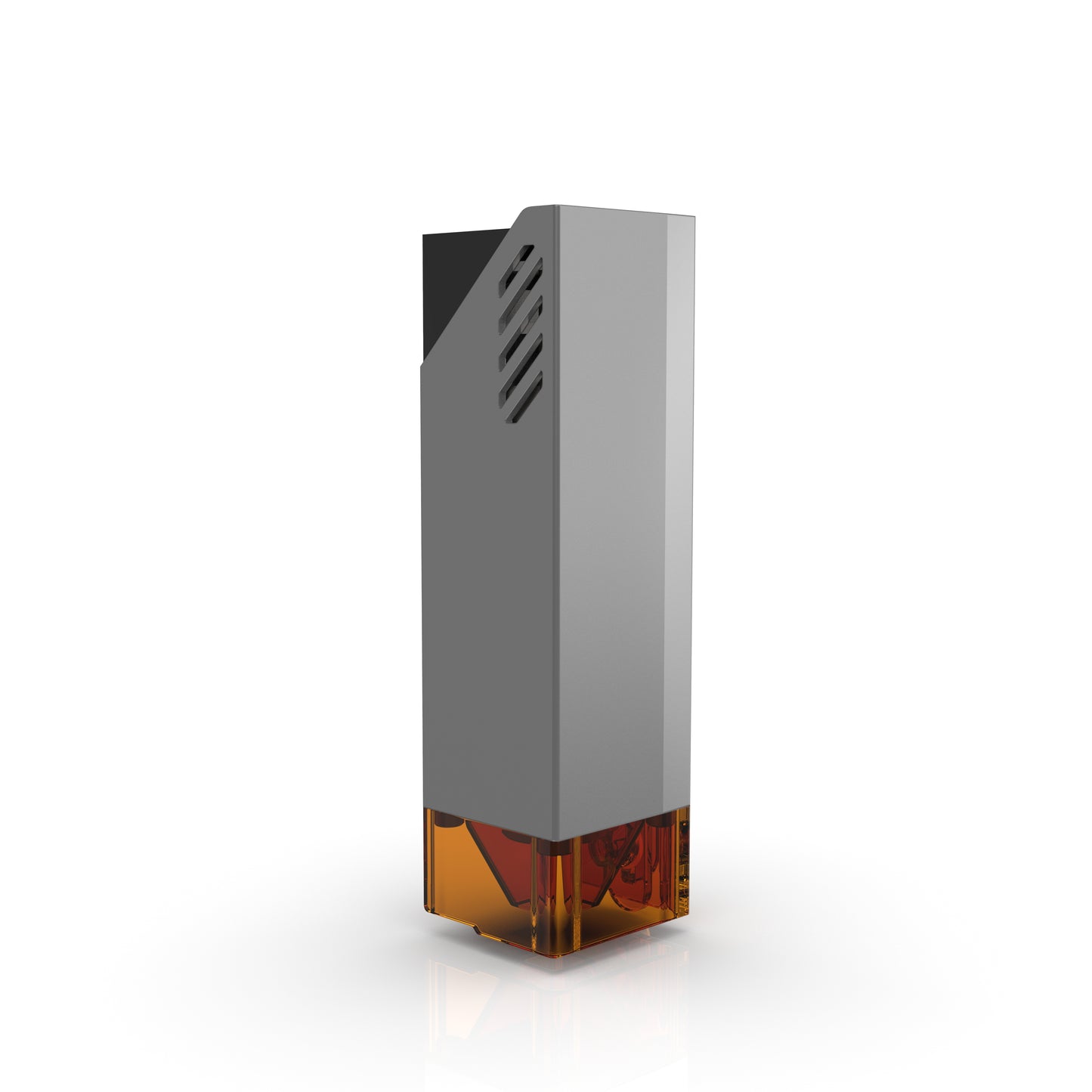

CFL55-33 5.5W Compressed FAC Laser Module for 4040 series, 3018 CNC, 3020-PRO Series CNC Router
CFL55-33 5.5W Compressed FAC Laser Module for 4040 series, 3018 CNC, 3020-PRO Series CNC Router
- 101-63-XCFL55-33
- 101-63-XCFL55-33
- 101-63-XCFL55-33
- 101-63-XCFL55-33
- 101-63-XCFL55-33
- 101-63-XCFL55-33
Couldn't load pickup availability
Intorducing

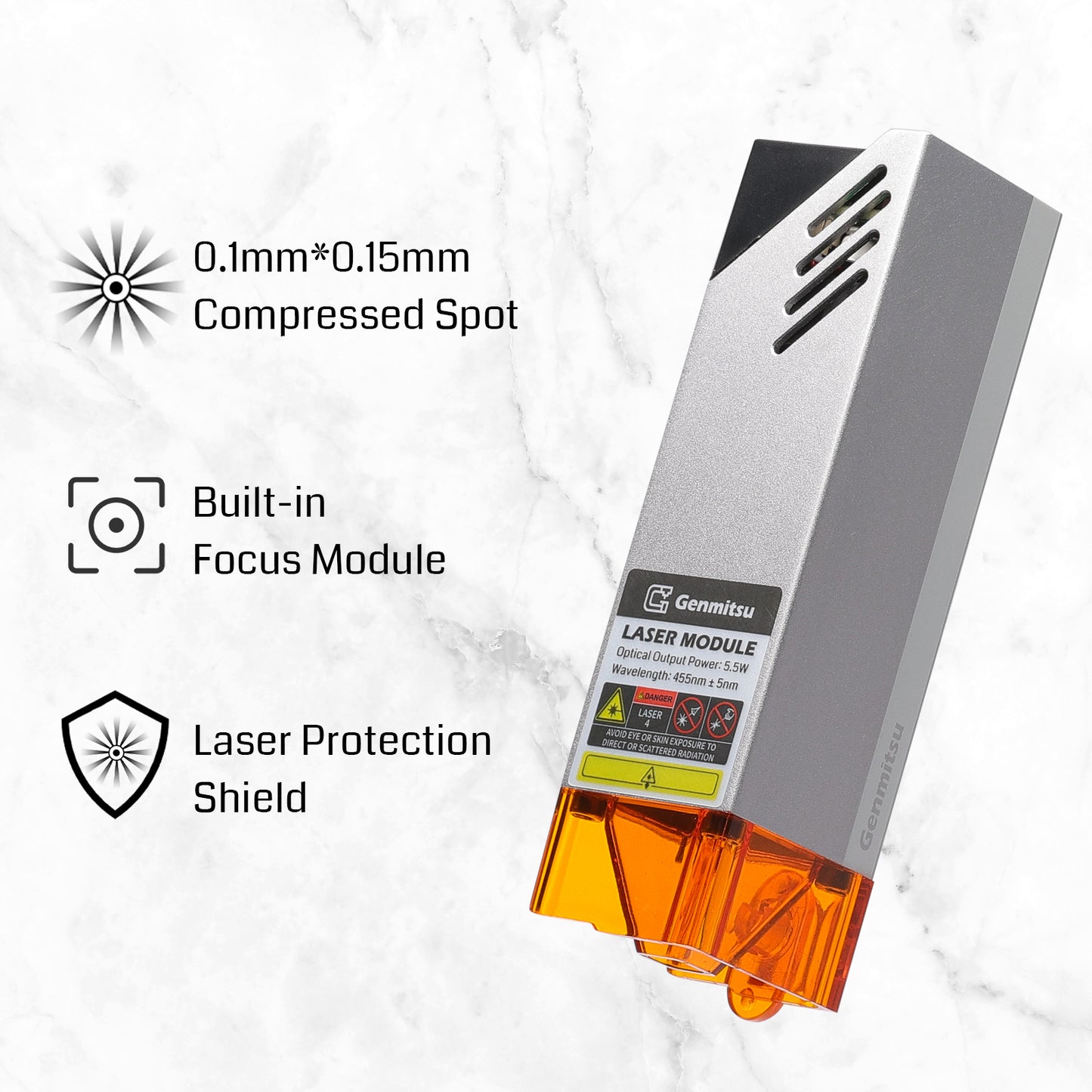

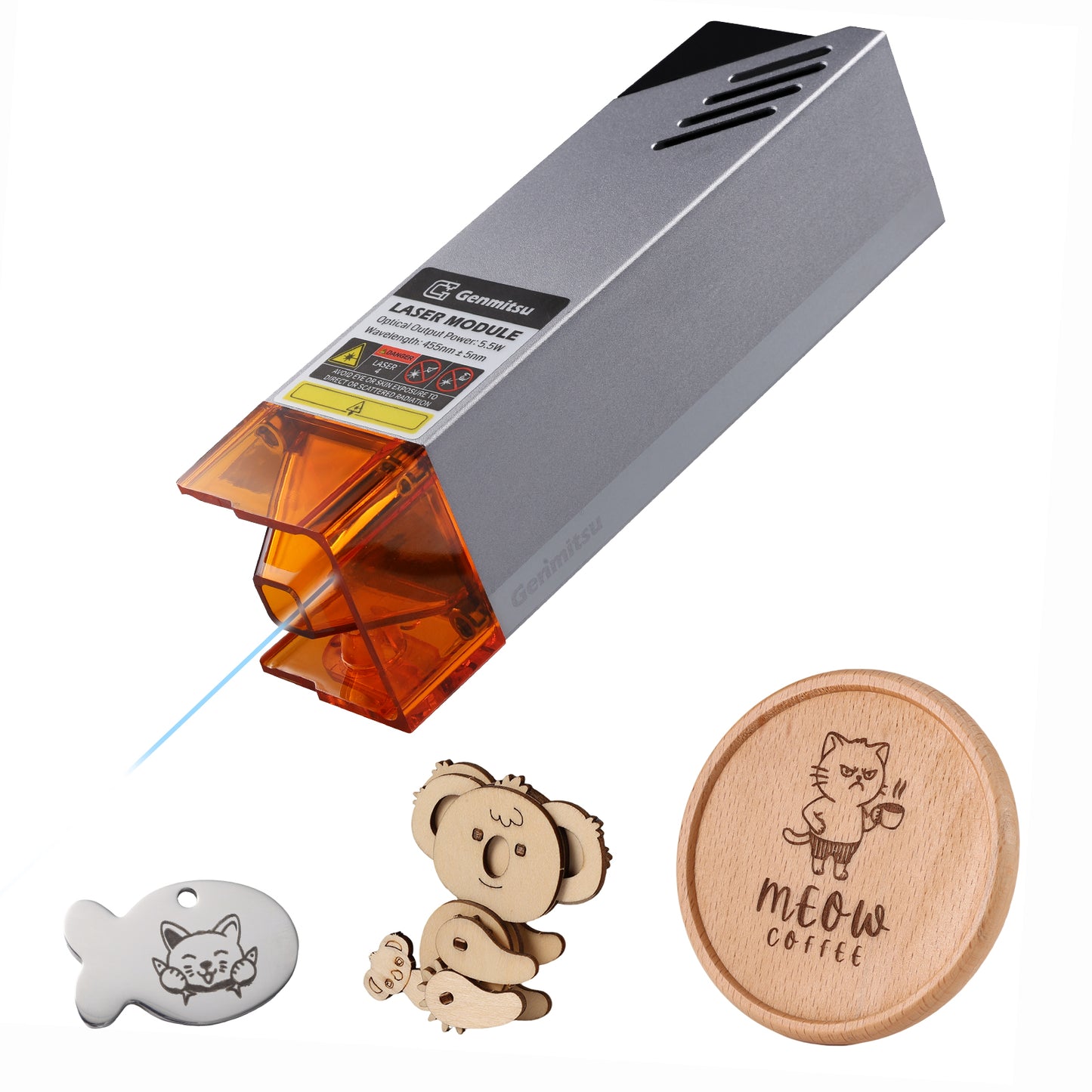

The CFL55-33 Laser Module is a cost-effective upgrade designed for creators who want high performance without the high price tag. With a built-in circuit board, this module keeps things compact and clean, making it an ideal companion for small to mid-sized CNC machines. Its lightweight design doesn’t compromise on power or usability. Easy to install with no need for an external power supply, and equipped with a focus-assist light shield, it ensures precision and safety. Fully compatible with multiple Genmitsu CNC models, it’s the perfect tool for adding laser engraving capabilities to your workshop.
Compatibility

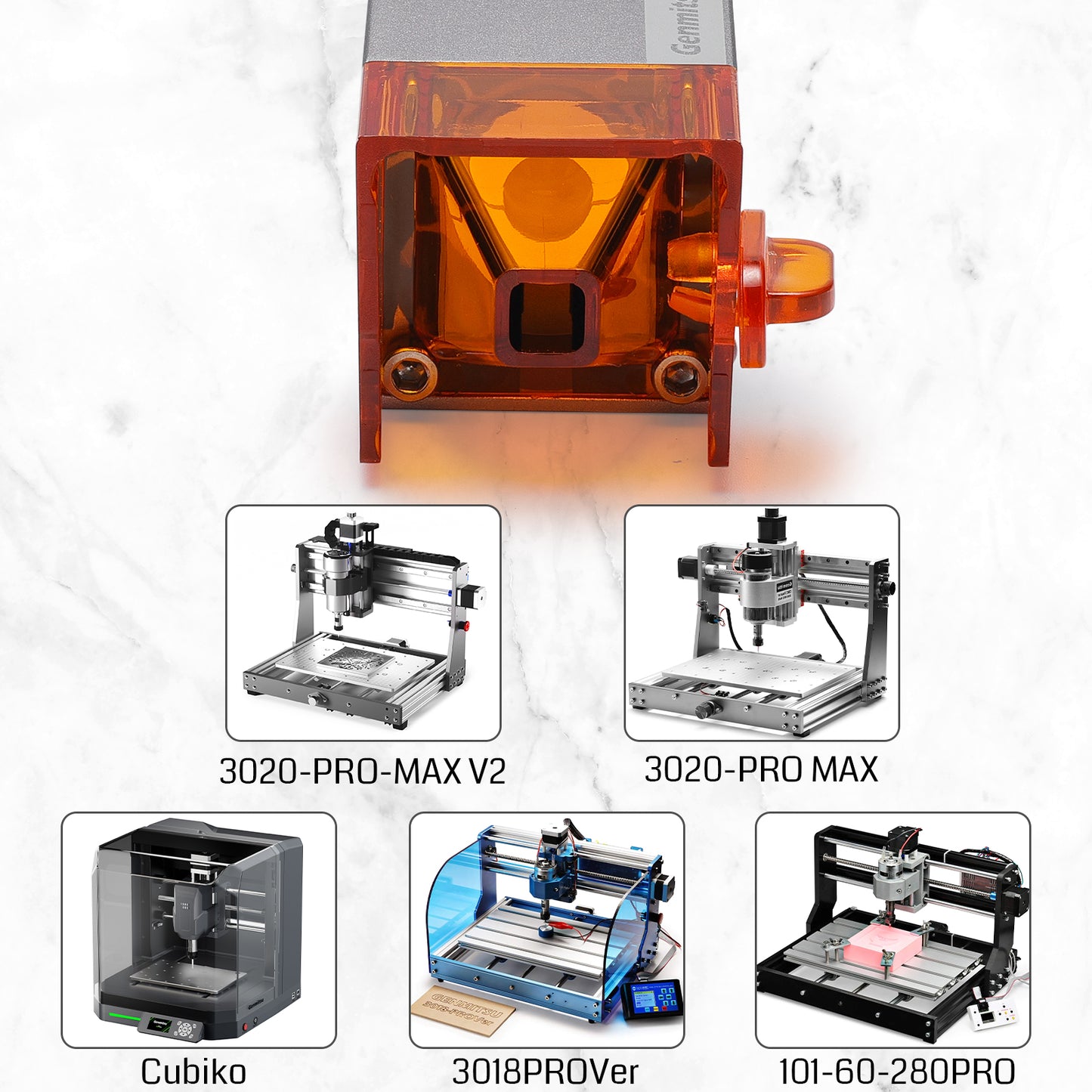

This 5.5W diode laser with a wavelength of 445nm is specially designed for use with the Genmitsu Cubiko, 3018-PROVer, 3018-PRO and 3020-PRO MAX, 4040 Sereis CNC Machines.

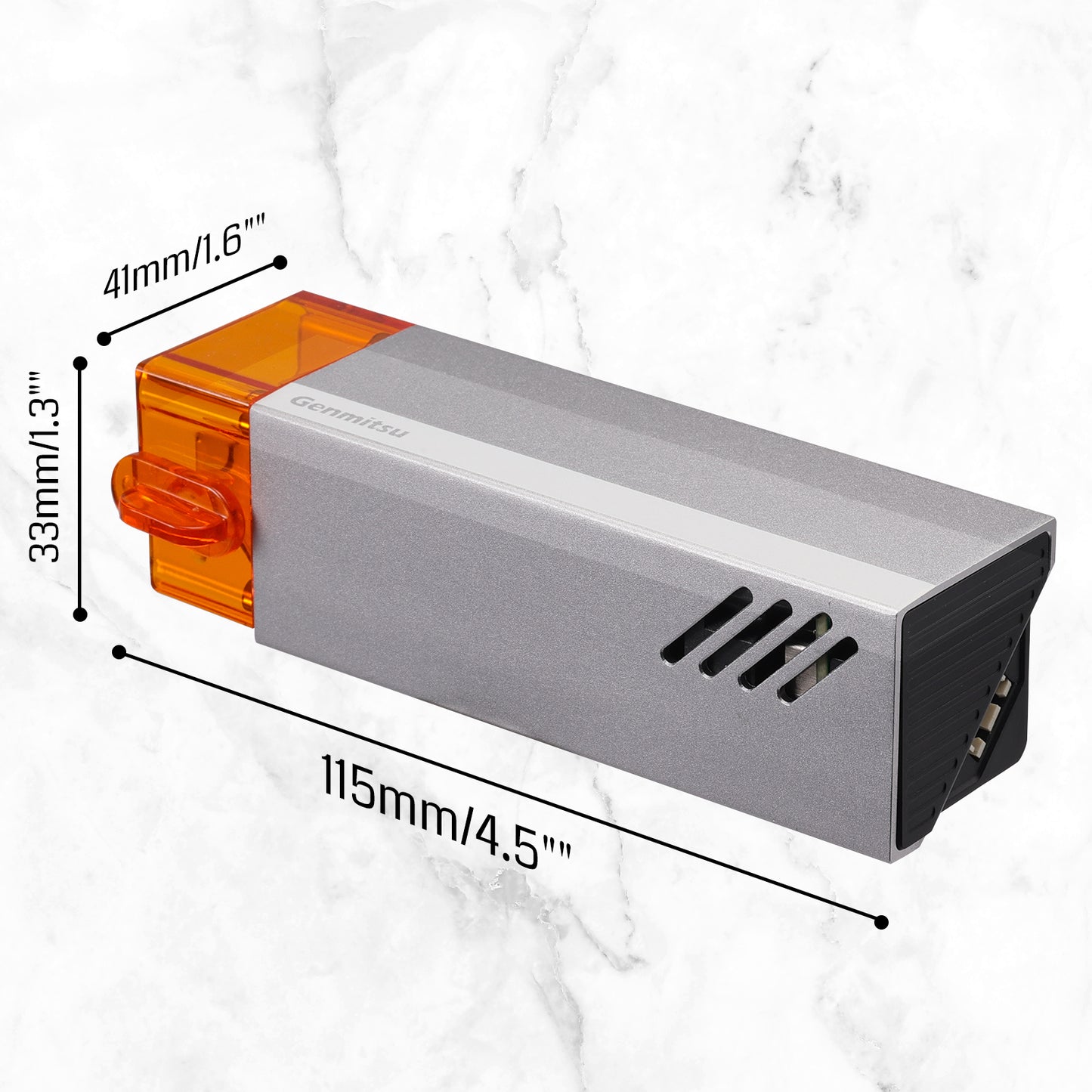

Specifications
- Laser power: 5.5W
- Spot size: 0.1 x 0.1mm
- Focal length: 30mm
- Laser wavelength: 455 ± 5nm
- Input: 12V / 2.5A
Applications
- Application: Suitable for desktop laser engravers, CNC routers, laser cutters, and 3d printers

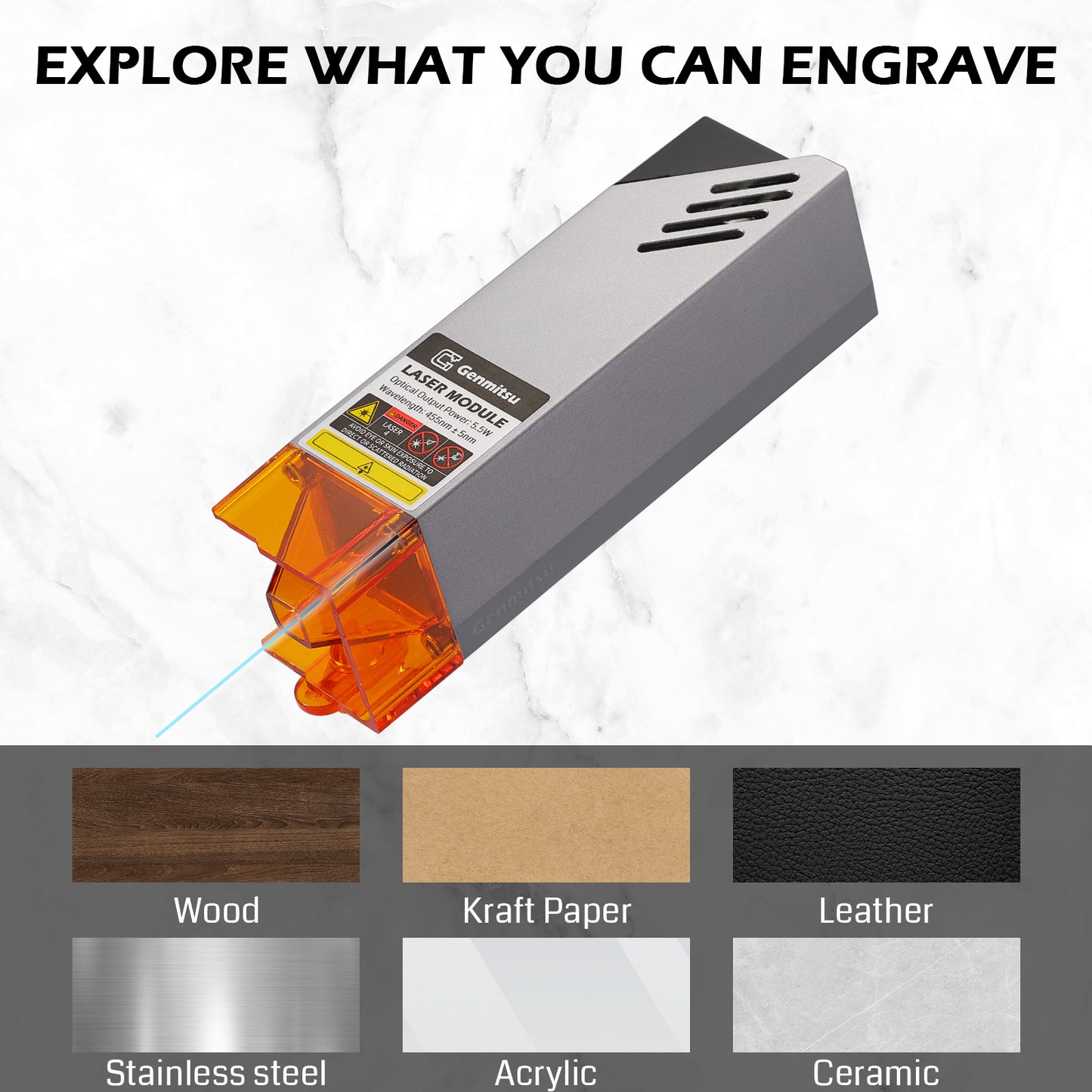

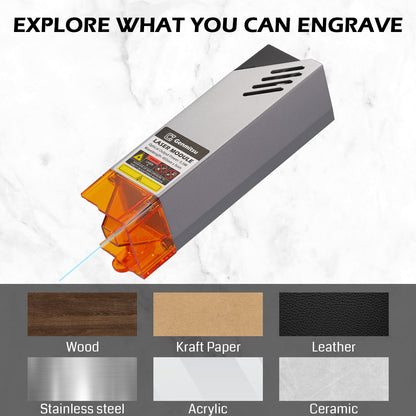

- Engravable materials: cardboard, plastic, PCB, aluminum alloy, stainless steel, black metal, etc.
- Cuttable materials: wood, acrylic, cardboard, non-woven fabric, bamboo, laser safe plastic, etc.
Performance

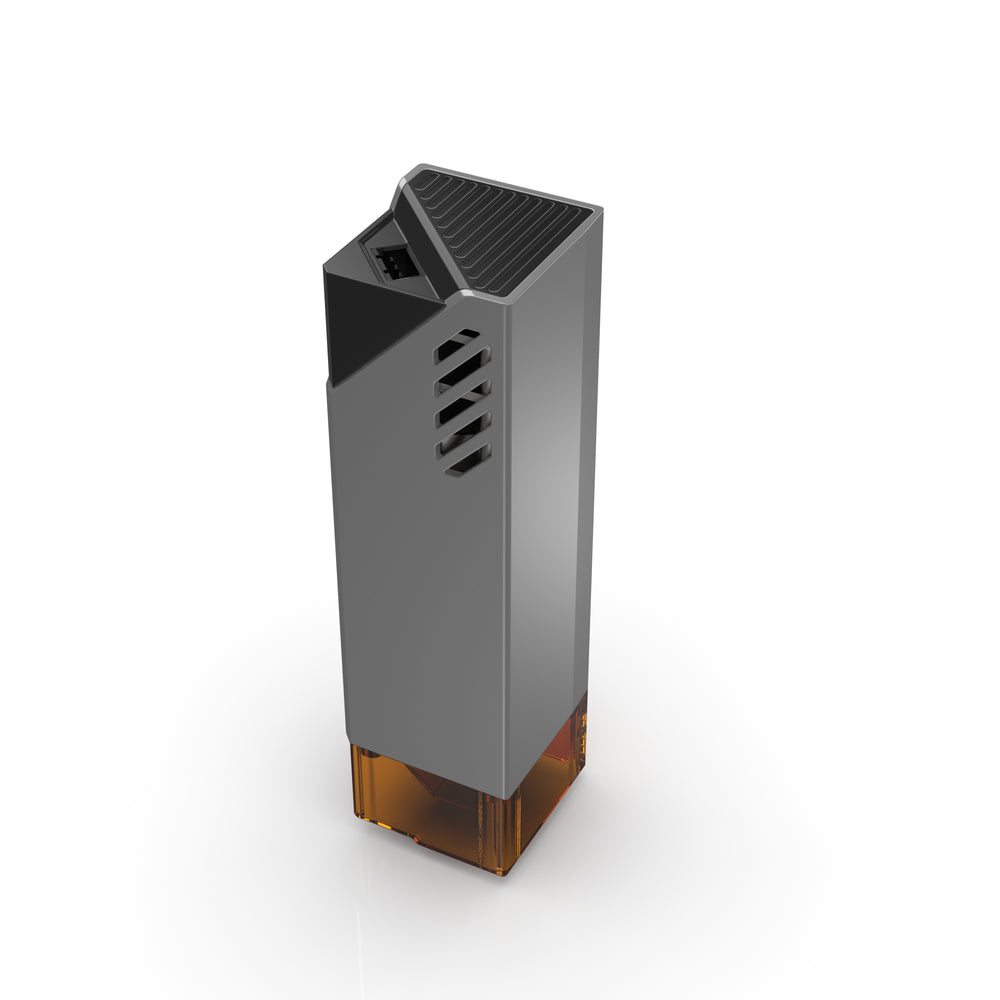

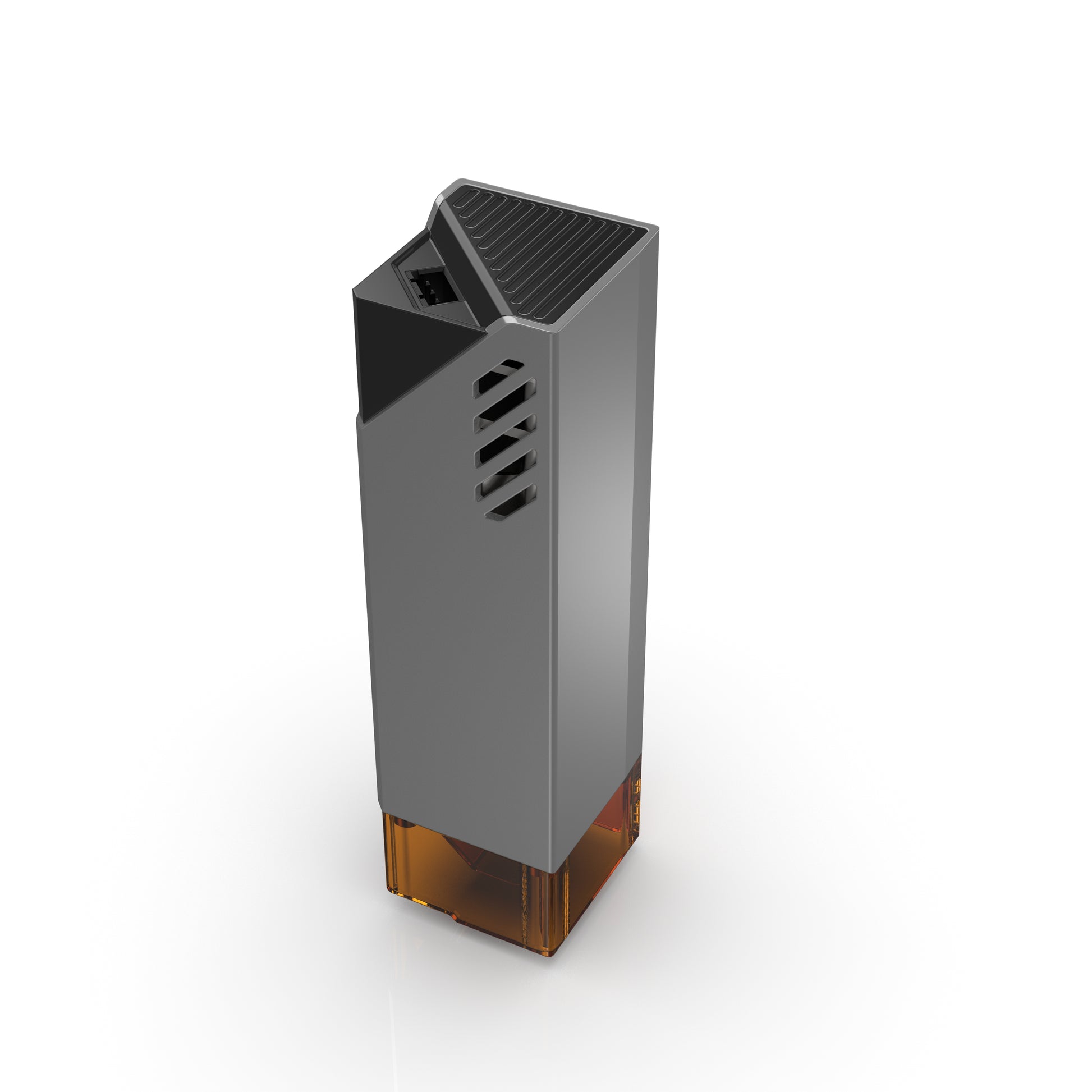

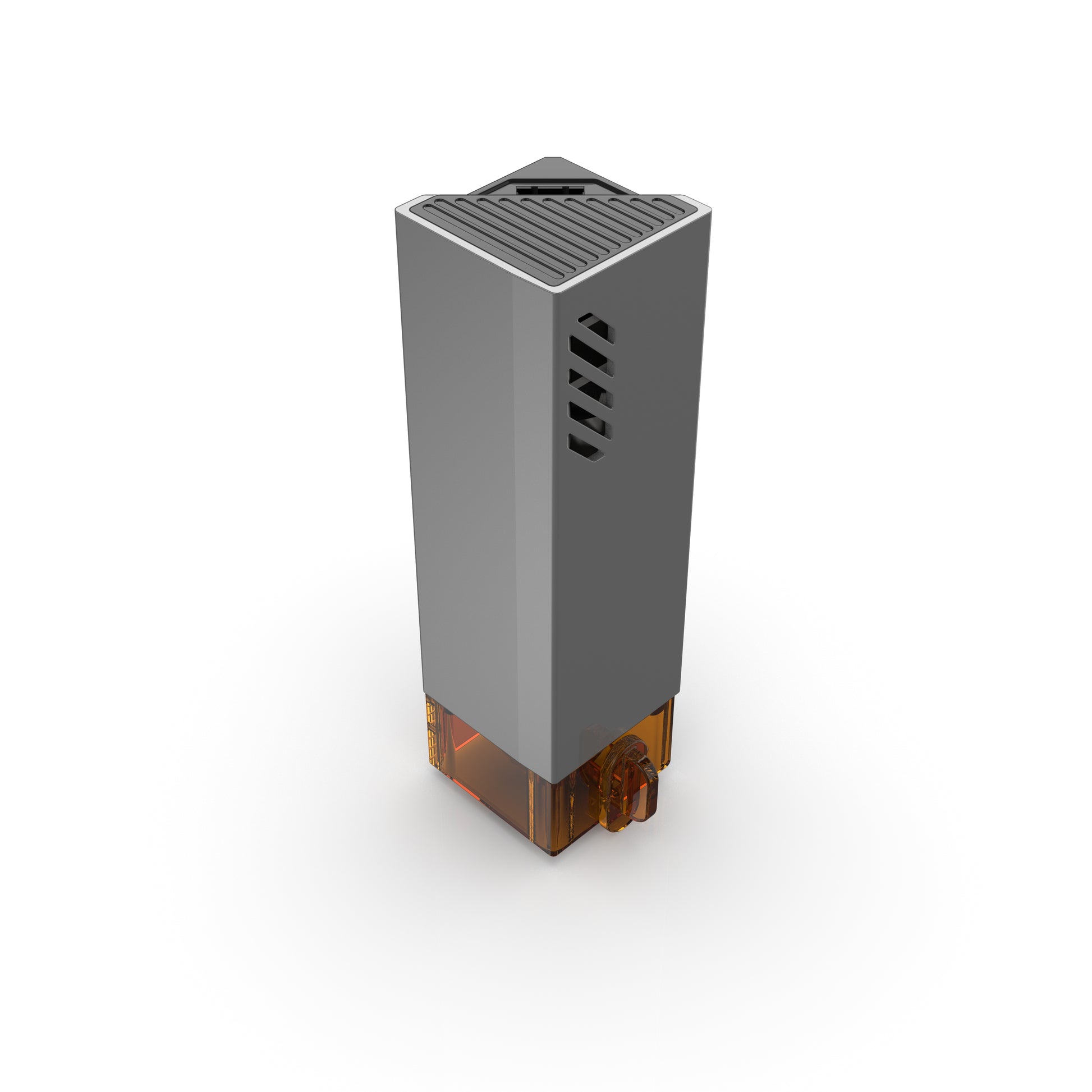

- Electrical interface: XH2.54-3 Pin terminal (three-core cable, a: PWM +, b: GND, c: 12VDC)

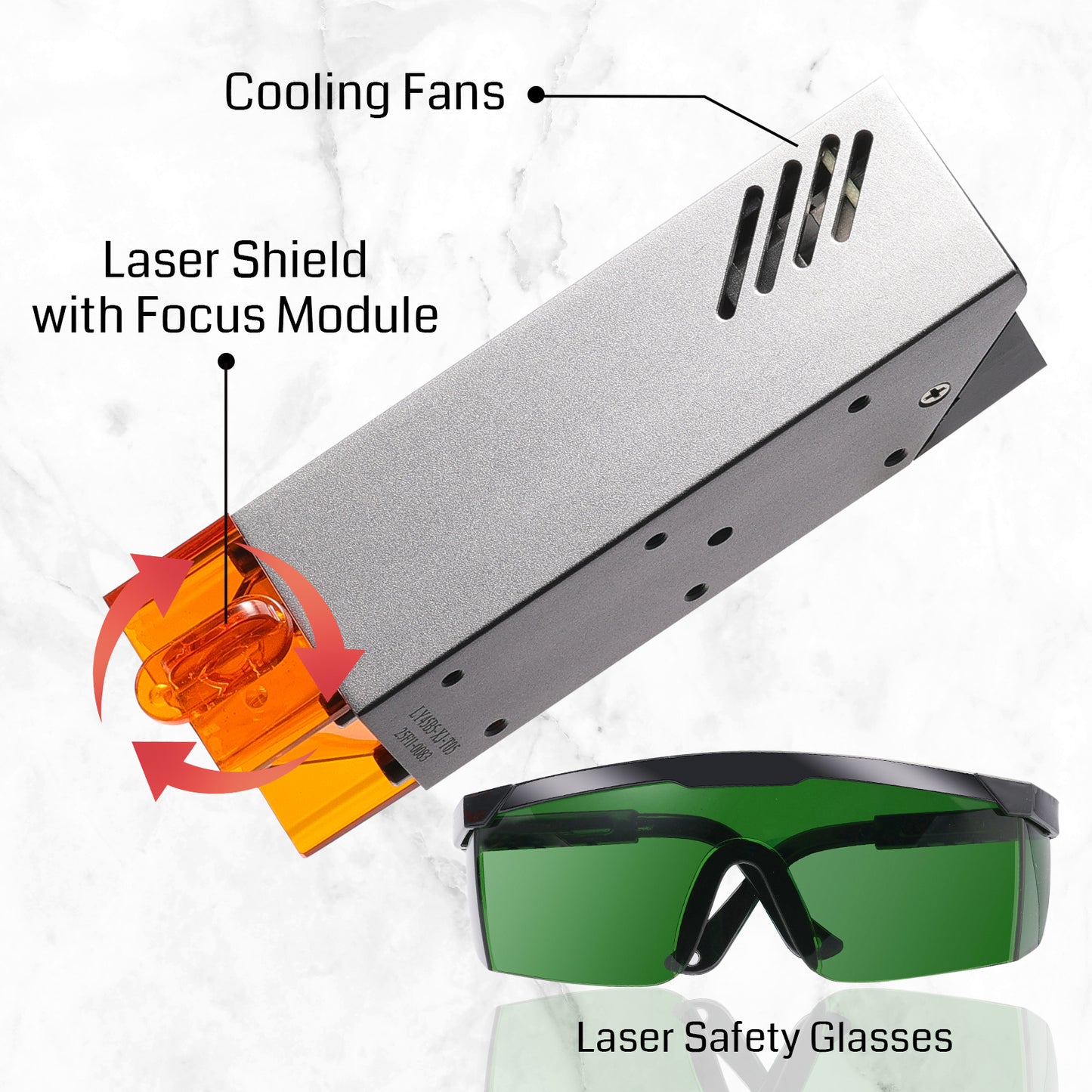

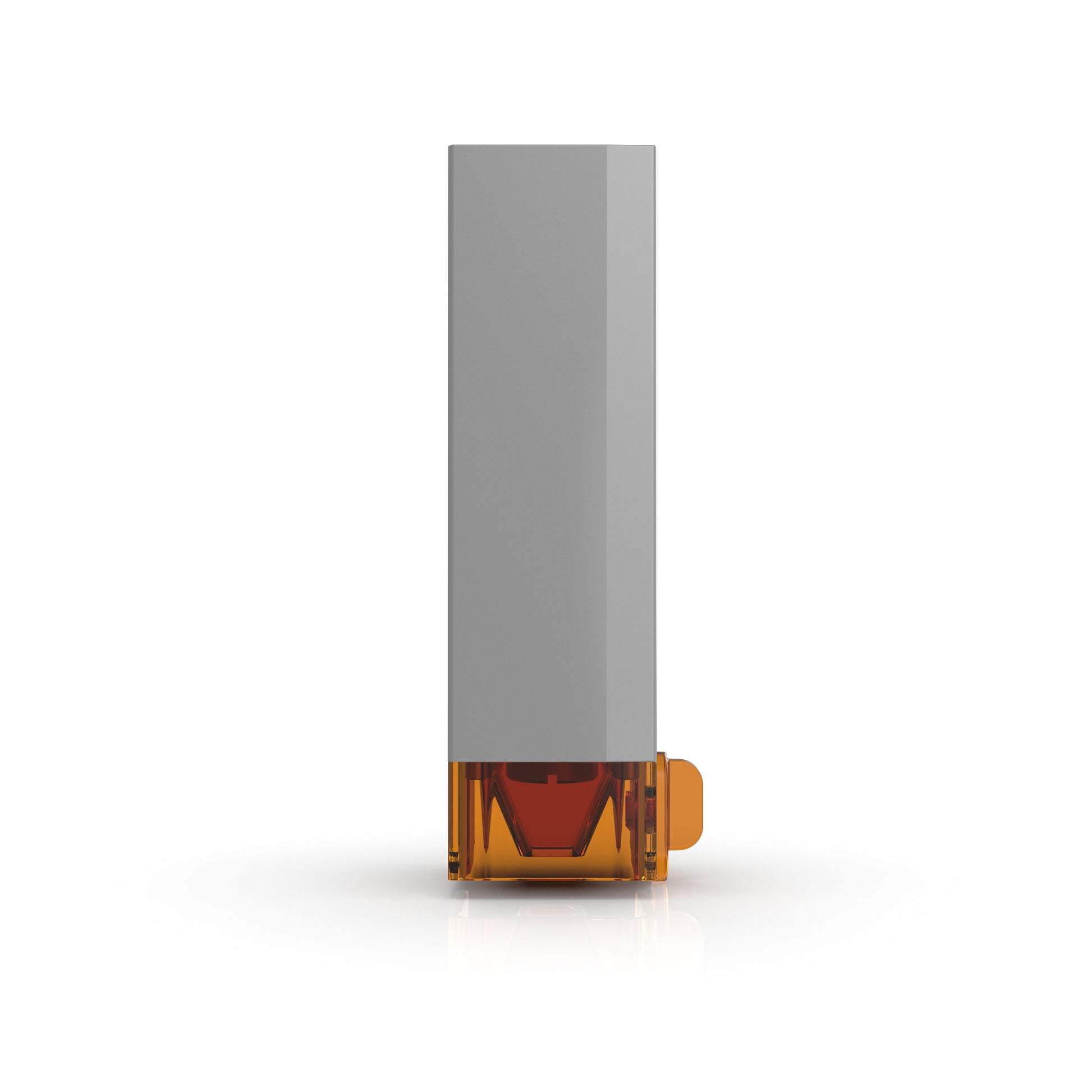

- Laser shield: A movable laser shield that effectively shields the laser beam without affecting its working position.
What's in the box
- 1 x Laser Module
- 1 x Connection Cable, Suitable for controller with 12V GND PWM terminal
- 1 x Focus Calibration Tool, 30mm
- 1 x User Manual
FAQs
About Bigger Size of Spindle Mount

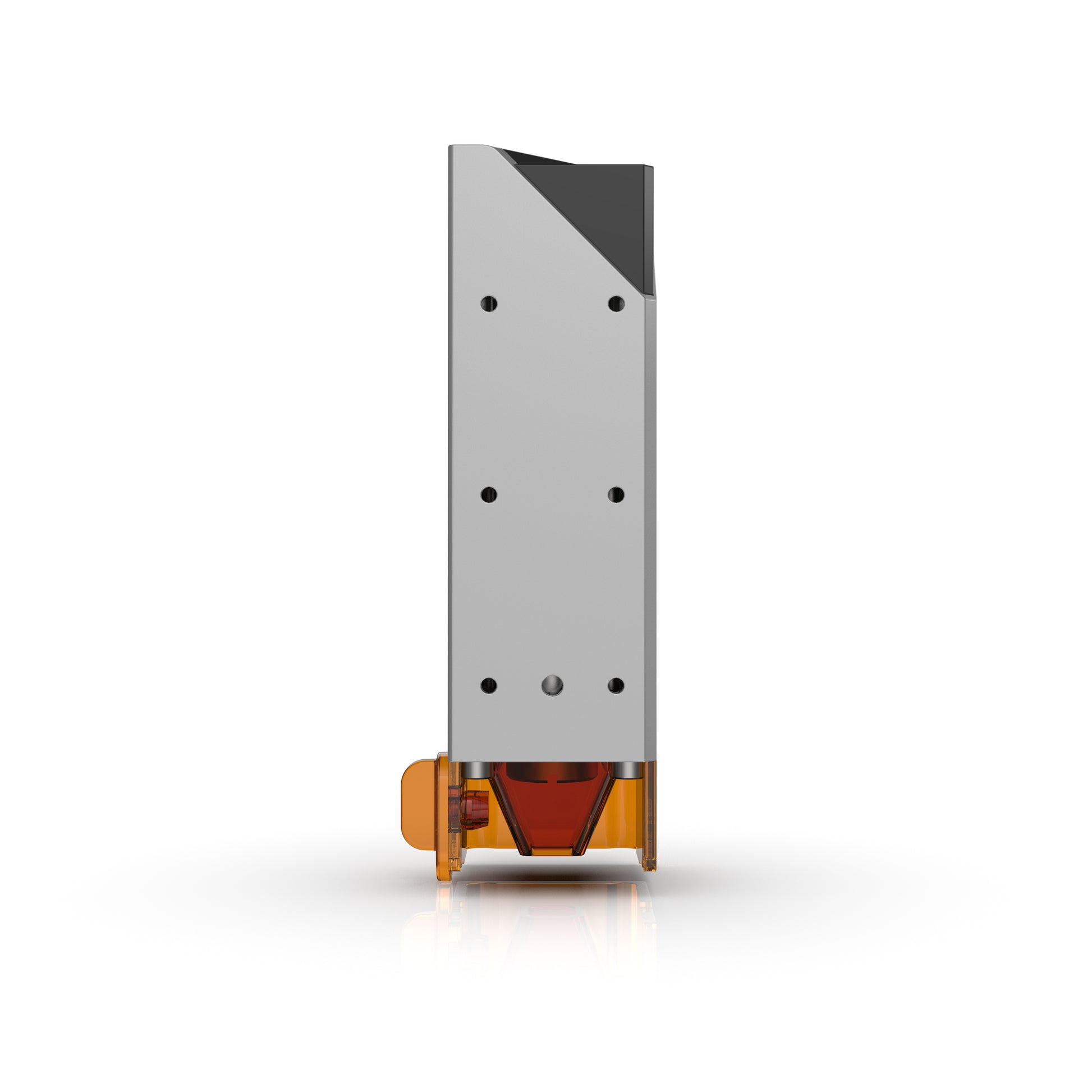

Currently, the laser module is only compatible with a 42mm spindle mount. If you need to use it with a larger spindle mount, please use the file below for 3D printing, CNC engraving.
This file includes spindle mounts for 52mm, 65mm, and 69mm sizes.
Spindle Mount Files (include DXF, STEP, SVG), click to download.
Precautions
- Please read the instructions carefully before use.
- Direct exposure to the laser beam can cause severe burns and eye damage. Ensure that you are wearing proper laser safety goggles when working in the vicinity of the laser equipment.
- Know the compatibility of the laser module and its maximum input voltage and current so as not to damage the laser.
- When engraving reflective materials such as mirror stainless steel, it is recommended to paint the material surface black with a marker before engraving, preventing laser damage and unwanted laser exposure from the reflective laser beam.
- After long hours of laser working, residue from smoke and dirt will accumulate on the laser lens, cleaning the lens regularly is needed. After working with oily materials, such as pine boards, cleaning the lens in time is necessary.
- Cleaning method: use a cotton swab dipped in alcohol to wipe the lens.
- Please use a smoke exhaust device and ensure that the room or area you are operating the laser is well-ventilated
Resource
CNC Laser Module - Engraving Parameters
| Material | Power | Speed (mm/min) | Interval (mm) |
| Kraft paper | 80% | 2000 | 0.12 |
| Plywood | 80% | 2000 | 0.10 |
| Solid wood | 80% | 2000 | 0.10 |
| Bamboo board | 80% | 2000 | 0.10 |
| Cork | 50% | 2000 | 0.10 |
| Transparent acrylic (blackened) | 30% | 2000 | 0.10 |
| Frosted glass (blackened) | 40% | 2000 | 0.10 |
| Leatder (white, blackened) | 40% | 2000 | 0.10 |
| Silicone | 70% | 2000 | 0.10 |
| Pebble | 40% | 2000 | 0.10 |
| Ceramic (blackened) | 100% | 1500 | 0.10 |
| Aluminum plate (blackened) | 40% | 2000 | 0.10 |
| Stainless steel | 100% | 1000 | 0.10 |
| White felt (blackened) | 70% | 2000 | 0.10 |
CNC Laser Module - Cutting Parameters
| Material | Power | Speed (mm/min) | Number of cuts |
| Plywood 3 mm | 100% | 200 | 1 |
| Plywood 5 mm | 100% | 100 | 1 |
| Plywood 8 mm | 100% | 150 | 6 |
| Plywood 10 mm | 100% | 80 | 10 |
| Solid wood 5 mm | 100% | 80 | 3 |
| Solid wood 12 mm | 100% | 80 | 4 |
| Black acrylic 10 mm | 100% | 80 | 12 |
| Black acrylic 15 mm | 100% | 80 | 15 |
| Felt (blackened) 3.5 mm | 100% | 80 | 20 |
| Leatder 1 mm | 100% | 800 | 1 |
| Medium-density fiberboard (MDF) 4.3 mm | 100% | 150 | 6 |
