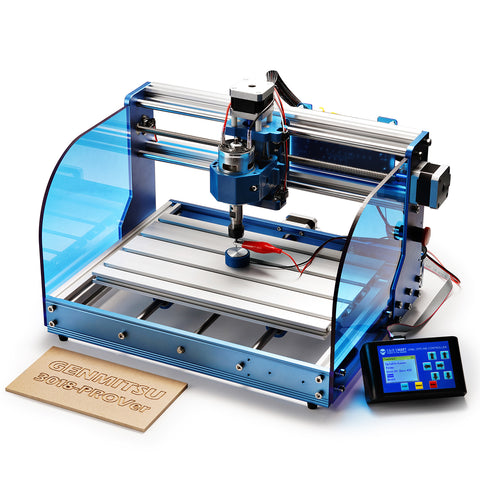

The 3018-PROVer is the latest version of the 3018 Desktop CNC DIY Kit Series. Now Pre-assembled and no fuss with assembly taking less than 15 minutes out of the box.
The 1.8” display will clearly display readouts and provide manual control of your mill without any computer. If a project gets out of hand the PROVer has an emergency stop control that is very visible and easy to access for an immediate shutdown of your machine.
Make more with the all-aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.
Still based on open-source Grbl v1.1 the PROVer has stepped up to more powerful but silent Toshiba TB6S109 drivers with added life and performance along with added Optocouplers to protect your mainboard from hard stops without risk of damage and eliminate signal noise for more consistent projects and longevity.

*Join SainSmart Genmitsu CNC Router Facebook Group.

View full details

Built to suit your needs

Genmitsu 3018-PROVer is the successor to the 3018-PRO, and the new version has brought improvements to many parts, including the excellent design and safety features, pre-assembly, upgraded mainboard, etc.
Whether you’re a CNC beginner, a hobbyist or a small business owner looking for an enterprise quality for commercial purposes, this is an excellent choice.

Join SainSmart Genmitsu CNC Router Facebook Group

Efficient Pre-Assembly

The 3018-PROVer is the newest addition to the Genmitsu CNC 3018 series family. This pre-assembled desktop CNC machine allows you to be up and running in 15 minutes instead of 2 hours, making it no challenge for beginners.

Genmitsu 3018-PROVer CNC Router | SainSmart

High Quality

Boasts an all-aluminum body with an oxide blue look, the 3018 PROVer gives you a premium look and feel for your machine.

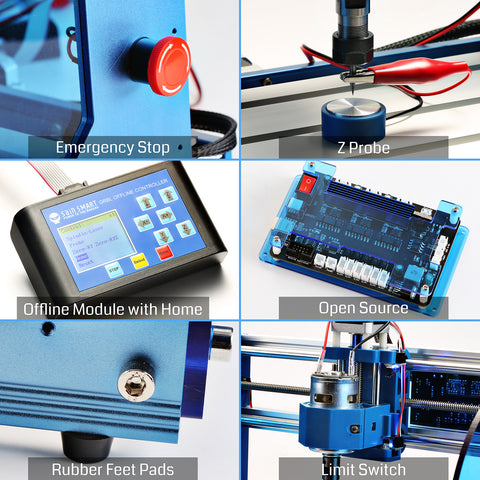

Safety Design

The 5mm acrylic baffles can block the 'flying' pieces of wood/other cutaway materials so that you can safely monitor the engraving process. The machine also comes with Emergency Stop & Limit Switch.

Offline Controller With 1.8" TFT LCD Display

This machine comes standard with a newly designed offline controller with 1.8" display so you can view readouts clearly and control the CNC router without connecting to a computer.

Laser Module Available

If you are an experienced CNC engraving enthusiast looking for an upgrade, you can add the matching SainSmart laser module kit to the machine. With this module, it can absolutely give you different ways to unleash your creativity.

Compatible Accessories

Vacuum Table

GS-775MR Spindle

KABA CNC Enclosure

Spindle Holder

Hold Down Clamp

Dust Shoe

Resin Wood

Spoilboard

Specifications

Specification
Effective Engraving Area	260 x 155 x 35mm(10.2 x 6.1 x 1.4”)

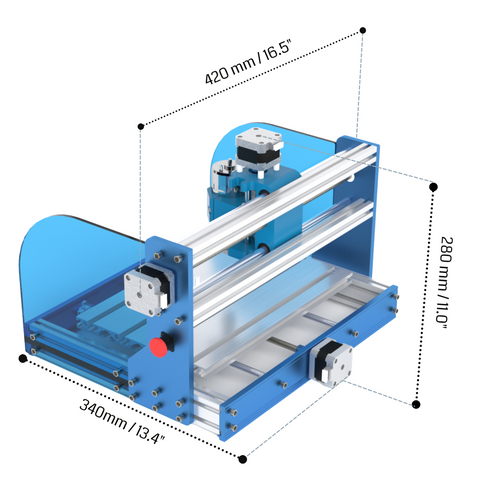

Frame Size	420 x 340 x 280mm(16.5 x 13.4 x 11.0”)
Frame Material	Aluminum
Z-Axis Component Material	ABS
Spindle	775 motor, 12V~24V, 10000 RPM;
Rated power	60W, Max 120W
Step Motor	1.3 A, 12V, 0.25 Nm torque (2.2 in-lb)

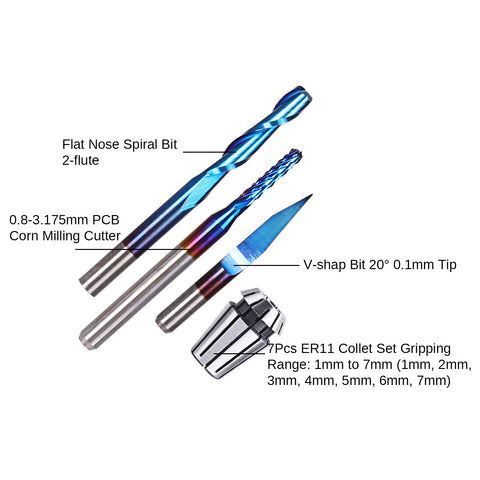

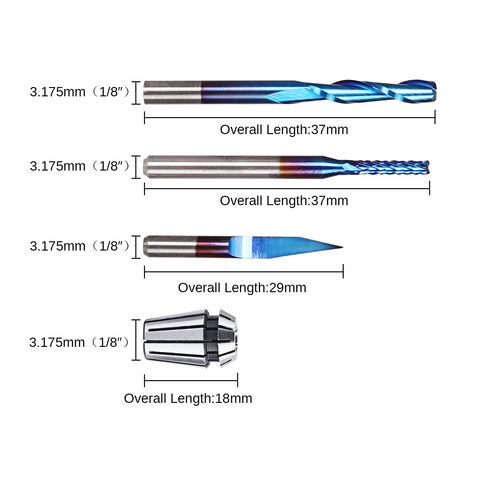

Drill Bits	Tip 0.1 mm, 20 degrees, Diameter 3.175 mm
Supported OS	Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10, Linux, Mac OS
Software	Grbl control(Candle)
Power Supply	24V/4A, with CE, FCC & PSE certifications
Perfect for	Hobbyists, Crafters, Woodworkers, Industrial Designers, Educators, Engineers, Jewelers and more!

What's included
Standard Kit	Laser Machine Special Bundle Kit
1x 3018-PROVer CNC Router Machine (Some parts need to be assembled)	✔Included Hardware (over $533 value) Genmitsu CNC Router 3018-PROVer ($349 value)
1 x Offline Control Module	Genmitsu Offline Controller ($25 value)
1 x Tools Box	Blue-Violet Light Fixed Focus Laser Module ($159 value)
1 x Screw/ Nut Accessories Box	✔Included Software ($85 value)
1 x 3-Month Carveco Maker Subscription	3-Month Carveco Maker Subscription ($45 Value)
	LightBurn GCode License Key ($40 value)

Resource
⏬ User Manual	⏬ Assembly Video
⏬ Driver for Windows	⏬ Driver for Mac OS
🔴 Youtube Test and Review Video	🔴 How to Design & Cut with Easel
🔴 PROVer Master Document

Software Links

LaserGRBL

The best free GCode sender for DIY Laser Engraver. LaserGRBL is able to load and stream GCode path to arduino, as well engrave images, pictures and logo with internal conversion tool. Can click here to buy a laser module.

LightBurn

is a premium version of LaserGRBL which allows you powerful tools for editing, adjusting the layout and controlling your laser. LightBurn is a native application written for Windows, Mac OS, and Linux. Can click here to buy the LightBurn GCode License Key.

Easel

is the all-in-one software solution for 3D carving machines. Designed by Inventables, Easel is the easiest way to get started in the world of 3D carving.

Fusion 360

Integrated CAD, CAM, & CAE software for everyone. Animation. Access Anywhere. Easy Collaboration. Try It Free. Integrated Design Tools. Next-Gen 3D CAD/CAM. Fabrication.

Upgrade Your 3018 To 3040

This 3040 Extension kit will extend your CNC’s Y-Axis to have 370mm of movement (14.6”), 320mm of travel, easily convert your 3018 to a 3040. Perfectly compatible with Genmitsu 3018-PRO, 3018-PROVer, 3018-PROVer Mach3 CNC’s. (∅10mm lead screw)

It is designed to be a direct upgrade to the 3018 series CNC machines. The enlarged 3040 MDF Spoilboard and 3040 Aluminum Spoilboard are available now.

Which CNC is right for you?

3018-PRO

SHOP NOW

300 x 180 x 45mm

11.8 x 7.1 x 1.8in

Working Area

＜2h

Assembly Time

Bakelite & Aluminum

Frame

V-slot Linear Rails

Structure

T-track

Spoilboard

DRV8825

Driver Chip

775motor 9kRPM

Spindle Motor

1.3A

Stepper Motor

3018-PROVer

SHOP NOW

300 x 180 x 45mm

11.8 x 7.1 x 1.8in

Working Area

＜1h

Assembly Time

All Aluminum

Frame

V-slot Linear Rails

Structure

T-track

Spoilboard

TB67S109

Driver Chip

775motor 10kRPM

Spindle Motor

1.3A

Stepper Motor

3020-PRO MAX^NEW

SHOP NOW

300 x 200 x 72mm

11.81 x 7.87 x 2.83in

Working Area

15-30min

Assembly Time

Aluminum and Steel

Frame

Dual Steel X Axis Guide Rails

Structure

Scale Grid

Spoilboard

A4988

Driver Chip

300W 12kRPM

Spindle Motor

XY-1.5A
Z-1.8A

Stepper Motor

PROVerXL 4030

SHOP NOW

400 x 300 x 110mm

15.75 x 11.81 x 4.33in

Working Area

＜1h

Assembly Time

All Aluminum

Frame

C Beam Structure & Linear Rails

Structure

MDF

Spoilboard

TB6560

Driver Chip

300W 12kRPM

Spindle Motor

2Phase 3A

Stepper Motor
